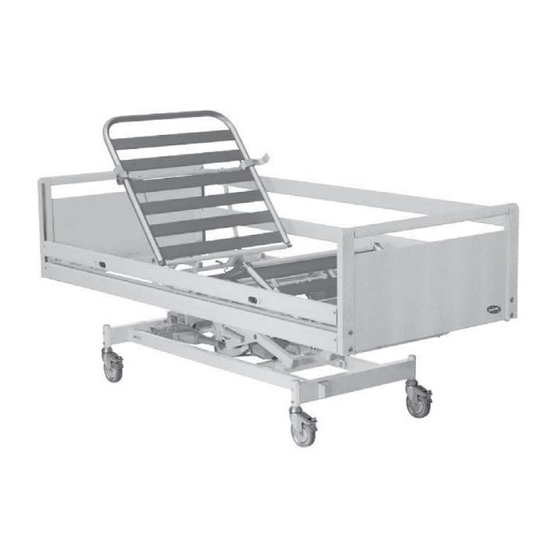

- Page 1 Invacare®ScanBed 750 User Manual...
-
Page 2: Quality Declaration
Identification label and QA-mark are located on the bed confirming that the finished goods control has approved the bed. Please read the entire user’s manual before using the bed. Invacare®EC-Høng A/S is certified according to ISO 9001 and ISO 13485. For and on behalf of Invacare®EC-Høng A/S: Brian Mundeling... - Page 3 Il vostro nuovo letto è marcato CE - ai sensi della Direttiva 93/42/EEC relativa ai dispositivi medici. Il letto è stato progettato e costruito con un occhio di riguardo per gli utilizzatori e per i loro assistenti. Invacare®ScanBed 750 è stato realizzato nel rispetto della Normativa Europea EN 1970.
-
Page 4: Table Of Contents
Table of contents User part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 General information . -
Page 5: User Part
The unique backrest return of the bed provides the patient with excellent comfort and the carer with ideal conditions for an ergonomically correct working position. In order to optimise the patient’s comfort, Invacare® EC-Høng A/S recommends using a 12-cm mattress. 1 . General information The SB750 bed fulfils all requirements regarding maximum distances. -
Page 6: Operation Of The Sb750 Tm
2 . Operation of the SB750 The bed can be equipped with this type of hand control (Soft Control): Height adjustment of the bed UP/DOWN Sitting position, irrespective of present position Horizontal mattress support, irrespective of present position “Out of bed button”- Raises the backrest and brings the thigh section to horizontal Raises the thigh section and brings the backrest to horizontal... - Page 7 Set-off from the castors might under special conditions appear at different types of absorbing floor covering - including untreated or badly treated floors. In matters of doubt, Invacare® recommends to place a suitable kind of protection between the castors and the floor.
- Page 8 Operating the BRITT II/III/IV wooden side rail Locking pins The bed end may be equipped to lock the side rail at half height as well as in the top position. Normally the side rail can only be locked in top position. Up: Pull up the top wooden side rail bar, until the locking pin locks with an audible click.
-
Page 9: Technical Part
The hand control, control unit and motors are protected according to IP 66. A lock cam must be used on the control unit - if not, Invacare®EC-Høng cannot guarantee the IP protection. Electromagnetic interference between the bed and other electrical products can occur. -
Page 10: Receiving The Sb750 Tm
4 . Receiving the SB750 To avoid condensation, the bed should not be used until it has reached a temperature of 10-50° C. Check whether the bed shows any signs of damage. If the bed is damaged, see terms of delivery. If the bed has been delivered in parts, it must be assembled. - Page 11 Parts of a standard bed Allen key Backrest Seat section 24 V motor, leg section or gas spring, leg section Thigh section 24 V motor, thigh section Leg section Top frame, foot end Brake pedal for beds provided with central brake 10.
-
Page 12: Fitting The Accessories
5 . Fitting the accessories The tools necessary for mounting/dismounting the accessories of the SB750 are an Allen key and an adjustable wrench. The Allen key is kept on the inside of the cross bar at the head end of the top frame. The Allen key is used for mounting/dismounting all fittings. - Page 13 Mounting the BRITT II/III/IV side rail Raise the bed about 1/3. Remove the protective tape from the locking pins at the ends of the side rail. Mount one end at a time. Lift the lower wooden bar and guide the metal bow to the bed end rail (A).
-
Page 14: Disassembly/Assembly Of The Sb750 Tm
6 . Disassembly/assembly of the SB750 Disassembly Make sure that the castors have the brakes on. Dismount all accessories. Run the bed to the marked height level so that the cams on the base frame’s guide way and the shear arms are opposite each other. Disconnect the power supply. - Page 15 Assembly Make sure that the castors have their brakes on. Connect the base frame to the mains. Run the bed to the marked height level so that the cams (see picture 3, page 15) on the base frame’s guide way and the shear arms are opposite each other. Lift the foot end of the top frame so that the two 2 lock fittings/snap locks fit onto the pins on the shearing arms.
-
Page 16: Wiring
7 . Wiring The wires are mounted from the bottom and through the case of the shaft end of the motor. Guide the wires under the lamellas. Mount the wires through the cable bow and further to the control unit. These photos show a bed with 2 motors for the mattress support. - Page 17 ACP Box (optional) The hand control can be locked by activating the switch on the ACP box located in the head end of the bed. To check if the locking function has been activated, depress a button on the hand control. Open Locked Removal of...
-
Page 18: Order Numbers For Accessories
ODA (beech / U-profiles) ......90 cm ....... .016609.01 Bed ends are available in other versions than the above mentioned - contact Invacare®... - Page 19 Article Dimensions Order no .: DRIP Drip rod ................50.60030.D0 Drip rod (for mounting in lifting pole tube) .
-
Page 20: Maintenance And Check-Ups
The accumulator box is provided with vents to ensure adequate ventilation of the box. The vents must not be blocked or covered, as this may result in pressure built-up and the risk of explosion. Waste disposal Old accumulators may be returned to Invacare , alternatively they are disposed of like car batteries. ®... -
Page 21: Maintenance Chart
Accessories checked. A service contract can be made in the countries, where Invacare® has its own sales company. In certain countries Invacare® offers courses in service and maintenance of the SB750 Spare parts lists and additional user manuals are available from Invacare®. -
Page 22: Trouble-Shooting The Electrical System
12 . Trouble-shooting the electrical system Note! Make sure that the mains are connected. Motor plug not connected Sounds from the relay Defective motor No motor sound Defective control Motor does not unit No relay sounds Defective hand control Piston rod does Motor sounds Defective motor not move... -
Page 23: Cleaning
W x L 85x200 All measurements are stated in cm. All angles are stated 90x200 in degrees. All measurements and angles are stated without tolerances. Invacare® reserves the right to change 85x183 the stated measurements and angles without warning. 90x183 105x200... -
Page 24: Electrical Data
16 . Electrical data Voltage supply: 230 V AC/50 Hz. Max. current input: 1,5 A. Intermittent (periodic use of motors): 10% max. 6 min/h. Max. accumulator capacity: 1,2 Ah. Protection class: IP 66. Output: 70 VA. Sound level: 48 dB (A). Double insulated, class II, type B. -
Page 25: Weight
17 . Weight Measurement 85x200 105x200 120x200 Weight 90x200 Top frame, head, with mattress support 25 kg 34 kg 36 kg Top frame, foot, with mattress support 25 kg 36 kg 39 kg Base frame 40 kg 40 kg 42 kg Complete bed, excluding accessories 90 kg 110 kg... - Page 26 Sweden & Finland Netherlands Italy INVACARE AB INVACARE BV. INVACARE Mecc San s.r.l Fagerstagatan 9 / Box 66 Celsiusstraat 46 Via dei Pini 62 S-163 91 Spånga NL-6716 BZ Ede I-36016 Thiene (VI) Phone: +46 8 761 70 90...
