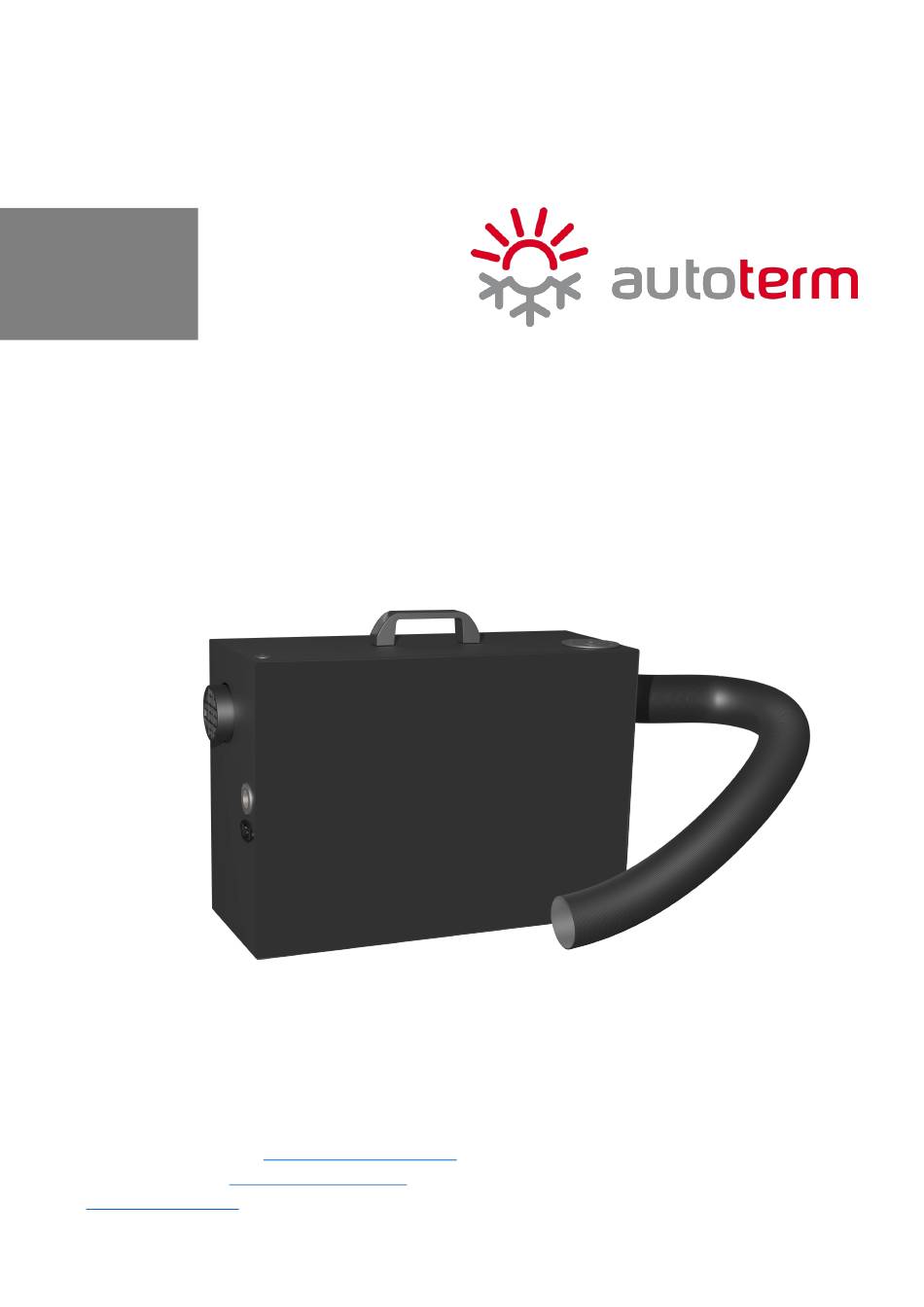

- Page 1 User’s manual for AUTOTERM Travel Box 2.0 Representative office of manufacturer: AUTOTERM LLC Paleju 72, Marupe, Latvia, LV-2167 Warranty Department warranty@autoterm.com Technical Support service@autoterm.com www.autoterm.com v01.2023...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..........................3 IMPORTANT BEFORE USSAGE......................4 USAGE............................. 7 FEATURES............................8 WORKMODES..........................8 ERROR CODES..........................9 TECHNICAL DATA SHEET........................ 11... -
Page 3: Introduction

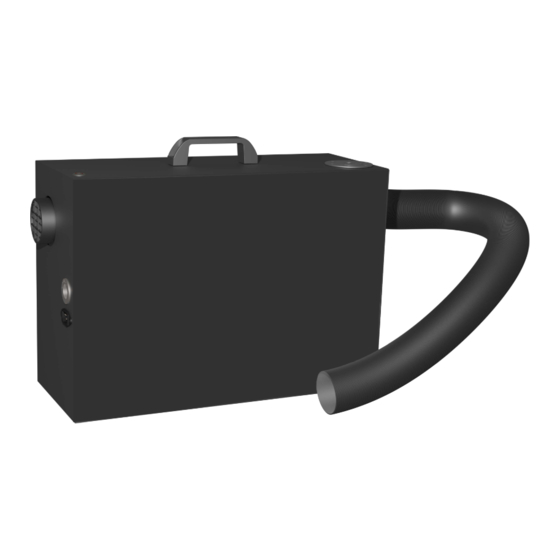

Introduction The travel heater is a completely self-sustained hot air-delivering unit for outdoor usage only. It has a fuel tank to ensure a minimum operation time of up to 9 hours (depending on the power level and heating mode used). For example, it can be used for camping to heat tents, or in construction shelters or trailers, as well it can be used as emergency heating if the regular heating source had a failure. -
Page 4: Important Before Ussage
Important Before Usage! Before using the heater, remove the cover by unscrewing 8 bolts with a 2.5mm hex key that comes attached to the handle. When the cover is removed take out all accessories, which have been packed inside the travel heater. - Page 5 After removing all accessories, insert the fuse from the middle socket (blank one) to the right empty socket to power up the heater. NOTE! The fuse is removed by following the freight transportation company's requirements for safe transportation of goods. Connect the heater to 220V to charge the battery, and fill in diesel fuel into the fuel tank.
- Page 6 The exhaust pipe can be mounted directly to the travel heater exhaust pipe. We recommend using the exhaust pipe when fresh air is necessary to heat so the CO2 suction into the air intake is less possible or moving fumes further away from a specific place or space.
-
Page 7: Usage
Do not operate the heater without the battery. The travel heater has a built-in battery of 22Ah. Using a heater with a removed battery only with external main power can cause damage to the heater and its components. The same applies with 220v operation with a charger only, it can damage the heater and charger. -
Page 8: Features
Features The Travel heater has a unique characteristic that saves the battery from excessive parasite drain. Travel heater has an automatic power relay that detects when the heater is not used switches the heater from a battery, and consumes less power when it is not used. Consumes only 5mA current. To start the heater press and hold the button for more than 2 (two) seconds, when it starts to flash between red and yellow that indicates that it is connecting with the heater, after that it will light up in RED which... -
Page 9: Error Codes
Error Codes Description Fault Cause Recommended Solutions blinks Check the intake and outlet of the heating unit for unobstructed entry and exit of heated air. Check the integrity of the fan and its performance. The sensor sends a signal to shut Overheating of the heat down the heater. - Page 10 Description Fault Cause Recommended Solutions Check the intake and output of the heater for During the purge time, During 5 min purge before unobstructed entry and exit of air. temperature sensor was not start-up, temperature Check the integrity of the fan and cooled down.
-
Page 11: Technical Data Sheet
3000m altitude (MASL) Fuel Diesel - EN590 Fuel 0.24 l/h 0.14 l/h consumption Control mode Autoterm push control Compatible Simple control, Comfort Control control panels Weight of the 22.5kg With a full fuel tank Travel Heater 18.5 Gross weight Heater...
