Elements Connect
CORDLESS ENDODONTIC MOTOR
ELEMENTS CONNECT CORDLESS ENDODONTIC MOTOR FEATURES
• Motor can be linked to the Apex Connect while the motor is being used.
• It has 10 pre-programed memories and 4 open memories that can be customized.
• The device has 5 programmable operating parameters: torque, speed, motor rotation, auto reverse and rotation angles.
• This motor can be operated clockwise, counterclockwise, with Adaptive Motion, and with Reciprocation.

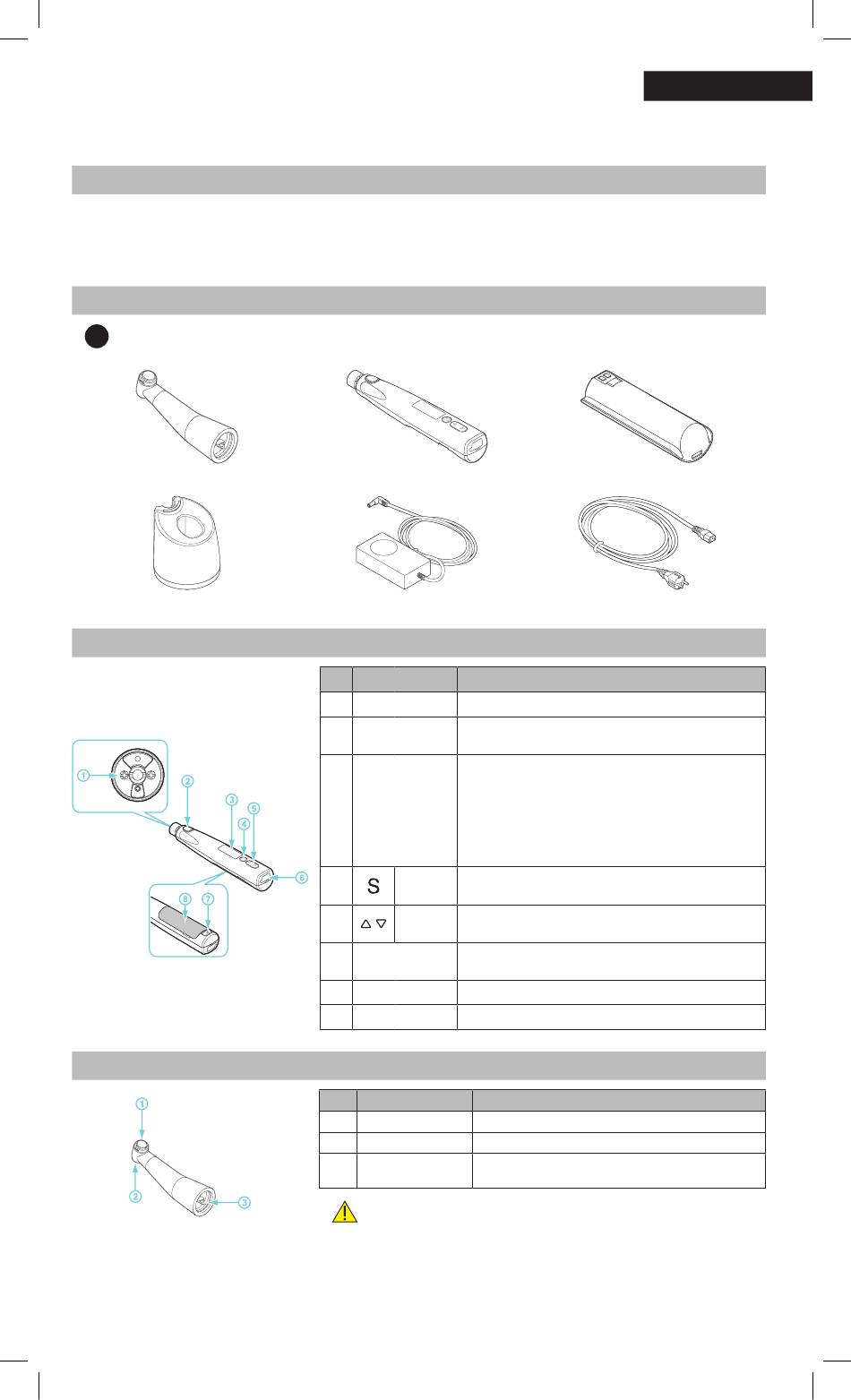

CONTENTS OVERVIEW
1
All Components
Contra angle
Charging base
MOTOR HANDPIECE
CONTRA ANGLE
1
ML-42-002_REVA_ELEMENTS_CONNECT_IFU_ROW_P24_BOOK.indb 1 ML-42-002_REVA_ELEMENTS_CONNECT_IFU_ROW_P24_BOOK.indb 1
Motor Handpiece
AC/DC Adapter
No. Name
1 Contra angle connector Attaches the contra angle to the motor handpiece.
Turns on the motor handpiece. To turn off the power, press any two buttons
2 Main button
simultaneously for 2 seconds.
The main screen, operation screen, and settings screen appear depending on
the device' s operation.
• On the main screen, the memory number and motor operation
information can be reviewed and changed.
3 Display
• The motor operation status is shown while using the device.
• On the settings screen, the system settings for the motor handpiece can
be changed.
On the main screen and the settings screen, this button can be used to save
4 Mode button
the settings and highlight the next menu item.
On the main screen and the settings screen, use this button to change menu
5 / Select button
options and settings.
Connects the Elements Connect motor handpiece and the Apex Connect only.
6 Connector terminal
It cannot be used for charging.
7 Battery Release button Removes the battery from the motor handpiece.
8 Battery Supplies the power to the motor handpiece with a removable battery.
No. Name
1 Push button Secures or detaches the Ni-Ti files from the contra angle.
2 File mounting part Mounts the Ni-Ti file on the contra angle.
3 Motor handpiece Mounts the contra angle to the motor handpiece.
connector
PRECAUTION
When selecting the proper file length for the procedure, note that the total working
length of the file is reduced by 2mm due to the deep set insert in the contra angle head
and might difficult the repositioning of the silicone stopper. A longer file might have to
be selected.
en - ENGLISH
Battery (2)
Power Cord
Function
Function
