2 Framework

2.1 Structure

Please refer to the following figure for detailed information. See Figure 2-1.
Please refer to the following sheet for detailed structure information.
SN Name
1 X-Y-Z rotation module
2 Device lens
3 Dome camera enclosure
Please refer to the following sheet for detailed port information.
SN Name
4 Power input port
5 Network port
2.2

Dimensions

Please refer to the following figure for the dimension information. The unit is mm. See Figure 2-2
through Figure 2-4.

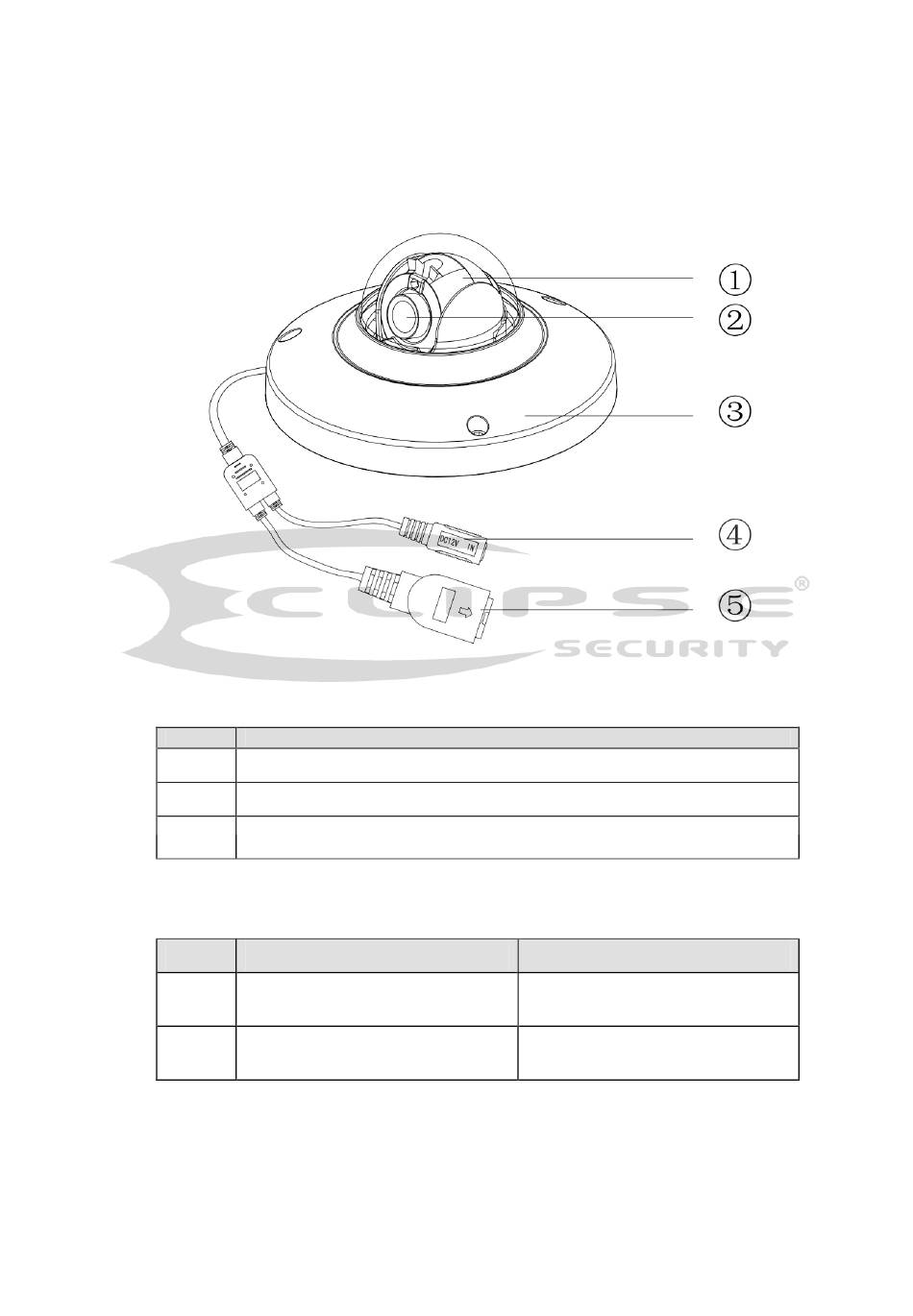

Figure 2-1 Structure
Function
Connect to the DC 12+ power to
input the power.
Network data input, output and
PoE.
6
