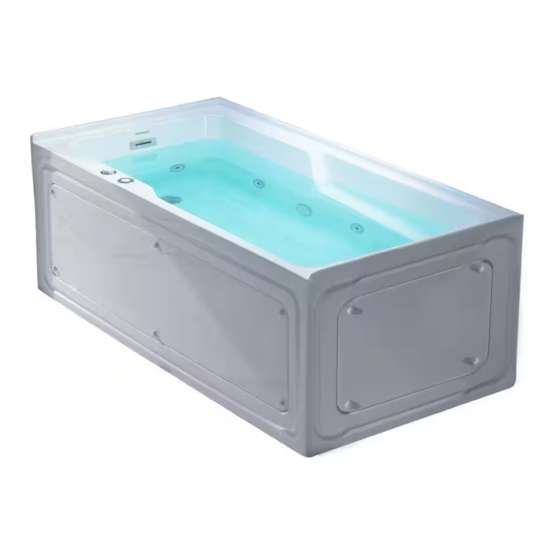

Modern alcove bathtub

Advertisement

INSTALLATION AND CARE GUIDE
WOODBRIDGE
BS6030R
Certified to the following Codes & Standard:
• UL 1795 Safety Standard for Hydromassage Bathtubs
• ASME A112.19.7 / CSA B45.10) – Hydromassage Bathtub Systems
• CSA B45.5/IAPMO Z124 – Plastic Plumbing Fixtures
• International Plumbing Code
• International Residential Code
• Uniform Plumbing Code
National Plumbing Code of Canada
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT
INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING
OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION.
This products must be installed by a fully insured and licensed plumber only. Installation of any our product by anyone other
than fully insured and licensed plumber shall void limited warranty. We recommends that such licensed plumber has experience
in the installation of products.
We are not responsible for local code compliance for this product. Building and plumbing codes may vary from state-to-state in
accordance to your location. We are not responsible for providing any compliance certifications.
Under no circumstances we shall not be liable for any incidental damages sustained in connection with this product
Neither manufacture, nor distributor, nor retailer is responsible for water damage or flood caused due to use of this product.
Under no circumstances We shall not be liable for any and all fees, cost of installation/reinstallation/removal, subsequent
damage or transportation in case of the product defect
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
R
MODERN ALCOVE BATHTUB
BS5430R
BM6030R
BS6032R
® (IPC)
® (IRC)
® (UPC)
® (NPC)
2 PEOPLE ARE REQUIRED TO LIFT AND DURING
ENTIRE INSTALLATION OF THIS PRODUCT
Or Email: help@woodbridgebath.com
BS5430L
BS6030L
BS6032L
(UL1795)
BM6030L
1
