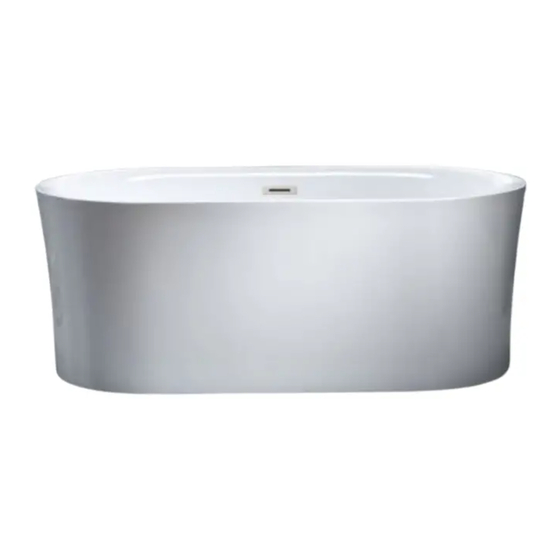

INSTALLATION AND CARE GUIDE
WOODBRIDGE
B0170
B0101/BTS0101
Certified to the following Codes & Standard:
• UL 1795 Safety Standard for Hydromassage Bathtubs
• ASME A112.19.7 / CSA B45.10) – Hydromassage Bathtub Systems
• CSA B45.5/IAPMO Z124 – Plastic Plumbing Fixtures
• International Plumbing Code
• International Residential Code
• Uniform Plumbing Code
•
National Plumbing Code of Canada
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT
INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING
OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION.
This products must be installed by a fully insured and licensed plumber only. Installation of any our product by anyone other
than fully insured and licensed plumber shall void limited warranty. We recommends that such licensed plumber has experience
in the installation of products.
We are not responsible for local code compliance for this product. Building and plumbing codes may vary from state-to-state in
accordance to your location. We are not responsible for providing any compliance certifications.
Under no circumstances we shall not be liable for any incidental damages sustained in connection with this product
Neither manufacture, nor distributor, nor retailer is responsible for water damage or flood caused due to use of this product.
Under no circumstances We shall not be liable for any and all fees, cost of installation/reinstallation/removal, subsequent
damage or transportation in case of the product defect
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
R
® (IPC)
® (IRC)
® (UPC)
® (NPC)
2 PEOPLE ARE REQUIRED TO LIFT AND DURING
ENTIRE INSTALLATION OF THIS PRODUCT
Or Email: help@woodbridgebath.com
AIR BATHTUB
B0102/BTS0102
(UL1795)
20230620 REV. 1
1
Advertisement
Table of Contents
Related Manuals for Woodbridge B0170
Summary of Contents for Woodbridge B0170
- Page 1 INSTALLATION AND CARE GUIDE WOODBRIDGE AIR BATHTUB B0170 B0101/BTS0101 B0102/BTS0102 Certified to the following Codes & Standard: (UL1795) • UL 1795 Safety Standard for Hydromassage Bathtubs • ASME A112.19.7 / CSA B45.10) – Hydromassage Bathtub Systems • CSA B45.5/IAPMO Z124 – Plastic Plumbing Fixtures ®...
- Page 2 • All information is based on the latest product information available at the time of publication. WOODBRIDGE ® reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
- Page 3 INSTALLATION REQUIREMENTS A. Tools Required B. Materials Required: • Adjustable pipe • Plumbers putty • wrench • Wall coverings, as necessary • Rule • Silicone sealant • Level • Gypsum cement (optional) • Safety shoes • Construction adhesive • Safety glasses •...
- Page 4 6) The unit must be connected only to a supply circuit that is protected by a Ground-Fault Circuit Interrupter (GFCI). Such a GFCI should be provided by the installer and should be tested on a routine basis. WOODBRIDGE WHIRLPOOL & AIR BATHTUB ELECTRICAL REQUIREMENTS...
- Page 5 OPERATING GUIDE BUBBLE MASSAGE CHROMA-LIGHT BATHTUB POWER ON / OFF BUTTON ON / OFF BUTTON ON / OFF BUTTON POWER THE BATHTUB POWER Function, touch Power button to turn on the main power and button backlight will turn into red. Re-touch button to turn off the main power and button’s backlight will off.
- Page 6 WOODBRIDGE WARRANTY Woodbridge warrants its products as listed in below to be free of material and workmanship defect,subjected to the limitations set forth in this limited warranty. • Bathtub, Whirlpool/Air Bubble Massage Tub: 1 Year limited to be free of defects in material and workmanship •...
- Page 7 In the event of a problem, the unit must not be installed. Woodbridge is not responsible for failures or damage that could have been discovered, repaired, oravoided by proper inspection and testing prior to installation.
- Page 8 Abrasive sponges or cloth. Never use steel, wool, or wired brushes that will permanently scratch the surface. Retain these installation instructions for future reference! Thank you for using WoodBridge products! Please don't hesitate to contact us if you have any questions or concerns.
