INSTALLATION AND CARE GUIDE
WOODBRIDGE
B0090/BTS0090
Certified to the following Codes & Standard:
• U.S Safety Standard: UL 1795 – Hydro massage Bathtubs
• ASME A112.19.7 / CSA B45.10-2012(R17) – Hydromassage Bathtub Systems
• CSA B45.5/IAPMO Z124-2017 – Plastic Plumbing Fixtures
• 2009 and 2006 International Plumbing Code
• 2021, and 2006 International Residential Code
• 2018, 2015, and 2006 Uniform Plumbing Code
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT
INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING
OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION.
This products must be installed by a fully insured and licensed plumber only. Installa on of any our product by anyone other
than fully insured and licensed plumber shall void limited warranty. We recommends that such licensed plumber has experience
in the installa on of products.
Limited warranty is void on any commercial installa on
We are not responsible for local code compliance for this product. Building and plumbing codes may vary from state-to-state in
accordance to your loca on. We are not responsible for providing any compliance cer fica ons.
Under no circumstances we shall not be liable for any incidental damages sustained in connec on with this product
Neither manufacture, nor distributor, nor retailer is responsible for water damage or flood caused due to use of this product.
Under no circumstances We shall not be liable for any and all fees, cost of installa on/reinstalla on/removal, subsequent
damage or transporta on in case of the product defect
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)

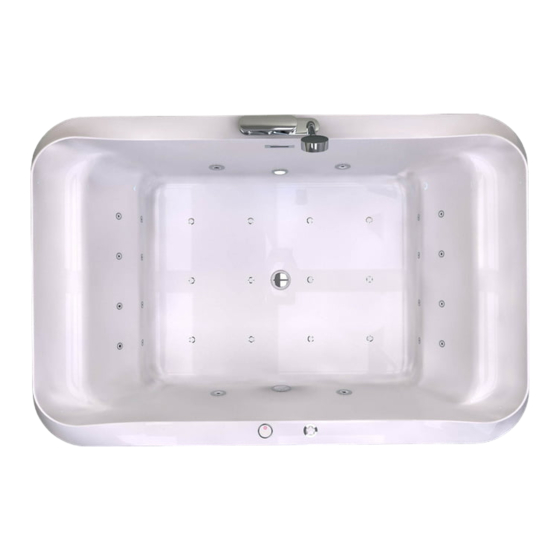

Whirlpool & Air Bubble Bathtub
R
B0091/BTS0091
2 PEOPLE ARE REQUIRED TO LIFT AND DURING
ENTIRE INSTALLATION OF THIS PRODUCT
Or Email: help@woodbridgebath.com
www.woodbridgebath.com
Two persons Hot Tub
B0092/BTS0092
® (IPC)
® (IRC)
® (UPC)
(UL)
20200922 REV. 5
1
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Woodbridge B0090
Summary of Contents for Woodbridge B0090
- Page 1 INSTALLATION AND CARE GUIDE Whirlpool & Air Bubble Bathtub WOODBRIDGE Two persons Hot Tub B0090/BTS0090 B0091/BTS0091 B0092/BTS0092 Certified to the following Codes & Standard: (UL) • U.S Safety Standard: UL 1795 – Hydro massage Bathtubs • ASME A112.19.7 / CSA B45.10-2012(R17) – Hydromassage Bathtub Systems •...
-
Page 2: Before You Begin
• All informa on is based on the latest product informa on available at the me of publica on. WOODBRIDGE ® reserves the right to make changes in product characteris cs, packaging, or availability at any me without no ce. -
Page 3: Installation Requirements
INSTALLATION REQUIREMENTS A. Tools Required B. Materials Required: • Adjustable pipe • Plumbers pu y • wrench • Wall coverings, as necessary • Ruler • Silicone sealant • Level • Gypsum cement (op onal) • Safety shoes • Construc on adhesive •... -
Page 4: Electrical Requirements
6) The unit must be connected only to a supply circuit that is protected by a Ground-Fault Circuit Interrupter (GFCI). Such a GFCI should be provided by the installer and should be tested on a rou ne basis. Whirlpool & Air Bubble Bathtub WOODBRIDGE Two persons Hot Tub ELECTRICAL REQUIREMENTS Whirlpool & Air Bubble Bathtub... -
Page 5: Troubleshooting
Voltage/Hz Power Current 110V/60HZ 2.8KW >23A 1.Voltage/HZ needs match up with the product's parameter. 2.Power supply needs a good grounding. 3.The pressure of water supply needs meet 0.2-0.4Mpa. 4.The Whirlpool func on will func on when the level of water injec on is higher than the level of jets. - Page 6 Instruc ons Hot and cold water regula ng switch Func on switch valve Shower Effluent Hot water pipe(1.5m) Cold water pipe(1.5m) Cold NEUTRAL GROUND Control box NEUTRAL The control panel GROUND Force regula ng valve THE LEAKAGE SWITCH Display window Switch confirma on key Func on selec on key www.woodbridgebath.com...
- Page 7 Service Access Door Service Access Door Tub Rim Service Access Door LED light indicator www.woodbridgebath.com...
-
Page 8: Operation Tips
DANGER Sign: RISK OF SEVERE INJURY FROM ELECTRIC SHOCK OR DEATH FROM ELECTROCUTION! CAUTION Sign: IMPORTANT INSTALLATION GUIDE AND MAINTENANCE TIPS TO BE FOLLOW PER MANUFACTURE. WARNING: 1. In order to prevent fire or electrical shock, DO NOT expose the control box on rain or wet environment. Control box contains dangerous high voltage parts and DO NOT open the control box. - Page 9 CONTROLLER USER MANUAL: 1. Feature descrip on: • Wave Feature • Air Blower • Constant Heated • Temperature Sensor • Water level detec on • Child Keypad Lock • Touch Sensor technology 2. Control system: • Keypad (x1) • Control Box (x1) 3.
-
Page 10: Control Panel Operation
CONTROL PANEL OPERATION: Display Func onal Power/Func on ON/OFF (1) Always a BEEP sound on every keypad func on. (2) Power ON and OFF Press and hold Power/Func on bu on for 3 seconds to power on the unit. Unit with Temperature sensor func on with display current temperature on LCD screen. -
Page 11: Function Indicator
(4) Func on Se ng The unit is ON, press FUNCTION key to enter FUNCTION se ng interface. LCD screen will display as below: 4.1 – FUNCTION INDICATOR FUNCTION ON/OFF (“ √ ”means func on ON, Blank means func on OFF) Keep pressing FUNCTION key ll the func on you are looking for, then press POWER/Func on bu on to ac vate or deac vate the func on. -
Page 12: Read Before Installation
READ BEFORE INSTALLATION: 1. Installer MUST follow the circuit diagram and technical data provided by manufacturer during the installa on. 2. Ground onthe control panel must connect to circuit diagram with ground. 3. Installer must use a cer fied specifica on of 3x3mm diameter or thicker wire, and power outlet must be 30A or higher grand for installa on. -
Page 13: Warranty
Improper care and use of abrasive cleaners and will void the warranty. During this limited warranty period if a malfunc on occurs and a er inspec on it is determined that a defect developed during normal use, Woodbridge will as at... -
Page 14: Troubleshooting Procedures
Pump/motor Pump/motor not plugged in Ensure control panel is connected to does not start Pump/motor faulty control box Contact Woodbridge Bath @ 562-229-0088 Open jets by rota ng counter-clockwise Pump/motor Jets are closed with the motor turned OFF, remove the... -
Page 15: Important Safety Rules
Abrasive sponges or cloth. Never use steel, wool, or wired brushes that will permanently scratch the surface. Retain these installa on instruc ons for future reference! Thank you for using WoodBridge products! Please don't hesitate to contact us if you have any ques ons or concerns.
