INSTALLATION AND CARE GUIDE

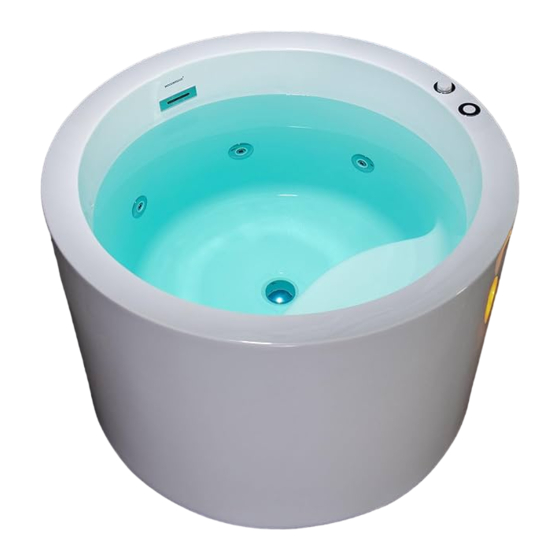

WHIRLPOOL HEATED BATHTUB
In compliance with following Codes & Standard:
• UL 1795 Safety Standard for Hydromassage Bathtubs
• ASME A112.19.7 / CSA B45.10) – Hydromassage Bathtub Systems
• CSA B45.5/IAPMO Z124 – Plastic Plumbing Fixtures
• International Plumbing Code
• International Residential Code
• Uniform Plumbing Code
•
National Plumbing Code of Canada
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT
INSTRUCTIONS THAT, IF IGNORED COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING
OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION.
This products must be installed by a fully insured and licensed plumber only. Installation of any our product by anyone other
than fully insured and licensed plumber shall void limited warranty. We recommends that such licensed plumber has experience
in the installation of products.
We are not responsible for local code compliance for this product. Building and plumbing codes may vary from state-to-state in
accordance to your location. We are not responsible for providing any compliance certifications.
Under no circumstances we shall not be liable for any incidental damages sustained in connection with this product
Neither manufacture, nor distributor, nor retailer is responsible for water damage or flood caused due to use of this product.
Under no circumstances We shall not be liable for any and all fees, cost of installation/reinstallation/removal, subsequent
damage or transportation in case of the product defect
Customer Service Phone: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
BS0260
® (IPC)
® (IRC)
® (UPC)
® (NPC)
2 PEOPLE ARE REQUIRED TO LIFT AND DURING
ENTIRE INSTALLATION OF THIS PRODUCT
Or Email: help@woodbridgebath.com
(UL1795)
1
Advertisement
Table of Contents
Related Manuals for Woodbridge BS0260
Summary of Contents for Woodbridge BS0260
- Page 1 INSTALLATION AND CARE GUIDE WHIRLPOOL HEATED BATHTUB BS0260 In compliance with following Codes & Standard: (UL1795) • UL 1795 Safety Standard for Hydromassage Bathtubs • ASME A112.19.7 / CSA B45.10) – Hydromassage Bathtub Systems • CSA B45.5/IAPMO Z124 – Plastic Plumbing Fixtures ®...
- Page 2 • All information is based on the latest product information available at the time of publication. WOODBRIDGE ® reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
- Page 3 INSTALLATION REQUIREMENTS A. Tools Required B. Materials Required: • Adjustable pipe • Plumbers putty • wrench • Wall coverings, as necessary • Ruler • Silicone sealant • Level • Gypsum cement (optional) • Safety shoes • Construction adhesive • Safety glasses •...
- Page 4 3) Set the bathtub on two 4x4 pieces of lumber .so you can access from the bottom of the bathtub. 4) Connect Power Supply: Connect power supply to control unit. The electrical connections must comply with local authority regulations and must be done by an authorized electrician. 5) Fill bathtub with water to approximately 40 mm(1.6˝) above the jets and trial run the pump for 10-15 minutes.
- Page 5 WOODBRIDGE WHIRLPOOL & AIR BATHTUB ELECTRICAL REQUIREMENTS WHIRLPOOL HEATED TUB CGFI Outlet Heater (1.5KW) CGFI Outlet Whirlpool Pump (0.75KW) 5-10mm(02"to 0.4") For Air Bath and Whirpool Tub installation, Do not apply any silicone sealant after installation, leave a 5-10mm(0.2" to 0.4")gap for motor/pump ventilation purpose.
- Page 6 NOTES NOTES INSTALLER INFORMATION INSTALLER INFORMATION DATE OF INSTALL: DATE OF INSTALL: INSTALLER’S NAME: INSTALLER’S NAME: PLUMBER: PLUMBER: CONTRACTOR: CONTRACTOR: LICENSE #: LICENSE #:...
- Page 7 Improper care and use of abrasive cleaners and will void the warranty. During this limited warranty period if a malfunction occurs and after inspection it is determined that a defect developed during normal use, Woodbridge will as at...
- Page 8 Abrasive sponges or cloth. Never use steel, wool, or wired brushes that will permanently scratch the Retain these installation instructions for future reference! Thank you for using WoodBridge products! Please don't hesitate to contact us if you have any questions or concerns.
