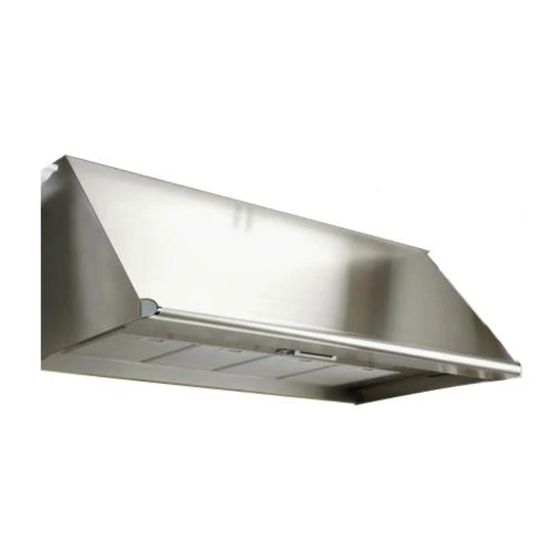

Dacor Epicure EH30 Installation Instructions Manual
Wall mount range hoods
Hide thumbs
Also See for Epicure EH30:
- Installation instructions manual (27 pages) ,
- Use and care manual (25 pages) ,
- Installation instructions manual (24 pages)
Advertisement
Quick Links
Part No. 102139 Rev. H
and Millennia
Epicure
®
Wall Mount Range Hoods
For use with models:
EH30, EH36, EH42, EH48, EH54,
MH30, MH36 and MH48
Approved for use with All dAcor
tested in AccordAnce with the lAtest edition of Ansi/ul 507
stAndArd for electric fAns And cAn/csA-c22.2 no. 113 stAndArd
for fAns And ventilAtors.
Installation Instructions
™
®
rAnges And cooktops.
Advertisement
Related Manuals for Dacor Epicure EH30
Summary of Contents for Dacor Epicure EH30
-
Page 1: Important Safety Instructions
For use with models: EH30, EH36, EH42, EH48, EH54, MH30, MH36 and MH48 ® Approved for use with All dAcor rAnges And cooktops. tested in AccordAnce with the lAtest edition of Ansi/ul 507 stAndArd for electric fAns And cAn/csA-c22.2 no. 113 stAndArd for fAns And ventilAtors. -
Page 2: Table Of Contents
It is located inside the hood behind the filters on the back side of the chas- sis. Remove the filters to view it. All specifications subject to change without notice. dacor assumes no liability for changes to specifications. © 2008 Dacor, all rights reserved. -
Page 3: Product Specifications
Product Specifications General Specifications Weight Specifications All Models Model weight Fan Speeds EH3012, MH3012 48 lbs. (22 kg) Filters Mesh type, dishwasher safe EH3018, MH3018, Exhaust(s) 8-inch 53 lbs. (24 kg) EH3612, MH3612 Total Connect 120 Vac, 60 Hz, 9 Amp. Max. EH3618, MH3618 57 lbs. -
Page 4: Dimensions
Product Specifications Dimensions Tolerances: +1/16”, -0 (1.6 mm, -0), unless otherwise stated. note: The exhaust duct(s) and electrical wiring can be connected from either the top or the back of the hood. Single exhaust models** Dual exhaust models* Standard 8” duct connection Standard 8”... -
Page 5: Product Specifications
Hood assembly with filters (size and style varies with model) • Blower mounting hardware (used only for installations requiring rear exhaust configuration • Light replacement tool • Literature • Light bulbs (quantity varies with model) • Dacor Stainless Steel Cleaner... -
Page 6: Planning The Installation
Planning the Installation wArning Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information. Cabinet Layout iMportAnt See the diagram for minimum installed distance from wArning the hood to the cooktop surface. The minimum specified distance may be higher for the particular range or To reduce the risk of personal injury caused by reaching cooktop in use. - Page 7 Planning the Installation • On dual exhaust models, the two 8” exhausts may be wArning merged into one 10” duct using Dacor transition kit AHT10. See page 16 for details. • To prevent combustion by-products, smoke or odors from entering the home and to improve efficiency, Calculating the Maximum Duct Run Length tape all duct joints securely.
