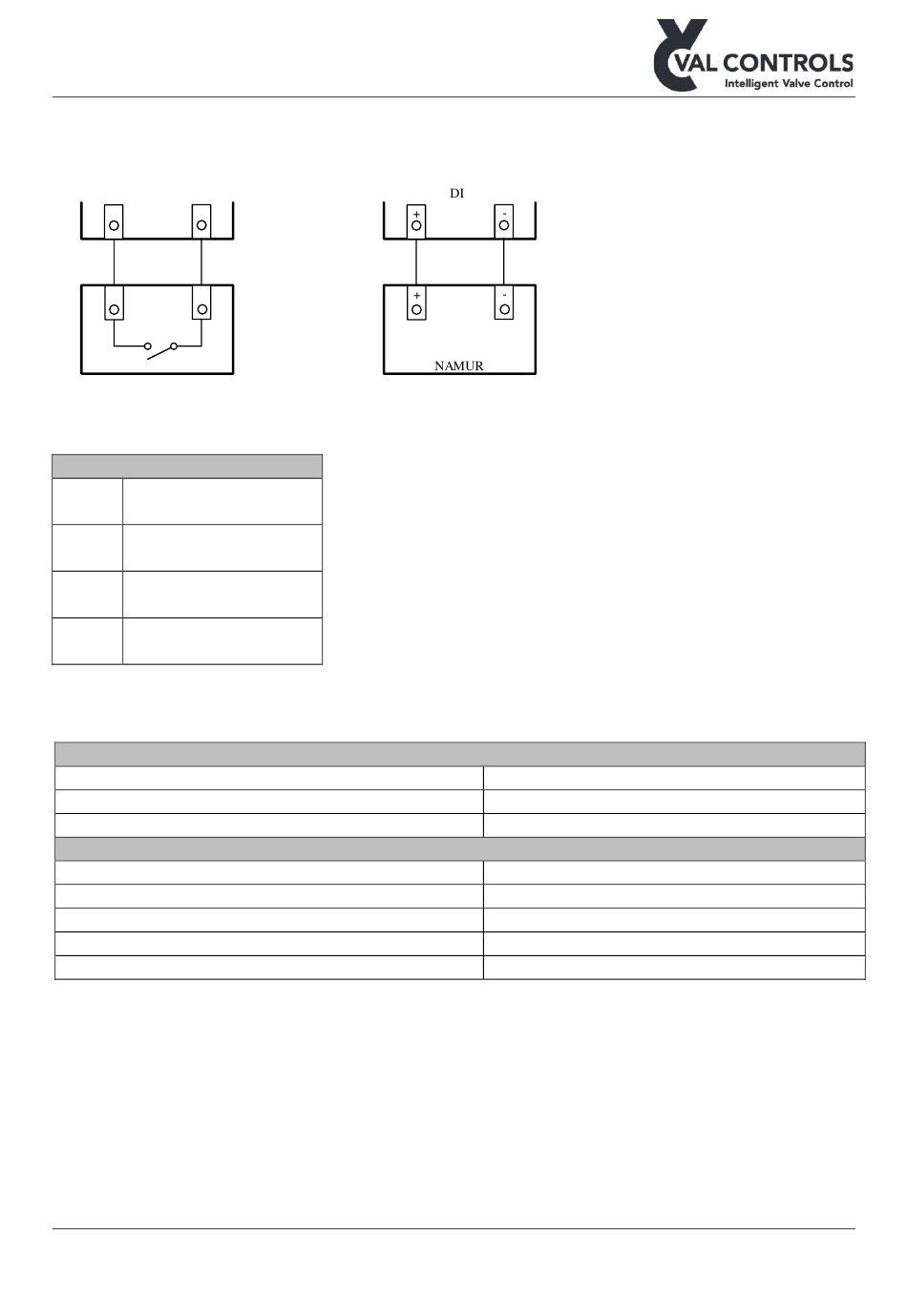

8 Digital input – DI1, DI2, DI3, DI4
Use digital inputs to connect dry signals.
DI
+ -
+ -
Switch

8.1 Terminals

DI1 39 (+)
40 (-)
DI2 41 (+)
42 (-)
DI3 43 (+)
44 (-)
DI4 45 (+)
46 (-)

8.2 Electrical specifications

DI – Switch
Type
Cable length
Maximum cable resistance
DI – NAMUR
Type
Sensor supply voltage
Cable length
Max load
Rin
