6 Position sensor – AI10

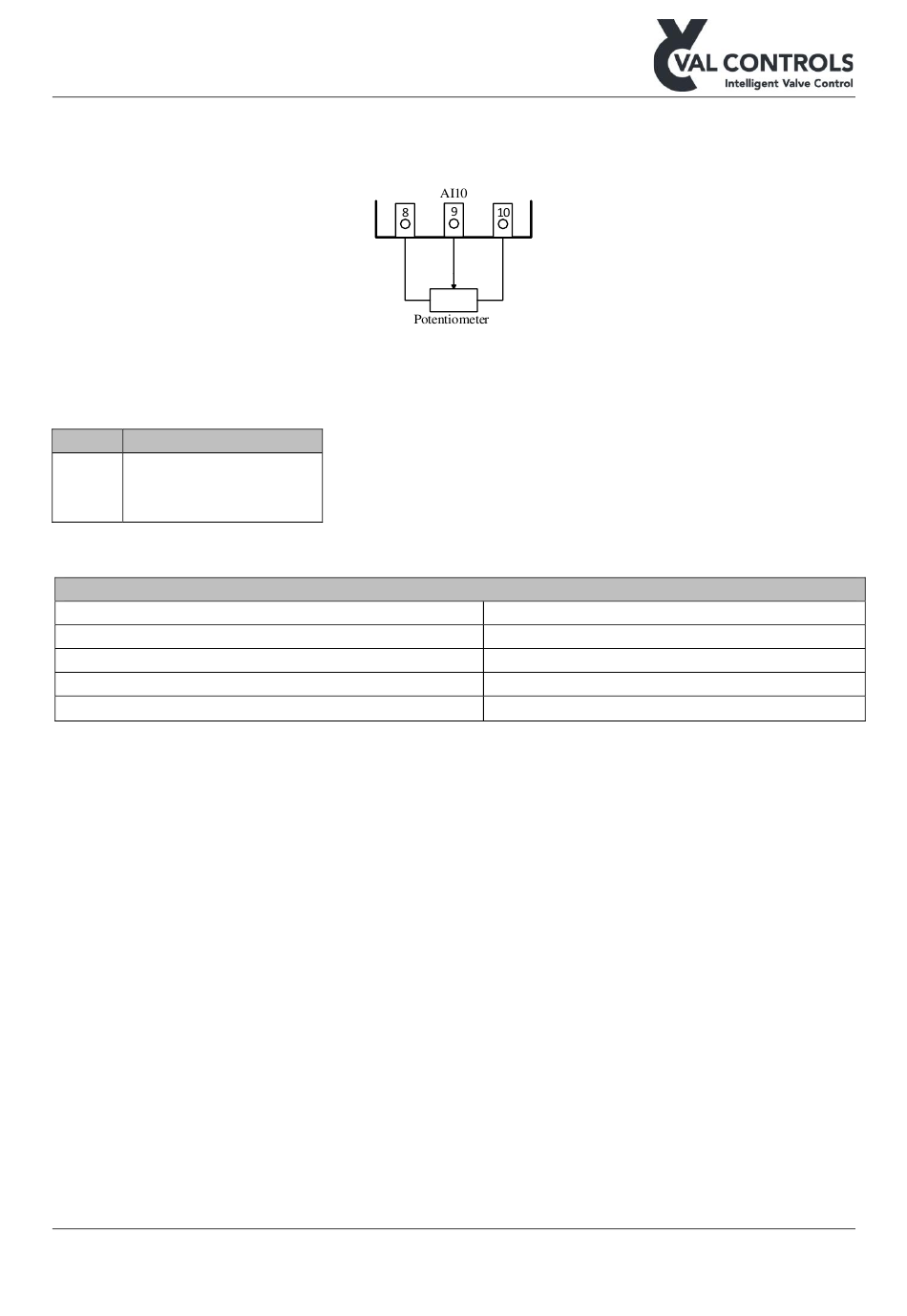

The position feedback can be delivered from a 3-wire potentiometer.

6.1 Terminals

Sensor
AI10 8 Pot high
9 Wiper
10 Pot low

6.2 Electrical specifications

AI10 – Position sensor
Potentiometer size
Minimum use operating area
Cable length
Linearity
Temperature coefficient
Val Controls A/S • Sallingsundvej 5 • DK-6715 Esbjerg N • Tel. +45 7547 0600
DHW-UM-016
Revision: 1
5 kΩ to 20 kΩ
40%
1.5 meters
< 0.1%
0.01% / 1°C (Warm-up: 10 min)
