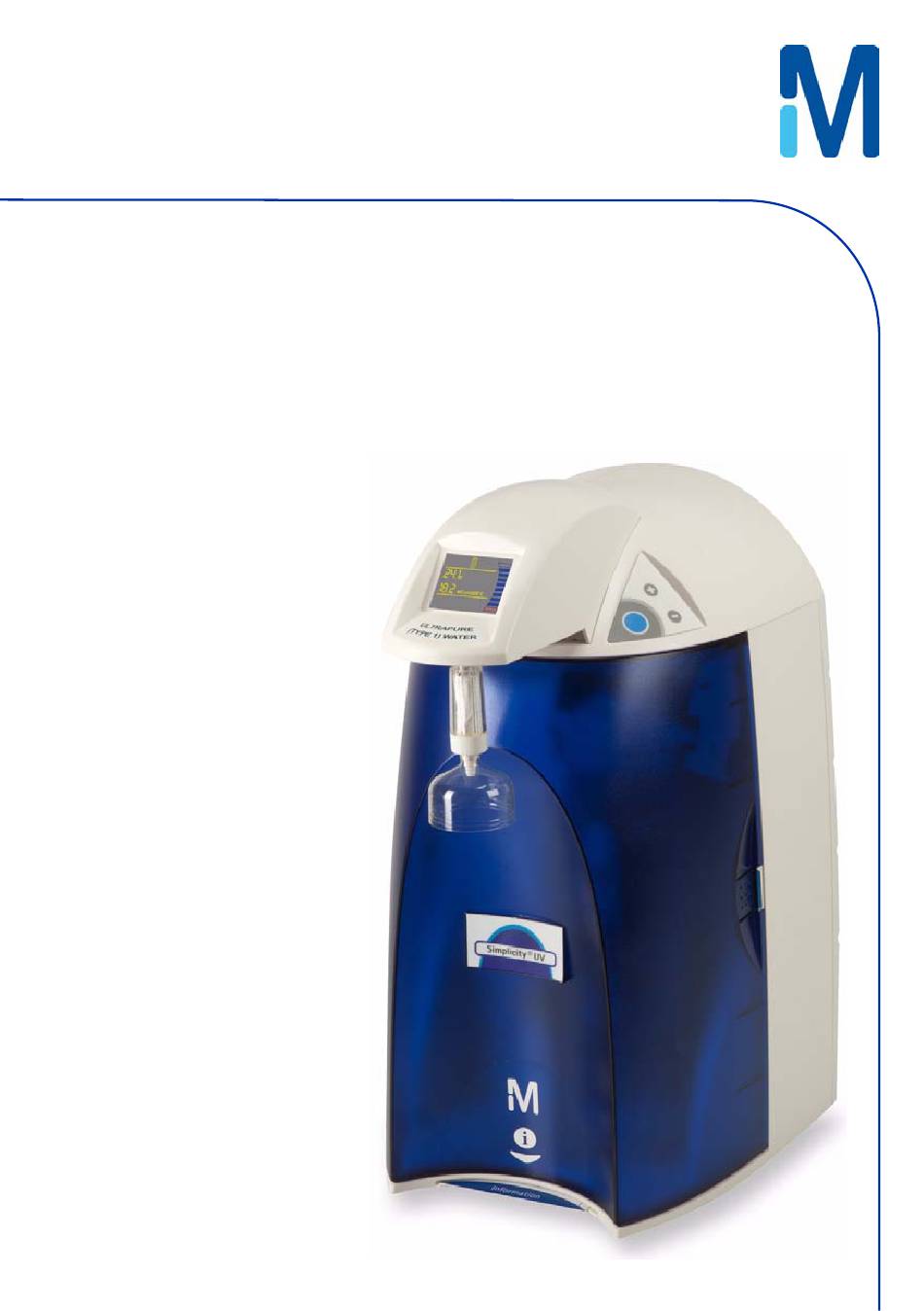

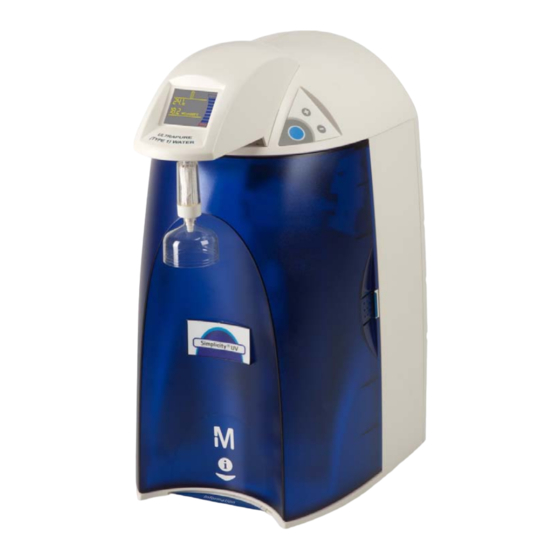

- Page 1 Simplicity® system Simplicity UV system User manual...
- Page 3 Millipore SAS. Millipore SAS assumes no responsibility for any errors that might appear in this document. This manual is believed to be complete and accurate at the time of publication. In no event shall Millipore SAS be liable for incidental or consequential damages in connection with or arising from the use of this manual.
- Page 4 Product warranty and limitation of liability The applicable warranty and limitation of liability for the products listed in this publication may be found at http://www.millipore.com/ec/cp3/terms within the "Terms and Conditions of Sale" applicable to your purchase transaction. Directive 2002/96 EC: For European users only The symbol “crossed bin”...
-
Page 5: Table Of Contents
How to Set the Resistivity Setpoint (C02) ......................19 Using the Simplicity System ....................21 Understanding the Display ............................21 How to Get Water from the Simplicity System ....................21 Operating Modes ................................22 How to view the Product Resistivity and Temperature in Pre Operate mode ..........23 How to recirculate water manually before dispensing .................. - Page 6 Maintenance ..........................25 Maintenance Schedule ..............................25 How to Replace the SimpliPak cartridge ........................ 26 How to Replace the Final Filter ..........................29 How to Calibrate the Tank Level (C03) ........................30 How to Replace the UV Lamp (UV System only) ....................32 How to View or Reset the UV Lamp Timer (C04) ....................
-
Page 7: Introduction
This User Manual is a guide for use during the installation, normal operation and maintenance of a Simplicity or Simplicity UV Water Purification System. ‘Simplicity System’ is used in this manual to refer to either the Simplicity or the Simplicity UV Water Purification System unless otherwise noted. It is highly recommended to completely read this manual and to fully comprehend its contents before attempting normal operation or maintenance of the Water Purification System. -
Page 8: Contacting Millipore® Sas
Introduction Contacting Millipore® SAS Internet The Millipore SAS Internet Site can be used to find addresses, telephone/fax numbers and other information. Internet Site Address: www.millipore.com www.millipore.com/techservice www.millipore.com/lab_water Manufacturing Site Millipore SAS 67120 Molsheim FRANCE... -
Page 9: Product Information
The KEYPAD is used to monitor the Product Water dispnese Product Water and quality and system status. to access operating functions and system settings. Simplicity System Product Water Specifications Water Flowrate Up to 0.5 LPM (with Final Filter) Specifications Product Water Resistivity 18.2 MΩ.cm @ 25 °C... -
Page 10: Schematic Of Main Components
Product Information Schematic of Main Components 1 2 Litre Tank 5 Product Resistivity Cell & Thermistor 2 Distribution Pump 6 Point-of-Use (POU) Solenoid Valve 3 UV Lamp 185 nm (UV System) 7 Final Filter 4 SimpliPak 1, 2 or 3 Cartridge 8 Recirculation Loop Operating principle The Simplicity Water Purification System is fed with pretreated water (Elix system, RO, distilled or DI water) -
Page 11: Technical Specifications
10.2 kg 10.7 kg Noise Level A Simplicity System has a maximum noise level of 50 dB at a distance of 1 metre away. Electrical • 100 VAC ± 10%, 50/60 Hz. 0.56 amp source, 2 amp T (Time Lag) fuse, Power = 80 VA •... -
Page 13: Pre Installation
Bracket Unpacking the Simplicity System− What’s Inside? Open the Simplicity System Shipping Box. Use the checklist included in the Accessories Bag to make sure all items were shipped and are accounted for. It is highly suggested to become familiar with the items that are shipped since these will be used in the Installation section of this manual. -
Page 15: Installation
Installation Preparation of the System • Locate the protective foam found at the UV lamp cable. Remove it (see photo A). Filling the Internal Tank • Place your hand under the tank handle (B). • Raise and pull out the tank using the tank handle (C). •... -
Page 16: Installation Of The Tank Vent Filter
Installation Installation of the Tank Vent Filter • Insert the Vent Filter into the tank lid (A). Press firmly on the filter to secure the Luer connection. • Re-install the tank lid (B). -
Page 17: Connection Of The Power Cord − Turning On The System Power
Installation Connection of the Power Cord − Turning on the System Power • Open the front cover of the system (A). This will allow the system to go into STANDBY mode once the system is powered. • Plug the Power Cord into the system (B). •... -
Page 18: Installation Of The Simplipak Cartridge
Installation Installation of the SimpliPak cartridge ATTENTION Do not touch the UV Lamp when replacing the SimpliPak cartridge. Installation • Make sure the front cover is opened. STANDBY should be viewed on the Display (A). • Remove the SimpliPak from its shipping box. •... - Page 19 Installation • Install the SimpliPak until it is fully seated into the system ports as shown (B, C and D). • CLOSE THE FRONT COVER.
-
Page 20: Installation Of The Tygon® Tubing
Installation Installation of the Tygon® Tubing Do not use any white tape on the threads of the Barbed Fitting. An O-ring is ATTENTION located inside the POU Dispenser to ensure water tightness between the threads of the POU Dispenser and the Barbed Fitting. •... -
Page 21: Purging Air From The System
Installation Purging Air from the System • At this time you should have installed the SimpliPak cartridge, Barbed Fitting and the Tygon Tubing. Air trapped in the SimpliPak cartridge should now be purged from the system. • Press the Main Button to put the system into DISPENSING mode (A). •... -
Page 22: Installation And Rinsing Of The Final Filter
Installation Installation and Rinsing of the Final Filter • Obtain a Final Filter. It can be the SimFilter™ Final Filter or the BioPak® Ultrafiltration Cartridge. • Remove the Tygon Tubing and the Barbed Fitting from the POU Dispenser. • Screw the Final Filter onto the end of the POU Dispenser. The Final Filter should be turned until it is hand tight (A). -
Page 23: How To Show Resistivity Or Conductivity Units (C01)
Installation How to Show Resistivity or Conductivity Units (C01) With Temperature Compensated or non Temperature Compensated values Temperature compensation is a way of ‘standardizing’ Resistivity or Conductivity to measurements that would be seen if the water temperature was 25 °C. Press the Main and “+“... - Page 24 Installation Press the “+” or “-“ Button to select Non Temperature Compensated Conductivity Units: µS/cm. To exit the menu, press and hold the Main Button for 2 seconds. To display the next menu option, press the Main Button once.
-
Page 25: How To Set The Resistivity Setpoint (C02)
Resistivity display will flash and the red Pack Alarm will be blinking (see messages). The factory default resistivity value is set to 15 MΩ. cm @25 °C. Simplicity system Press the Main and “+“ Buttons together to enter the menu. The Display will show C01. - Page 26 Installation To exit the menu, press and hold the Main Button for 2 seconds. To display the next menu option, press the Main Button once.
-
Page 27: Using The Simplicity System
10 minutes. Maintaining a minimum level of water in the tank • The Simplicity System is fed by the internal tank in the system. The actual water level in the tank can be viewed in PRE OPERATE mode. Whenever the tank level is close to 10%, the tank should be refilled. -
Page 28: Operating Modes
Operating Modes Standby STANDBY mode is displayed when the front cover is removed. To depressurize the system, the Main Button has to be pressed down when STANDBY is blinking on the Display for 10 seconds. All system operations are disabled. STANDBY mode is selected before attempting maintenance on the system. -
Page 29: How To View The Product Resistivity And Temperature In Pre Operate Mode
How to view the Product Resistivity and Temperature in Pre Operate mode Press: The Display will show the last Product resistivity and temperature values measured during DISPENSING mode or during RECIRCULATION. The values are displayed for 5 seconds. NOTE: The Product resistivity and temperature are displayed automatically during DISPENSING mode or during RECIRCULATION. -
Page 30: How To Understand Simplicity System Messages
How to Understand Simplicity system messages Pack Alarm • The system will prompt you to change the SimpliPak cartridge cartridge using a red Pack Alarm icon. The Display will show the red Pack Alarm blinking. The SimpliPak cartridge is changed due to either the amount of time it has been used or from the amount of water that has passed through it. -
Page 31: Maintenance
Maintenance Maintenance Schedule What to do When? How to? When the Pack Alarm display is See Section How SimpliPak blinking. to Replace the Cartridge SimpliPak Replacement cartridge When the system resistivity display is blinking. The SimFilter Final Filter is replaced when the SimpliPak cartridge is See Section How Final Filter... -
Page 32: How To Replace The Simplipak Cartridge
Maintenance How to Replace the SimpliPak cartridge HAZARD Do not touch the UV Lamp when replacing the SimpliPak cartridge. Removing the SimpliPak cartridge • Remove the Final Filter. • Open the front cover to go into STANDBY mode. Press the Main Button. - Page 33 Maintenance Installing the new SimpliPak cartridge • Remove the new SimpliPak cartridge from its shipping box. • Remove the protective caps on the ports of the SimpliPak cartridge. • Locate the O-rings on the ports. Wet them with water. It is preferable to wet them with ultrapure water.
- Page 34 Maintenance • Install the Barbed Fitting and Tygon Tubing (G). (See Section Installation of the Tygon® Tubing Purging Air from the System • (See Section Purging Air from the System) Hydrating the System • Hydrate the system (H). (See Section Hydrating the System) Replacing the Final Filter •...
-
Page 35: How To Replace The Final Filter
Maintenance How to Replace the Final Filter The Final Filter is normally replaced when the SimpliPak cartridge is replaced or at an earlier time if it becomes clogged. A clogged Final Filter can reduce the Product Water flowrate. ATTENTION Make sure the SimpliPak cartridge has been hydrated overnight. •... -
Page 36: How To Calibrate The Tank Level (C03)
Maintenance How to Calibrate the Tank Level (C03) Before calibrating the tank level, the tank needs to be filled to the 100% level or TANK FULL. Press the Main and “+“ Buttons together to enter the menu. The Display will show C01. Press the Main Button 2 times. - Page 37 Maintenance Remove the tank from the system. Remove the Vent Filter lid and empty all the water from the tank. NOTE: The lowest water level is not calibrated if the amount of water emptied from the tank is less than 10%. Reinstall the tank in the system.
-
Page 38: How To Replace The Uv Lamp (Uv System Only)
Maintenance How to Replace the UV Lamp (UV System only) The red UV Lamp Alarm will be blinking on the Display when it is time to exchange the UV Lamp. The message is Section How to View or Reset the UV Lamp Timer (C04)). shown when the UV Timer has reached 0 days No electrical power should be going to the system at this time. - Page 39 Maintenance Removing the UV Lamp The UV Lamp contains metallic Mercury. Please dispose of the used UV Lamp in ATTENTION a manner that is environmentally safe. • Detach the Velcro belt of the UV housing. • Pull the UV housing out so that the UV Lamp cable is accessible (D). NOTE: Use the gloves supplied with the UV replacement kit.
- Page 40 Maintenance Installing the new UV Lamp • Ensure that you use the gloves supplied with the UV replacement kit. Plug the electrical cable to the new UV Lamp (G). • Carefully insert the UV Lamp into the UV housing (H). •...
-
Page 41: How To View Or Reset The Uv Lamp Timer (C04)
Maintenance How to View or Reset the UV Lamp Timer (C04) (see Section How to Replace the UV The UV Lamp Timer should be reset only after the UV Lamp has been replaced Lamp (UV System only)) . The UV Lamp Timer displays the time left until the UV Lamp needs to be replaced. The Display will show the red UV Lamp Alarm icon blinking when the Timer reaches 0 days. - Page 42 Maintenance How to Reset the UV Lamp Timer Press the Main and “+“ Buttons together to enter the menu. The Display will show C01. Press the Main Button 3 times. The Display will show C04 and “0” days left on the UV Timer.
-
Page 43: Troubleshooting
Troubleshooting Problem Possible causes What to do The Display screen is blank. • The power cord is not plugged • Check that the power cord is plugged in. • No source of electrical power. • Check the source of electrical power. - Page 44 Troubleshooting Problem Possible causes What to do • The system may have been in • Recirculate the water in the Section How to STANDBY mode for a while. system. See recirculate water manually • The Product resistivity is below before dispensing. the Resistivity Setpoint set in •...
-
Page 45: Ordering Information
Ordering Information Catalogue Numbers for Simplicity Systems For 230 VAC, 120 VAC, 100 VAC: 0 = Simplicity V = Simplicity UV Catalogue Numbers for Consumables Consumable Item Catalogue Number SimpliPak 1 SIPK0SIA1 SimpliPak 2 SIPK0SIX2 SimpliPak 3 SIPK0SIX3 Millex® Vent Filter (0.45 µm) – 10/box SLFH02510 SimFilter Final Filter (0.05 µm) –... - Page 46 Quick access to most common procedures Contacting Millipore® SAS ............................2 How to recirculate water manually before dispensing ..................23 How to Replace the Final Filter ..........................29 How to Replace the UV Lamp (UV System only) ....................32 How to Replace the SimpliPak cartridge ........................ 26...
