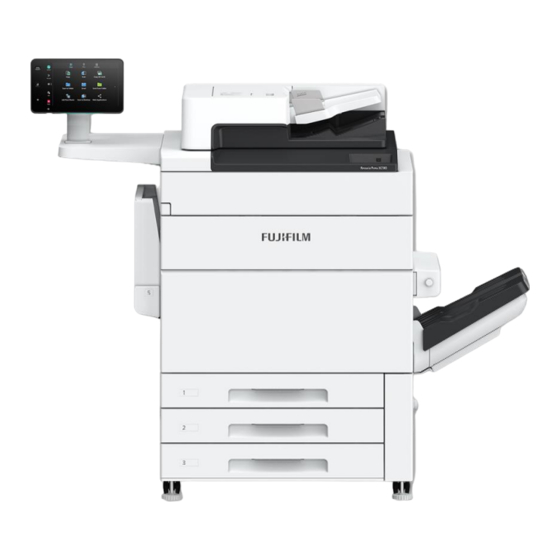

FujiFilm Revoria Press SC180 Quick Reference Notes
Daily care
Hide thumbs
Also See for Revoria Press SC180:
- Error code list (124 pages) ,
- Reference manual (40 pages) ,
- Quick reference notes (18 pages)
Subscribe to Our Youtube Channel
Related Manuals for FujiFilm Revoria Press SC180
Summary of Contents for FujiFilm Revoria Press SC180

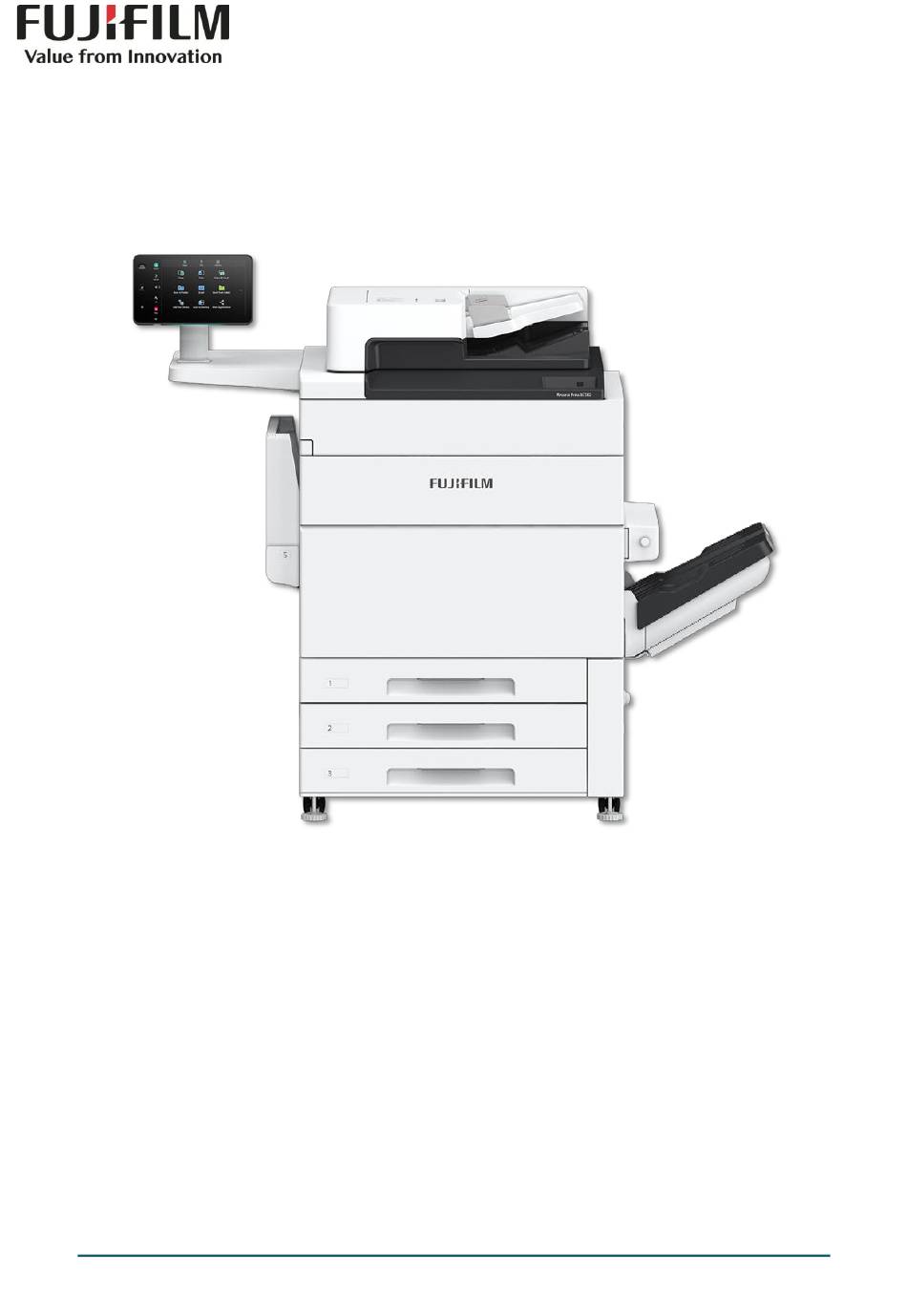

- Page 1 Quick Reference Notes – Daily Care 簡易操作 -日常保養 Revoria Press SC180 Prepared by Customer Training Team © FUJIFILM Business Innovation Hong Kong Limited...
-
Page 2: Table Of Contents
Transfer Units 轉印元件 ......................6 Replacing Toner 更換碳粉匣 ....................9 Confirm the status of supplies 確認耗材狀態 ..............9 Scan QR Code OR Click here for more instruction. 請掃描 QR Code 或者點擊這裡查看更多使用説明。 For more online support information please visit 更多相關資料，請訪問以下網址： https://support-fb.fujifilm.com... -
Page 3: Clear Paper Jam 夾紙排解
夾紙排解 LEAR APER / 自動雙面送稿裝置 1.1 D UPLEX UTOMATIC OCUMENT EEDER 1. 提起護蓋前的把手，開啟護蓋直到停止位 1. Pull up the front handle of the cover and 置。 open the cover until it stops. 2. 清除原稿。 2. Remove the document. 3. 原稿夾在吸入部時，可從左側蓋子進去清 3. If the document is caught in the entry, 除原稿。... - Page 4 4. 輸出口有原稿時，請提起送稿台，朝輸出 4. If the document is caught in the exit area, 方向拉取出來。 lift the Document Feeder Tray and pull the document toward the exit. 5. 打開原稿蓋，拉下拉桿，開啟反面掃描 5. Open the Document Cover, pull down the 部，取出原稿。 handle to open the Side 2 scanner, and then remove the document.
-
Page 5: Inside Lower Left Cover 左下蓋內部
左下蓋內部 1.2 I NSIDE OWER OVER 1. 打開左下蓋。 1. Open the Lower Left Cover. 2. 清除卡住的紙張。 2. Remove the jammed paper. 右側面部 1.3 R IGHT 1. 打開右下蓋。 1. Open the Lower Right Cover. 2. 清除卡住的紙張。 2. Remove the jammed paper. Page 3 of 10... -
Page 6: Trays 紙盤
紙盤 RAYS 1, 2 & 3 紙盤 1, 2 & 3 2.1 P APER RAYS 1. 將發生卡紙的紙盤完全拉出。 1. Pull out the Paper Tray where the paper jam occurred until it stops. 2. 清除卡住的紙張。 2. Remove the jammed paper. Page 4 of 10... -
Page 7: Bypass Tray (Tray 5) 手送紙盤 (紙盤 5)
5) 手送紙盤 (紙盤 5) 2.2 B YPASS 1. 清除卡住的紙張。 1. Remove the jammed paper. Page 5 of 10... -
Page 8: Transfer Units 轉印元件
轉印元件 RANSFER NITS 1. 打開前蓋。 1. Open the Front Cover. 2. 將轉印元件的拉桿 [2] 往右旋轉直到呈水平 2. Turn the handle [2] of the Transfer Unit to 為止( the right until it becomes horizontal ( )，再將轉印元件往前方拉開到停止 位置( )。 and pull the Transfer Unit out to the front ... - Page 9 3. 清除 [2a] 卡住的紙張。向右拉開 [2b] 拉 3. Remove the jammed paper at [2a]. Move 桿，清除卡住的紙張。 the handle [2b] to the right and remove the jammed paper. 5. 清除 [2c] 卡住的紙張。 4. Remove the jammed paper at [2c]. 5. 提起拉桿 [2d] ( ...
- Page 10 6. Move the handle [2f] down and remove 6. 拉下拉桿 [2f]，清除卡住的紙張。 the jammed paper. Page 8 of 10...
-
Page 11: Replacing Toner 更換碳粉匣
更換碳粉匣 EPLACING ONER 確認耗材狀態 4.1 C ONFIRM THE STATUS OF SUPPLIES 1. 若要顯示各耗材的狀況，請點選 。 1. To display the consumables progress, tap 2. 點選【機器確認(計量確認)】 。 2. Tap on [Device Status]. 3. 點選【耗材確認】。 3. Tap on [Supplies]. Page 9 of 10... - Page 12 4. 更換的方法請參考耗材外盒上所記載的步 4. For the replacement method, refer to the 驟。 steps provided on the box of the consumable. Page 10 of 10...
- Page 13 Customer Support Center 2513-2513 FUJIFILM and FUJIFILM logo are registered trademarks or trademarks of FUJIFILM Corporation. Revoria, Revoria Press are trademark of FUJIFILM Business Innovation Corp.
