Fujifilm INSTAX SHARE SP-2 Smartphone Printer Manual

After reading this User's Guide, keep it in a safe, easy to find place where you can refer to it if needed.

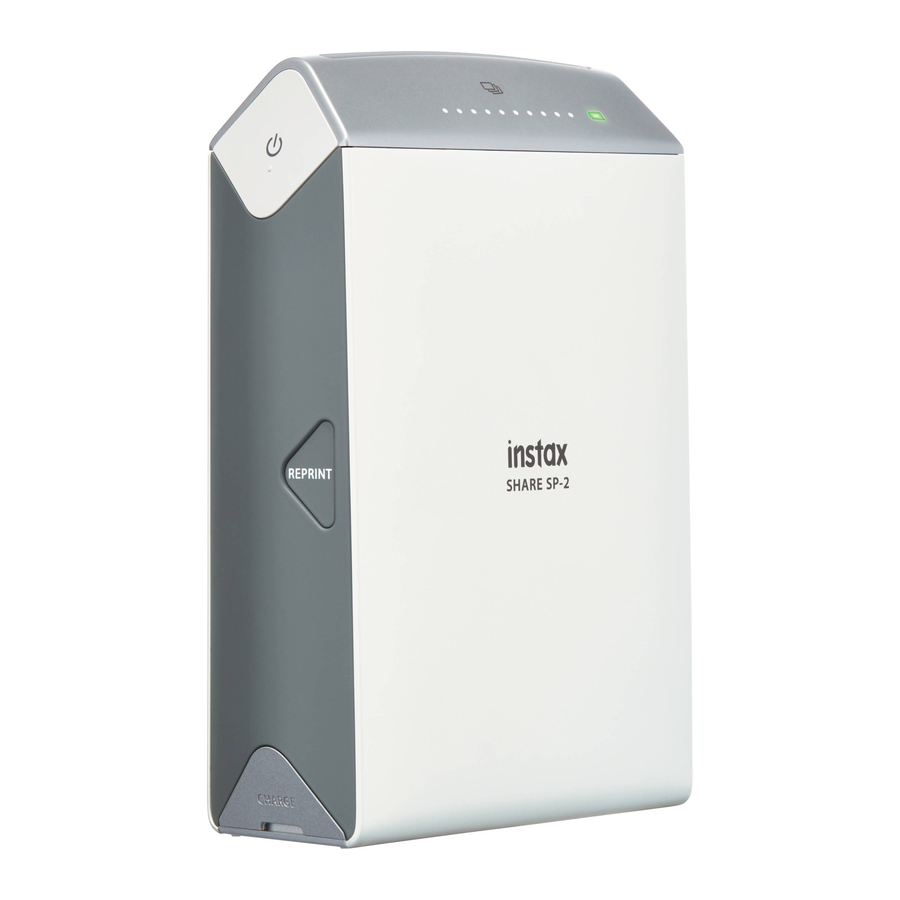

Parts Name

1. Print exit
2. POWER button
3. REPRINT button
4. USB connector cover
5. USB connector
6. Film remaining LED
7. Battery remaining LED
8. Back cover lock
9. Back cover
10. Battery cover

Before Use

Inserting/Charging the Battery

Inserting the Battery

1. Push up the battery cover lock to open the battery cover.
2. Insert the battery according to the arrow on it. Make sure the yellow line on the battery aligns with the mark on the printer.
3. Push the battery cover lock until it clicks into place.

Charging the Battery

Connect the printer and an AC power adapter supplied with your smartphone using the supplied USB cable, then connect the AC power adapter to an indoor power outlet. The battery remaining LED indicates the battery charge status. For details, see the table on the right column.

• Use an AC adapter to meet the rated output below: DC 5.0 V/1000 mA
• You can print an image while charging is in progress.
• Charging time is approximately 90 minutes.

Charging Indicator

Loading the INSTAX mini Film Pack

1. Press down the back cover lock and slide it right to open the back cover.

2. Hold both sides of the film pack, align the yellow marks on the printer and the film pack, then insert it straight.

3. Close the back cover. Make sure the back cover lock clicks into place.

4. The film cover (black) is ejected automatically when the back cover is closed. Remove the film cover from the print exit.


Turning on/off the Printer

Press and hold the POWER button for approx. 1 second to turn the printer on or off.

Turning the printer on lights up the battery remaining LED and it turns off after a certain period of time.

If no operation occurs for a certain period of time, the printer turns off automatically.

Checking Remaining Battery Life

Use the battery remaining LED to check when turning the printer on or while printing is in progress.

Connecting and Printing

When establishing connection for the first time

1. Press and hold the POWER button for approx. 1 second to turn the printer on.
   The battery remaining LED lights up and it turns off after a certain period of time.

2. Start the downloaded application "instax SHARE".

3. Select the picture to print or take a picture.

4. Tap "Connect and print".
   Before tapping "Connect and print", tapping on the upper right displays the edit menu. You can add a template or adjust an image on this menu. Tap "Done" to exit from the menu.

5. When a printer is detected, tap "Connect". If multiple printers are detected, select the printer to connect from the list.
   Printer's identifier (SSID) is located on the bottom of the printer.

6. Enter the factory default password (1111) or the one you specified, then tap "OK". The printer starts printing.
   When printing, stabilize the printer by putting it on a steady place such as a desk.

   To reset the password to the factory default (1111), turn the printer on while holding the REPRINT button.
7. When the film has been ejected (the printer stops making a sound), grasp the edge of the film, then take it out. 1 film remaining LED turns off every time you print an image.


When connection is already established

1. Press and hold the POWER button for approx. 1 second to turn the printer on.
   The battery remaining LED lights up and it turns off after a certain period of time.

2. Start the downloaded application "instax SHARE".

3. Select the picture to print or take a picture.

4. Tap "Print".
   The printer starts printing.

   • When printing, stabilize the printer by putting it on a steady place such as a desk.
   • Before tapping "Print", tapping on the upper right displays the edit menu. You can add a template or adjust an image on this menu.
     Tap "Done" to exit from the menu.
5. When the film has been ejected (the printer stops making a sound), grasp the edge of the film, then take it out. 1 film remaining LED turns off every time you print an image.


Reprinting

1. Press the REPRINT button once.

2. Every time you press the REPRINT button, the previous image is reprinted.


Deleting an Image

1. Press and hold the REPRINT button for more than 5 seconds with the printer on.

2. The film remaining LED flashes for 1 second and the image is deleted.


Unloading a used INSTAX mini film pack

When no film is left, all the film remaining LEDs flash slowly. Unload the film pack.

1. Press down the back cover lock and slide it right to open the back cover.

2. Grasp the rectangular holes on the film pack, then pull it out straight.


About the LED Indication

Film remaining LED indication

The film remaining LED indicates film remaining, printer operation, or error warning.

1 film remaining LED turns off every time you print an image, and flashes slowly to indicate no film remains.

See the table below for other indication patterns.

Battery remaining LED indication

The battery remaining LED indicates the printer status while charging the battery, or battery life of the printer.

SPECIFICATIONS

instax SP-2

* Specifications above are subject to change for improvement.

TROUBLE SHOOTING

During printing

LED status

Printed pictures

IMPORTANT SAFETY NOTICE

This product has been designed with safety in mind, and to provide safe service when handled correctly and in accordance with the User's Guide and instructions. It is important that both the product and the INSTAX film are handled properly and used only to print pictures as instructed in this User's Guide and in the INSTAX mini film instructions. For your ease and safety, please follow what is written in this User's Guide. It is also a good idea to keep this User's Guide in a safe, easy to find place where you can refer to it if needed.

This symbol indicates danger, which could result in injury or death. Please follow these instructions.

If the printer (or batteries) becomes hot, emits smoke or a burnt smell or otherwise seems abnormal, immediately remove the batteries. Faults of this nature could start a fire and cause burns. (Take particular care to avoid burns when removing the batteries or pull out the USB cable.)

If the printer is dropped into water or if water or metal or other foreign objects get inside the printer, immediately remove the batteries, disconnect the AC power adapter and unplug the AC power adapter from the power outlet. Faults of this nature could cause the printer to overheat or catch fire.

Do not use this printer in places where there is flammable gas or near open gasoline, benzine, paint thinner or other unstable substances which can give off dangerous vapors. Faults of this nature could cause the printer to explode or catch fire and cause burns.

Never take apart the batteries. Do not subject them to heat, throw them into an open fire, attempt to recharge them, short-circuit them, drop them, or apply impact to them. Doing so could cause the batteries to explode.

Use only the type of batteries specified in your printer's User's Guide. Faults of this nature could cause the printer to overheat or catch fire.

Make sure batteries are stored in a safe, secure place and well out of the reach of any infants, young children or pets. The batteries could be accidentally swallowed by young children or pets. If this occurs, immediately seek medical treatment.

Only use the specified battery designated for use with the printer. In addition, do not use the printer with a power supply voltage other than that indicated. The use of other batteries could cause the printer to overheat or catch fire.

Never attempt to take this product apart. You may be injured.

If anything is wrong with the printer, never attempt to repair it by yourself. You may be injured.

If this product is dropped or damaged so that the inside is showing, do not touch it. Contact your FUJIFILM dealer.

Do not touch any parts or projecting parts inside the back cover. You may be injured.

Never get this product wet or handle it with wet hands. Doing so may result in an electric shock.

Do not mix new and old batteries or batteries of different types. Also make sure that the battery C and D polarities are correct. A damaged battery or electrolyte leakage may cause a fire, injury, and contaminate the environment.

If the printer will be left unused for a long period (because you are traveling, etc), remove the batteries, disconnect the AC power adapter and unplug the USB cable. Failing to do so could cause a fire.

Do not move the printer while the USB cable is still connected to it. Doing so could damage the USB cable and cause a fire or electric shock.

Keep out of the reach of small children. This product could cause injury in the hands of a child.

Do not cover or wrap the printer or the AC power adapter in a cloth or blanket. This can cause heat to build up and distort the casing or cause a fire.

When using the printer, make sure that the battery cover is attached; otherwise, you may be injured.

The "CE" mark certifies that this product satisfies the requirements of the EU (European Union) regarding safety, public health, environment and consumer protection.("CE" is the abbreviation of Conformité Européenne.)

Hereby, FUJIFILM, declares that this printer is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

COMMON SENSE PRINTER CARE

PRINTER CARE

1. Your printer is a precision instrument. Do not get it wet or drop it. Also, do not expose to sand.
2. If you are not using your printer for a long period, unload the battery and keep it where it will be safe from heat, dust, and moisture.
3. Do not use solvent such as thinner and alcohol to remove dirt.
4. Keep the film chamber and printer interior clean to avoid damaging films.
5. In hot weather, do not leave your printer in hot places such as in a car or on the beach. Do not leave it in damp places for long periods.
6. Moth repellent gas such as naphthalene may affect your printer and prints. Be careful to keep your printer or prints in a chest or bureau.
7. Because your printer is software-controlled, there is the chance that on rare occasions malfunction. If you experience incorrect operation, reset by removing the batteries and then reloading them after a while.
8. Note that the temperature range within which your printer can be used is +5°C to +40°C (+41°F to +104°F).
9. Do not use the printer in aircraft, hospitals or other locations where the use of mobile phones is prohibited.
10. If the printer causes problems with radio or TV reception, move the printer further away from the radio or TV.
11. When printing images, carefully read the owner's manual for the sending device being used and ensure that the device's operating requirements are met.
12. Take great care to ensure that printed materials do not violate copyright, image rights, privacy or other personal rights and do not off end public decency. Actions that violate the rights of others, are contrary to public decency or constitute a nuisance may be punishable by law or otherwise legally actionable.

Cautions during printing

INSTAX mini FILM AND PRINT CARE

See FUJIFILM INSTAX mini film for film use instructions. Follow all instructions for safe and proper use.

1. Keep the film in a cool and dry place. Do not leave the film in a place where the temperature is extremely high (e.g., in a closed car) for many hours.
2. When you load a film pack, use the film as soon as possible.
3. If the film has been kept in a place where the temperature is extremely high or low, bring it to room temperature before starting to print pictures.
4. Be sure to use the film before the expiration or "Use Before" date.
5. Avoid airport checked luggage inspection and other strong X-ray illumination. The effect of fogging, etc. may appear on unused film. We recommended that you carry the printer and/or the film onto the aircraft as carry-on luggage. (Check with each airport for more information.)
6. Avoiding strong light, keep the developed prints in a cool and dry place.
7. Do not puncture, tear, or cut INSTAX mini film. If film becomes damaged, do not use.

Cautions on handling the film and prints

For details, refer to the instructions and warnings on FUJIFILM INSTAX mini film.

Wireless Network Devices: Cautions

Read the following notices before using the printer's built-in wireless transmitter.

• Use only as part of a wireless network.
  FUJIFILM does not accept liability for damages resulting from unauthorized use. Do not use in applications requiring a high degree of reliability, for example in medical devices or other systems that may directly or indirectly impact human life. When using the device in computer and other systems that demand a greater degree of reliability than wireless networks, be sure to take all necessary precautions to ensure safety and prevent malfunction.
• Use only in the country in which the device was purchased.
  This device conforms to regulations governing wireless network devices in the country in which it was purchased. Observe all location regulations when using the device. FUJIFILM does not accept liability for problems arising from use in other jurisdictions.
• Wireless data (images) may be intercepted by third parties.
  The security of data transmitted over wireless networks is not guaranteed.
• Do not use the device in locations subject to magnetic fields, static electricity, or radio interference.
  Do not use the transmitter in the vicinity of microwave ovens or in other locations subject to magnetic fields, static electricity, or radio interference that may prevent reception of wireless signals. Mutual interference may occur when the transmitter is used in the vicinity of other wireless devices operating in the 2.4 GHz band.
• The wireless transmitter operates in the 2.4 GHz band using DSSS and OFDM modulation.
• This device operates on the same frequency as commercial, educational, and medical devices and wireless transmitters.
  It also operates on the same frequency as licensed transmitters and special unlicensed low-voltage transmitters used in RFID tracking systems for assembly lines and in other similar applications.
• To prevent interference with the above devices, observe the following precautions.
  Confirm that the RFID transmitter is not in operation before using this device. Should you observe that the device causes interference in licensed transmitters used for RFID tracking, immediately choose a new operating frequency for this device to prevent additional interference. If you notice that this device causes interference in low-voltage RFID tracing systems, contact a FUJIFILM representative.
• Certification marks acquired by the printer are located inside the film chamber.

Handling the Battery

• Make sure that you use your printer correctly. Read these safety notes and your User's Guide carefully before use.
• After reading these safety notes, store them in a safe place.

This symbol indicates danger, which could result in injury or death. Please follow these instructions.

This symbol indicates possible damage, which could result in injury to other people or damage to an object. Please follow these instructions. Please handle the product properly.

Prohibited	Do not use the battery except as specified. Load the battery as shown by the indicator.
Prohibited	Do not heat, change or take apart the battery. Do not drop or subject the battery to impacts. Do not shortcircuit the battery. Do not store the battery with metallic products. Do not charge the battery using a charger other than a specified one. Any of these actions can cause the battery to burst or leak and cause fire or injury as a result.
Prohibited	Do not use voltages other than the power supply voltage shown. The use of other power sources can cause a fire.
Prohibited	If the battery leaks and fluid gets in contact with your eyes, skin or clothing, flush the affected area with clean water and seek medical attention or call an emergency number right away.
Required	Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
Required	Dispose of used batteries according to the instructions. When discarding, cover the battery terminals with insulation tape. Contact with other metallic objects or batteries could cause the battery to ignite or burst.

Required	When you are cleaning the printer or you do not plan to use the printer for an extended period, remove the battery. Failure to do so can cause a fire or electric shock.
Required	If a problem arises, turn the printer off and remove the battery. Continued use of the printer when it is emitting smoke, is emitting any unusual odor, or is in any other abnormal state can cause a fire or electric shock. Contact your FUJIFILM dealer.

The Battery

The following describes the proper use of batteries and how to prolong their life. Incorrect use can shorten battery life or cause leakage, overheating, fire, or explosion.

The battery is not charged at shipment. Charge the battery completely before use.

• Notes on the Battery
  The battery gradually loses its charge when not in use. Charge the battery one or two days before use.
  Battery life can be extended by turning the printer off when not in use.
  Battery capacity decreases at low temperatures; a depleted battery may not function at when cold. Keep a fully charged spare battery in a warm place and exchange as necessary, or keep the battery in warm place and insert it in the printer only when shooting. Do not place the battery in direct contact with hand warmers or other heating devices.
• Charging the Battery
  Charge the battery using the supplied USB cable. Charging times will increase at ambient temperatures below +10°C (+50°F) or above +35°C (+95°F). Do not attempt to charge the battery at temperatures above 40°C (+104°F); at temperatures below +5°C (+41°F), the battery will not charge.
  Do not attempt to recharge a fully charged battery. The battery does not however need to be fully discharged before charging.
  The battery may be warm to the touch immediately after charging or use. This is normal.
• Battery Life
  At normal temperatures, the battery can be recharged about 300 times. A noticeable decrease in the length of time the battery will hold a charge indicates that it has reached the end of its service life and should be replaced.
• Storage
  Performance may be impaired if the battery is left unused for extended periods when fully charged. Deplete the battery fully before storing it.
  If the printer will not be used for an extended period, remove the battery and store it in a dry place with an ambient temperature of from +15°C to +25°C (+59°F to +77°F). Do not store in locations exposed to extremes of temperature.
•
  Handling the Battery
  • Do not affix stickers or other objects to the battery.
  • Do not tear or peel off the external label.
  • Keep the terminals clean.
  • The battery and printer body may become warm to the touch after extended use. This is normal.
• Disposal
  Dispose of used batteries accord with local regulations.
