FujiFilm instax SHARE SP-2 User Manual

Smartphone printer
Hide thumbs Also See for instax SHARE SP-2:
Table of Contents

Advertisement

Quick Links

JP
EN
使用説明書/困ったときには/安全にご使用いただくために
User's Guide/Trouble shooting/Safety precautions
BOB708-100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the instax SHARE SP-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FujiFilm instax SHARE SP-2

Summary of Contents for FujiFilm instax SHARE SP-2

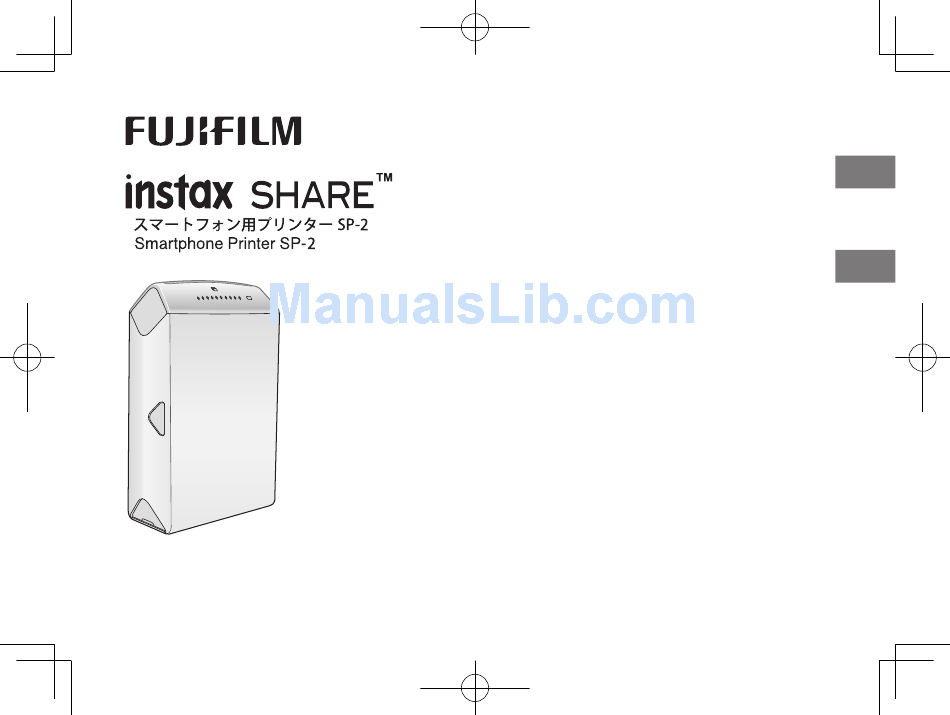

  • Page 1 使用説明書/困ったときには/安全にご使用いただくために User’s Guide/Trouble shooting/Safety precautions BOB708-100...
  • Page 2 日本語: 3ページから27ページをご覧ください。 ENGLISH: See pages 29 to 55. © 2016 FUJIFILM Corporation. All rights reserved.

  • Page 3: Table Of Contents

    ENGLISH Contents Parts Name ........... 30 Unloading a used INSTAX mini film Before Use ..........31 pack ............39 Inserting/Charging the Battery ..31 About the LED Indication....40 Inserting the Battery ........31 SPECIFICATIONS ......... 41 Charging the Battery ........32 TROUBLE SHOOTING ......

  • Page 4: Parts Name

    Parts Name Print exit USB connector Back cover POWER button Film remaining LED Battery cover REPRINT button Battery remaining LED USB connector cover Back cover lock...

  • Page 5: Before Use

    Before Use Before using the printer, install the instax SHARE application on your device. • When you are using an Android OS device, search for “instax SHARE” in the Google Play, then install the application. * System requirements of an Android OS device: Android Ver 4.0.3 or later and Google Play are installed. • When you are using an iOS device, search for “instax SHARE”...

  • Page 6: Charging The Battery

    Inserting/Charging the Battery (Continued) Charging the Battery Charging Indicator Indication Battery status/Action Lights red (ON) Charging is in progress. Flashes red (OFF) Lights green (ON) Charging is more than half Flashes green (OFF) completed. Flashes green, then Charging is completed. goes off (OFF) Flashes green and An error is being occurred.

  • Page 7: Loading The Instax Mini Film Pack

    • When you load the film pack, never press the two rectangular holes on the back of the film pack. • Never use a film pack beyond its shelf life; otherwise, it may damage the printer. Use FUJIFILM instax mini Color Film only. No other type of film (e.g. FUJIFILM instax Digital Mobile Printer Photo Pack) can be used.

  • Page 8: Turning On/Off The Printer

    Turning on/off the Printer Loading the INSTAX mini Film Pack (Contunued) Close the back cover. Make sure the Press and hold the POWER button for approx. 1 second back cover lock clicks into place. to turn the printer on or off. Turning the printer on lights up the battery remaining LED and it turns off after a certain period of time.

  • Page 9: Connecting And Printing

    Connecting and Printing Ÿ Wireless LAN Setup for iOS Devices When you are using an iOS device, follow the procedure below to perform wireless LAN setup. 1. Select “ON” for “Wi-Fi” in the “Settings” menu of your device. 2. Tap the network name (printer name) under “Choose a Network”.
  • Page 10 Connecting and Printing (Continued) ⁄ ¤ Enter the factory default Tap “Connect and print”. password (1111) or the one you specified, then tap “OK”. Before tapping “Connect The printer starts printing. and print”, tapping 1111 When printing, stabilize the the upper right displays printer by putting it on a the edit menu.

  • Page 11: When Connection Is Already Established

    Connecting and Printing When connection is already established: Select the picture to print or take a picture. Press and hold the POWER button for approx. 1 second to turn the printer on. Tap “Print”. ⁄ The battery remaining LED lights up and it The printer starts printing.

  • Page 12: Reprinting

    Connecting and Printing (Continued) Reprinting Press the REPRINT button once. Ÿ When the film has been ejected (the printer stops making a sound), grasp the edge of the film, then take it out. 1 film remaining LED turns off every time you print an image.

  • Page 13: Deleting An Image

    Unloading a used INSTAX mini film pack Deleting an Image Press and hold the REPRINT button for more than 5 When no film is left, all the film remaining LEDs flash seconds with the printer on. slowly. Unload the film pack. Ÿ...

  • Page 14: About The Led Indication

    About the LED Indication Film remaining LED indication Battery remaining LED indication The film remaining LED indicates film remaining, The battery remaining LED indicates the printer status printer operation, or error warning. while charging the battery, or battery life of the printer. 1 film remaining LED turns off every time you print an See page 32 for indications while charging the battery.

  • Page 15: Specifications

    SPECIFICATIONS instax SP-2 Recording method 3-color exposure with OLED Film Fujifilm INSTAX mini instant color film (sold separately) Photo capacity 10 prints/pack Image size 62 mm×46 mm Supported image size 800×600 dots Printing resolution 320 dpi Printing levels 256 levels per color (RGB) Interface Standard compliance: IEEE802.11b/g/n...

  • Page 16: Trouble Shooting

    TROUBLE SHOOTING During printing Problems Possible Causes Solutions The printer cannot be 1 The battery power is low. (The 1 Charge the battery fully. turned on. battery remaining LED is flashing 2 Insert the battery correctly. red.) 3 Press and hold the POWER button for approx. 1 2 The battery is not inserted correctly.
  • Page 17 Solutions The film pack cannot 1 The film pack is not for your printer. 1 Use FUJIFILM INSTAX mini instant color film only. be loaded, or cannot be 2 The film pack is not being loaded (No other films can be used.) loaded smoothly.

  • Page 18: Possible Causes

    LED status Problems Possible Causes Solutions ● A printer error has occurred. ● Turn the printer on. The film remaining LED flashes rapidly, then the printer turns itself off. ● The battery power is low. ● Charge the battery fully. The battery remaining LED flashes red slowly, When the remaining battery life is low, you then the printer turns...
  • Page 19 Printed pictures Problems Possible Causes Solutions ● The back cover was opened before ● Do not open the back cover until you have used Part or whole finished print is white. you have used up the film. up the film; otherwise, the rest of the film may be exposed and ruined for use.

  • Page 20: Important Safety Notice

    IMPORTANT SAFETY NOTICE This product has been designed with safety in mind, and to provide safe service when handled correctly and in ac- cordance with the User’s Guide and instructions. It is important that both the product and the INSTAX film are handled properly and used only to print pictures as instructed in this User’s Guide and in the INSTAX mini film instructions.
  • Page 21 If anything is wrong with the printer, never attempt to repair it by yourself. You may be injured. If this product is dropped or damaged so that the inside is showing, do not touch it. Contact your FUJIFILM dealer. Do not touch any parts or projecting parts inside the back cover. You may be injured.
  • Page 22 20cm or more away from person’s body in normal use position. FCC CAUTION Changes or modifications not expressly approved by FUJIFILM responsible for compliance could void the user’s authority to operate the equipment.
  • Page 23 By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. If your equipment contains easy removable batteries or accumulators, please dispose these separately according to your local requirements.
  • Page 24 INSTAX mini FILM AND PRINT CARE See FUJIFILM INSTAX mini film for film use instructions. Follow all instructions for safe and proper use. 1 Keep the film in a cool and dry place. Do not leave the film in a place where the temperature is extremely high (e.g., in a closed car) for many hours.
  • Page 25 ■ Use only in the country in which the device was purchased. This device conforms to regulations governing wireless network devices in the country in which it was purchased. Observe all location regulations when using the device. FUJIFILM does not accept liability for problems arising from use in other jurisdictions.
  • Page 26 RFID tracking, immediately choose a new operating frequency for this device to prevent additional interference. If you notice that this device causes interference in low-voltage RFID tracing systems, contact a FUJIFILM representative. ■ Certification marks acquired by the printer are located inside the film chamber.

  • Page 27: Handling The Battery

    Handling the Battery • Make sure that you use your printer correctly. Read these safety notes and your User’s Guide carefully before use. • After reading these safety notes, store them in a safe place. WARNING CAUTION This symbol indicates danger, which could result in injury or This symbol indicates possible damage, which could result in death.
  • Page 28 Required electric shock. Contact your FUJIFILM dealer. The Battery The following describes the proper use of batteries and how to prolong their life. Incorrect use can shorten battery life or cause leakage, overheating, fire, or explosion.
  • Page 29 • The battery and printer body may become warm to the touch after extended use. This is normal. ■ Disposal Dispose of used batteries accord with local regulations. Information for traceability in Europe Information for FUJIFILM in the United Manufacturer: FUJIFILM Corporation States...
  • Page 30     この製品に関するお問い合わせは、 同封の保証書 If you have any inquiries about this product, please に記載の窓口にご連絡いただくか、 下記のウェブサイ トに contact a FUJIFILM authorized distributor, or access the アクセスしてください。 website below.  富士フイルムホームページ ： http://fujifilm.jp/ ●本製品のお問合せ／修理に関するお問い合わせ先 富士フイルム フィルムカメラお客さま相談窓口 TEL 050-3786-1640/FAX 050-3786-2050 受付時間 ： 月曜日～金曜日 9 ： 00～17 ： 40 （土日祝日、 年末年始を除く）...
