TLV PowerDyne HR150A Instruction Manual

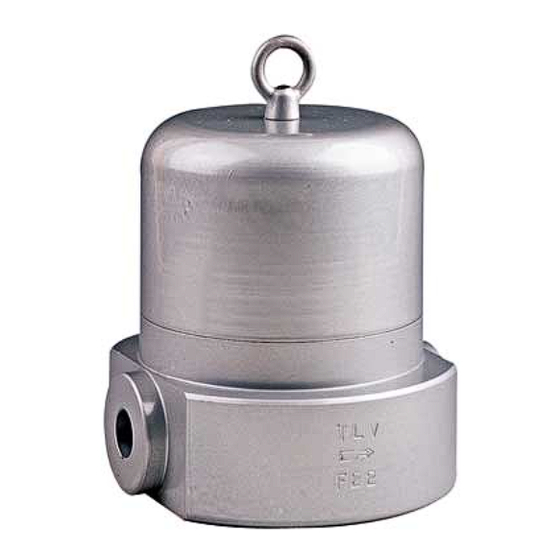

Thermodynamic steam trap
Hide thumbs
Also See for PowerDyne HR150A:
- Instruction manual (24 pages) ,
- Instruction manual (12 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TLV PowerDyne HR150A
Summary of Contents for TLV PowerDyne HR150A

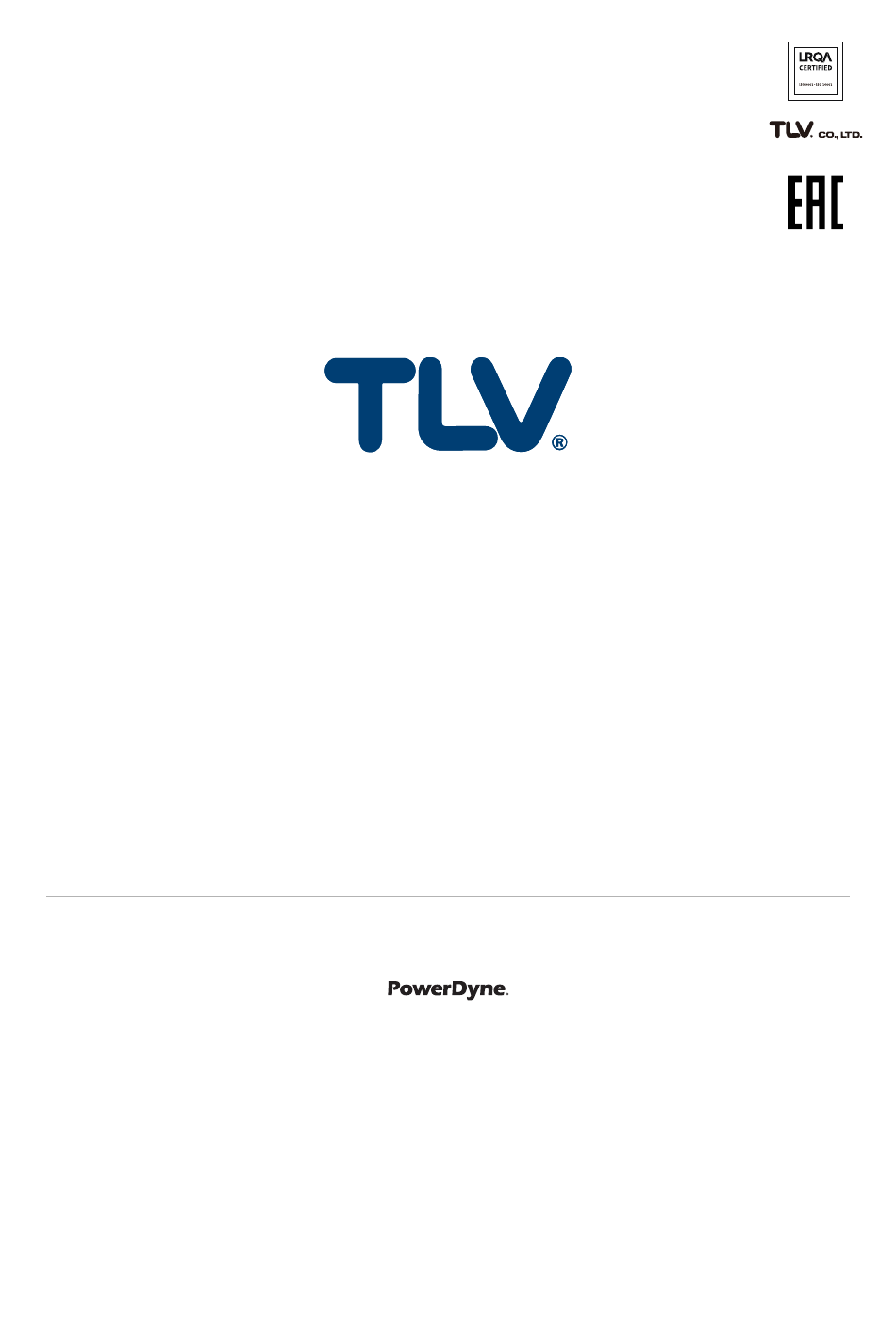

- Page 1 ISO 9001 ISO14001 Manufacturer Kakogawa, Japan is approved by LRQA Ltd. to ISO 9001/14001 Instruction Manual Thermodynamic Steam Trap Featured Models: HR150A/HR260A 172-65166M-08 Publication date 30 August 2023 Copyright © 2023 TLV CO., LTD.
-
Page 2: Table Of Contents
Table of Contents Introduction ..........................3 Safety Considerations ......................4 Checking the Piping ........................6 Specifications ........................... 7 Configuration ..........................8 Installation ..........................9 Maintenance ........................... 10 Disassembly/Reassembly ...................... 11 Troubleshooting ........................14 TLV EXPRESS LIMITED WARRANTY ................... 15 Service ........................... 17... -
Page 3: Introduction
Introduction Thank you for purchasing the TLV PowerDyne steam trap. This product has been thoroughly inspected before being shipped from the factory. When the product is delivered, before doing anything else, check the specifications and external appearance to make sure nothing is out of the ordinary. Also be sure to read this manual carefully before use and follow the instructions to be sure of using the product properly. -
Page 4: Safety Considerations
• The three types of cautionary items above are very important for safety: be sure to observe all of them as they relate to installation, use, maintenance and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions. - Page 5 Caution Use only under conditions in which no water hammer will occur. The impact of water hammer may damage the product, leading to fluid discharge, which may cause burns or other injury.
-
Page 6: Checking The Piping
3. Have isolation valves been installed at the inlet and outlet? If the outlet is subject to back pressure, has a check valve (TLV-CK) been installed? 4. Is the inlet pipe as short as possible, with as few bends as possible, and installed so the liquid will flow naturally down into the product? 5. -
Page 7: Specifications
Specifications Caution Install properly and DO NOT use this product outside the recommended operating pressure, temperature and other specification ranges. Improper use may result in such hazards as damage to the product or malfunctions that may lead to serious accidents. Local regulations may restrict the use of this product to below the conditions quoted. -
Page 8: Configuration
Configuration ⑯ ⑤ ⑫ ⑥ ⑪ ⑩ ④ ② ⑦ ⑨ ③ ⑧ ⑭ ⑮ ① ⑬ Part Name Part Name ✓ Body Screen ✓ Cover Body Bolt ✓ Module Valve Seat Cover Nut ✓ Disc ✓ Eye Nut Guide Pin Spacer Nameplate ✓... -
Page 9: Installation
Installation Caution Install properly and DO NOT use this product outside the recommended operating pressure, temperature and other specification ranges. Improper use may result in such hazards as damage to the product or malfunctions that may lead to serious accidents. Local regulations may restrict the use of this product to below the conditions quoted. -
Page 10: Maintenance
Periodically (at least biannually) the operation should also be checked by using diagnostic equipment, such as a stethoscope, thermometer, TLV TrapMan or TLV Pocket TrapMan. If the product should fail, it may cause damage to piping and equipment, resulting in faulty or low quality products or losses due to steam leakage. -
Page 11: Disassembly/Reassembly
Disassembly/Reassembly Caution Use hoisting equipment for heavy objects (weighing approximately 20 kg (44 lb) or more). Failure to do so may result in back strain or other injury if the object should fall. When disassembling or removing the product, wait until the internal pressure equals atmospheric pressure and the surface of the product has cooled to room temperature. - Page 12 Disassembly/Reassembly of Components Inside the Body Part Name & No. During Disassembly During Reassembly Disc 4 Remove, being careful not to scratch Make sure that the seat surface the lapped surface (lapped side with groove) is facing down, toward the valve seat Module Gasket 7 Remove the gasket and clean sealing Replace with a new gasket...
- Page 13 Exploded View Part Name Part Name Body Screen Cover Body Bolt Module Valve Seat Cover Nut Disc Eye Nut Guide Pin Spacer Nameplate Module Gasket (Large) Flange Module Gasket (Small) Hexagon Nut...
-
Page 14: Troubleshooting
Troubleshooting Caution When disassembling or removing the product, wait until the internal pressure equals atmospheric pressure and the surface of the product has cooled to room temperature. Disassembling or removing the product when it is hot or under pressure may lead to discharge of fluids, causing burns, other injuries or damage. -
Page 15: Tlv Express Limited Warranty
TLV; or 4. disasters or forces of nature or Acts of God; or 5. abuse, abnormal use, accidents or any other cause beyond the control of TLV, TII or TLV group companies; or 6. improper storage, maintenance or repair; or 7. - Page 16 HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR ITS TLV GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO LOST PROFITS, THE COST OF DISASSEMBLY AND SHIPMENT OF THE DEFECTIVE PRODUCT, INJURY TO OTHER PROPERTY, DAMAGE TO BUYER’S OR THE FIRST...
-
Page 17: Service
Service For Service or Technical Assistance: Contact your TLV representative or your regional TLV office. In Europe: Tel: [49]-(0)7263-9150-0 Fax: [49]-(0)7263-9150-50 Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany Tel: [44]-(0)1242-227223 Fax: [44]-(0)1242-223077 Units 7 & 8, Furlong Business Park, Bishops Cleeve, Gloucestershire GL52 8TW, U.K.
