Kogan SMARTERHOME KASMSVDC13B User Manual

Sous vide precision cooker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KOGAN SMARTERHOME
SOUS
VIDE PRECISION COOKER
KASMSVDC13B

Advertisement

Table of Contents
loading

Related Manuals for Kogan SMARTERHOME KASMSVDC13B

Summary of Contents for Kogan SMARTERHOME KASMSVDC13B

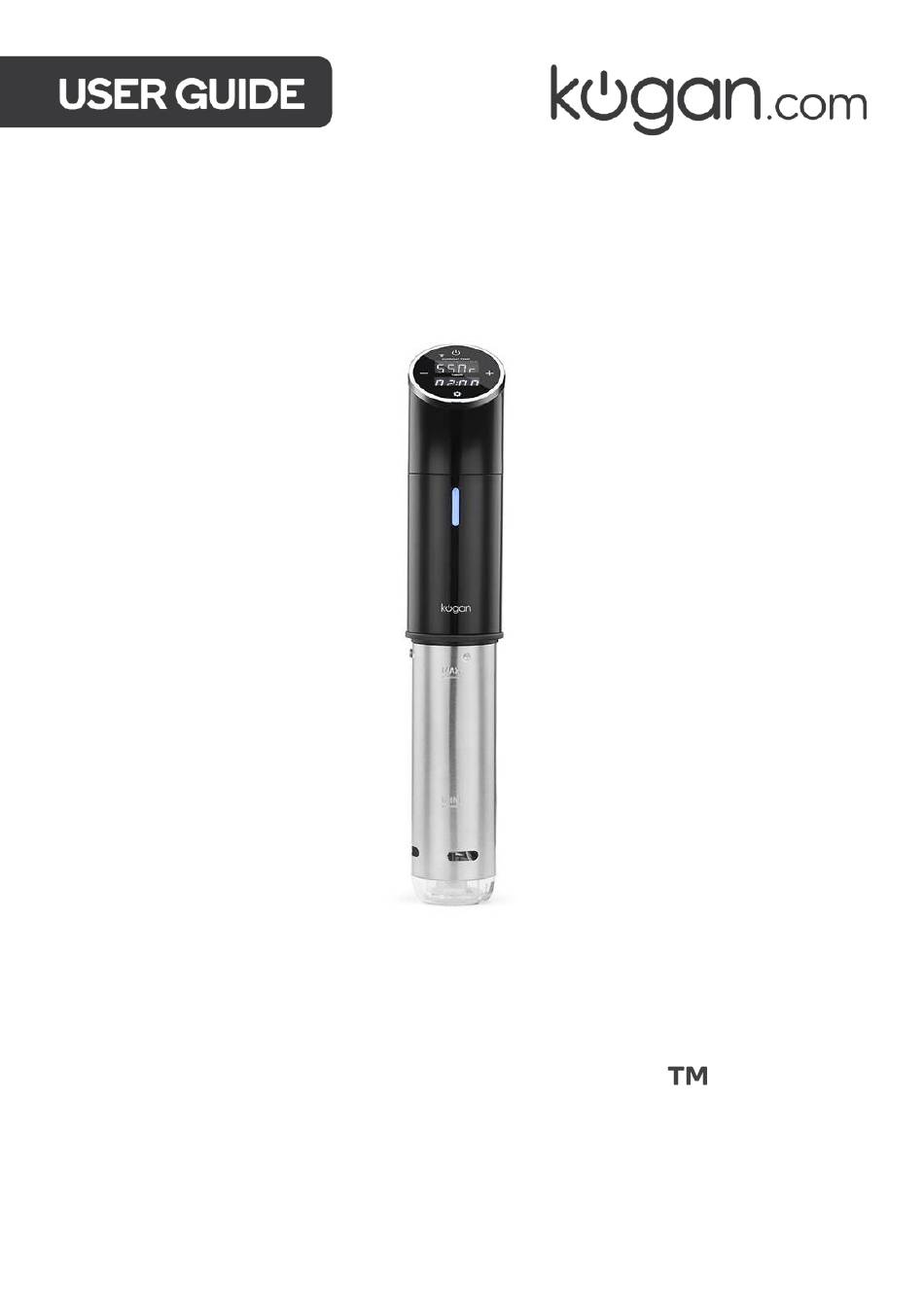

  • Page 1 KOGAN SMARTERHOME SOUS VIDE PRECISION COOKER KASMSVDC13B...

  • Page 2: Table Of Contents

    Safety & Warnings Overview Assembly Connect to SmarterHome Google Home Control Amazon Alex Control Operation Cleaning & Care Troubleshooting Specifications...

  • Page 3: Safety & Warnings

    SAFETY & WARNINGS Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, pass on the operating instructions. This section explains the potential dangers that may arise when operating the sous vide precision cooker and notes many important safety precautions.
  • Page 4 • Sous Vide cooker is designed to be used only with water. • Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move during use. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 5: Overview

    OVERVIEW Display & Controls Clamp Safety screw Stainless steel skirt Maximum and minimum water level Water pump cap...
  • Page 6 Display Wi-Fi Power indicator button Temperature Decrease button Increase button Timer Set button...

  • Page 7: Assembly

    ASSEMBLY Installing the Skirt Hold the unit and align the unlock symbol and the arrow, rotate the skirt in an anti- clockwise direction until the arrow and lock symbol are aligned. Firmly rotate the safety screw.

  • Page 8: Connect To Smarterhome App

    CONNECT TO SMARTERHOME To register: If you already have a SmarterHome The system will automatically recognise your country. If needed, you can manually select your country from the drop-down box. Enter your email address and tap Get Verification Code to continue. A 6-digit code will be sent to the submitted email address.
  • Page 9 When the device is first turned on, it may automatically enter pairing mode (Wi-Fi indicator will be flashing rapidly). Once registered, tap Add Device , or the + right corner, to add a new device through the network. Select the product type from the list of options in the app (Kitchen Appliances → Sous Vide).
  • Page 10 Ensure that the device is in pairing mode, with the Wi-Fi indicator flashing rapidly, The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome device are kept close until connection is complete. After successfully being added, you will have the option to rename the device and listing to enter its control page.
  • Page 11 Add Device Through Bluetooth Ensure Bluetooth is enabled on your mobile phone. Once registered, tap Add Device + in the upper right corner, to add a new device through the network. The app will discover nearby Bluetooth devices. appears. Alternatively, select the product type from the list of options in the app (Kitchen Appliances →...
  • Page 12 Ensure that the device is in pairing mode, with the Wi-Fi indicator rapidly flashing, rapidly The device will commence the pairing process and connect to the app. Ensure the mobile phone and the SmarterHome device are kept close until connection is complete.

  • Page 13: Google Home Control

    GOOGLE HOME CONTROL (top left corner, see arrow in the below screenshot) select Works with Google...
  • Page 14 SmarterHome service. 10. From here, you will be prompted to sign into your SmarterHome account using either your email or mobile phone number, depending on which method you used to register your account.
  • Page 15 app and your devices. 13. Once connected, the app will display any compatible devices linked to your SmarterHome account. From here you can assign them to rooms and set up any routines. Tap on any of the devices to view a list of available commands.

  • Page 16: Amazon Alex Control

    AMAZON ALEXA CONTROL bottom-right and select Skills & Games from the sidebar. SmarterHome skill.
  • Page 17 skill to Alexa. From here, you will be prompted to sign into your SmarterHome account using either your email or mobile phone number, depending on which method you used to register your account.

  • Page 18: Operation

    OPERATION Cooking Container The Sous Vide cooker requires a 6-15L round or rectangular heat resistant container. Firmly lock the product by clamping it on the side of your container. Turning the Sous Vide On/Off Connect the power cord into an electrical outlet. The number icon will flash and the product will enter standby mode.
  • Page 19 Setting the Temperature/Timer Temperature: Press the set button, t - buttons a time to increase/decrease in 0.5°C increments. Press and hold the - buttons to increase/decrease by 5°C increments. The maximum temperature is 90°C, the minimum temperature is 20°C. The default temperature Timer: Press the set button, the timer minutes...
  • Page 20 TIP: As all sous vide cookers operate by heating a water bath to a set temperature, all recipes you find for sous vide cooking can be used with your KOGAN sous vide cooker.
  • Page 21 Recipes There are 68 recipes in the SmaterHome app such as beef, poultry, mutton, pork, seafood, egg, vegetables or fruits. When you select the recipes on the app, the selected recipes will automatically select the temperature and cooking time for user.
  • Page 22 description, ingredients and directions. working.
  • Page 23 The homepage will show the time, temperature of the recipes, also the sous vide display will show the time/temperature as well. Press the power the sous vide display will show the current temperature and remaining time. Work Status Power button You can start/pause cooking by pressing the power button on the app.
  • Page 24 Countdown Timer Countdown timer shows the remaining time in the cooking process. Remaining cooking time Schedule Cooking Time in Advance You can schedule cooking time and temperature in advance, using condition of the automation.

  • Page 25: Cleaning & Care

    • Ensure the unit is disconnected from power before performing any cleaning or maintenance. • Regularly check for signs of damage. If any signs of physical damage are found, cease use immediately and contact help.Kogan.com for support. Skirt/Pump Remove off the safety screw and rotate the skirt counter- clockwise to remove it.

  • Page 26: Troubleshooting

    TROUBLESHOOTING Problem Possible Cause Solution The system will hum due Unit is making a humming to the motor, impeller and This is normal. noise during operation. cooling fan during operation. Push the stainless skirt up into guide groove and turn The stainless-steel skirt is to the right until the hole loose.

  • Page 27: Specifications

    SPECIFICATIONS Power ~220-240V, 50/60Hz, 1200W Insulation level Class I Temperature range 20-90°C Temperature accurate ±0.1°C Timer Maximum 99 hours 59 minutes Disposal This marking indicates that this appliance should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
  • Page 28 Need more information?
