X-MEN™
vs.
STREET FIGHTER™

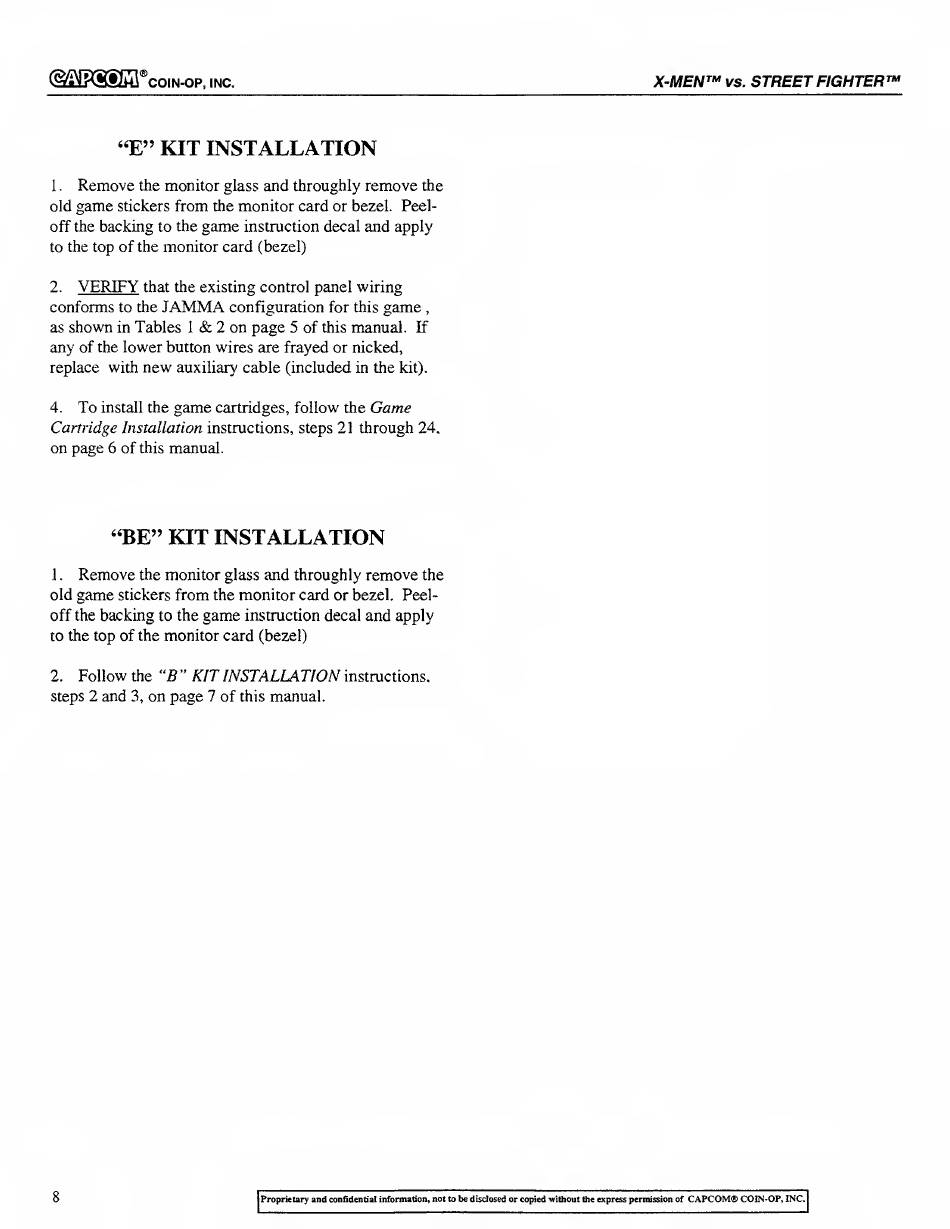

"E"
KIT INSTALLATION
1
.
Remove
the
monitor
glass
and
throughly
remove
the
old
game
stickers
from
the
monitor card
or bezel. Peel-
off the backing to the
game
instruction
decal
and apply
to the
top of
the
monitor card
(bezel)
2.
VERIFY
that the existing control
panel wiring
conforms
to the
JAMMA
configuration
for
this
game
,
as
shown
in
Tables
1
&
2
on page
5
of
this
manual.
If
any of
the
lower button wires
are frayed or nicked,
replace with
new
auxiliary cable (included
in
the
kit).
4.
To
install
the
game
cartridges,
follow
the
Game
Cartridge Installation instructions, steps 21 through 24.
on page 6
of
this
manual.
"BE"
KIT
INSTALLATION
1
.
Remove
the
monitor
glass
and
throughly
remove
the
old
game
stickers
from
the
monitor
card or
bezel.
Peel-
off the
backing
to the
game
instruction decal
and
apply
to the
top of the
monitor card
(bezel)
2.
Follow
the
"B " KIT
INSTALLATION
instructions,
steps
2 and
3,
on page
7 of
this
manual.
