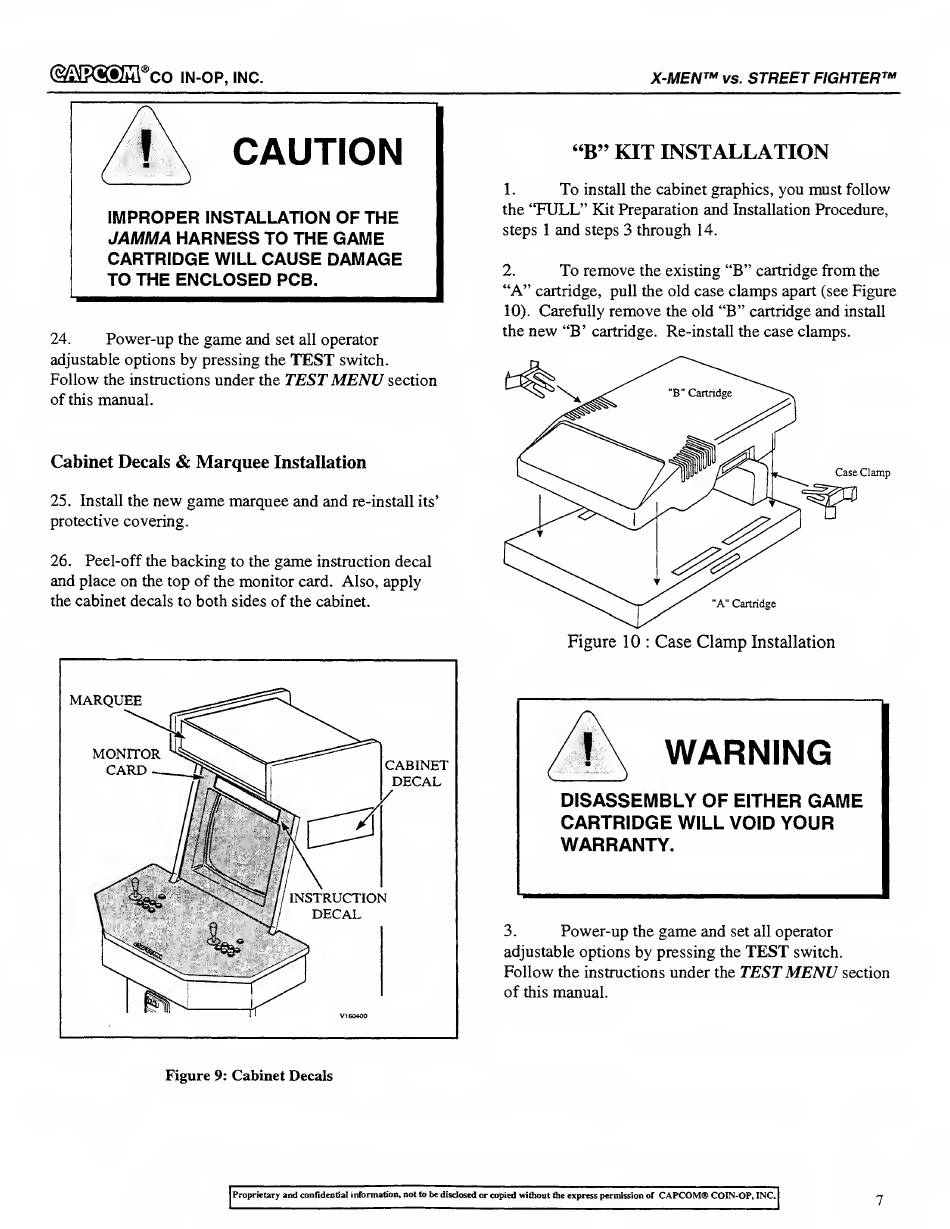

Capcom X-MEN STREET FIGHTER Operator's Manual page 11

sswgcoiyti CO
IN-OP, INC.
X-MEN™
vs.
STREET FIGHTER™
/f\
CAUTION
IMPROPER
INSTALLATION
OF THE
JAMMA
HARNESS TO THE
GAME
CARTRIDGE
WILL
CAUSE DAMAGE
TO THE ENCLOSED
PCB.
24.
Power-up
the
game
and
set
all
operator
adjustable options
by
pressing the
TEST
switch.
Follow
the instructions
under
the
TEST
MENU
section
of
this
manual.
Cabinet Decals
&
Marquee
Installation
25. Install
the
new game
marquee and and
re-install
its'
protective covering.
26. Peel-off the backing
to the
game
instruction decal
and
place
on
the top of the monitor
card.
Also, apply
the cabinet decals
to
both
sides
of the cabinet.
"B"
KIT
INSTALLATION
1
.
To
install
the cabinet graphics,
you must
follow
the
"FULL"
Kit Preparation and
Installation
Procedure,
steps
1
and
steps 3
through
14.
2.
To
remove
the existing
"B"
cartridge
from
the
"A"
cartridge, pull the
old case clamps
apart (see
Figure
10).
Carefully
remove
the old
"B"
cartridge
and
install
the
new
"B'
cartridge. Re-install the case clamps.
/\\
WARNING
DISASSEMBLY OF
EITHER
GAME
CARTRIDGE
WILL VOID
YOUR
WARRANTY.
3.
Power-up
the
game
and
set
all
operator
adjustable options by pressing
the
TEST
switch.
Follow
the instructions
under
the
TEST
MENU
section
of
this
manual.
Figure
9:
Cabinet Decals
Proprietary and confidential information, not to be
disclosed
or copied without the express permission of
CAPCOM®
COIN-OP,
INC.
7
