the battery with the slots on the power
tool. Push the battery in the direction of
the arrow (A) with a little effort until you
hear a characteristic locking sound. To re-
move the battery, press the latch (1) and,
without releasing it, pull the battery in
the direction of the arrow (B).
Do not apply excessive force when in-
stalling the battery. The need for effort
during connection means that the actions
are performed incorrectly. Also, the cause
may be a foreign object in the grooves of
the case.
You can check the battery charge level by
pressing button (1) (Fig. 9) of the battery
charge level indicator, after which the in-
dicators (2) will light up indicating the
charge level.
Installing the belt clip (Fig. 10)
For convenience in work, it is possible to
install a clip. To do this, screw it with a
screw to the corresponding hole.
9. WORKING WITH ELECTRICAL
TOOLS
WARNING!
When working with a hammer drill,
use eye and respiratory protection.
It is recommended to work DHR-
201BC Compact with the power tool
at an ambient temperature of -10 °C
to +50 °C, DHR200, DHR-200BC UL-
TRA of -15 °C to +40 °C
Initial test
Before starting work, install the acces-
sories, lubricate the shank, and start the
power tool with no load. Make sure that
the power tool is free of extraneous noise
and that all switches and buttons are
functioning properly. There should be no
traces of grease on the power tool.
On/off (Fig. 11)
The power tool is turned on by pressing
the power button. To stop the operation
of the power tool, you must release the
power button.
The rotation frequency can be smoothly
adjusted by increasing or decreasing the
force of pressing the power button.
EU-DHR0823001-0823002
Switching the direction of rotation/
locking on (Fig. 11)
The rotation direction switch allows you
to change the rotation (right or left).
Locking the power button prevents the
power tool from being switched on ac-
cidentally. When the switch is set to the
middle position, the power button is
locked. The lock must be applied when
the power tool is not in use, during its
maintenance, or when moving the pow-
er tool.
Operation mode switch (Fig. 12)
The DHR-200 rotary hammer has 2 modes
of operation, the DHR-200BC ULTRA rota-
ry hammer has 4 modes of operation.
To change the operating mode (for
DHR-200 mod.), press the switch lock (13)
(Fig. 1) and turn the switch, setting it op-
posite the corresponding mark.
To change the operating mode (for the
DHR200BC ULTRA mod.), turn the switch
(3) (Fig. 2), setting it opposite the corre-
sponding mark.
To change the operation mode, turn the
switch to the required mode.
For drilling in concrete, brick, masonry
and stone, turn the switch to the «ham-
mer drilling (drilling)» position.
To drill wood, metal or other synthetic
materials, turn the switch to the «drill»
position.
To chisel the material, turn the switch to
the
«chiselling» position.
If it is necessary to change its position
when using a flat bit in gouging mode,
you need to turn the switch to the «Ad-
justing bit position» position.

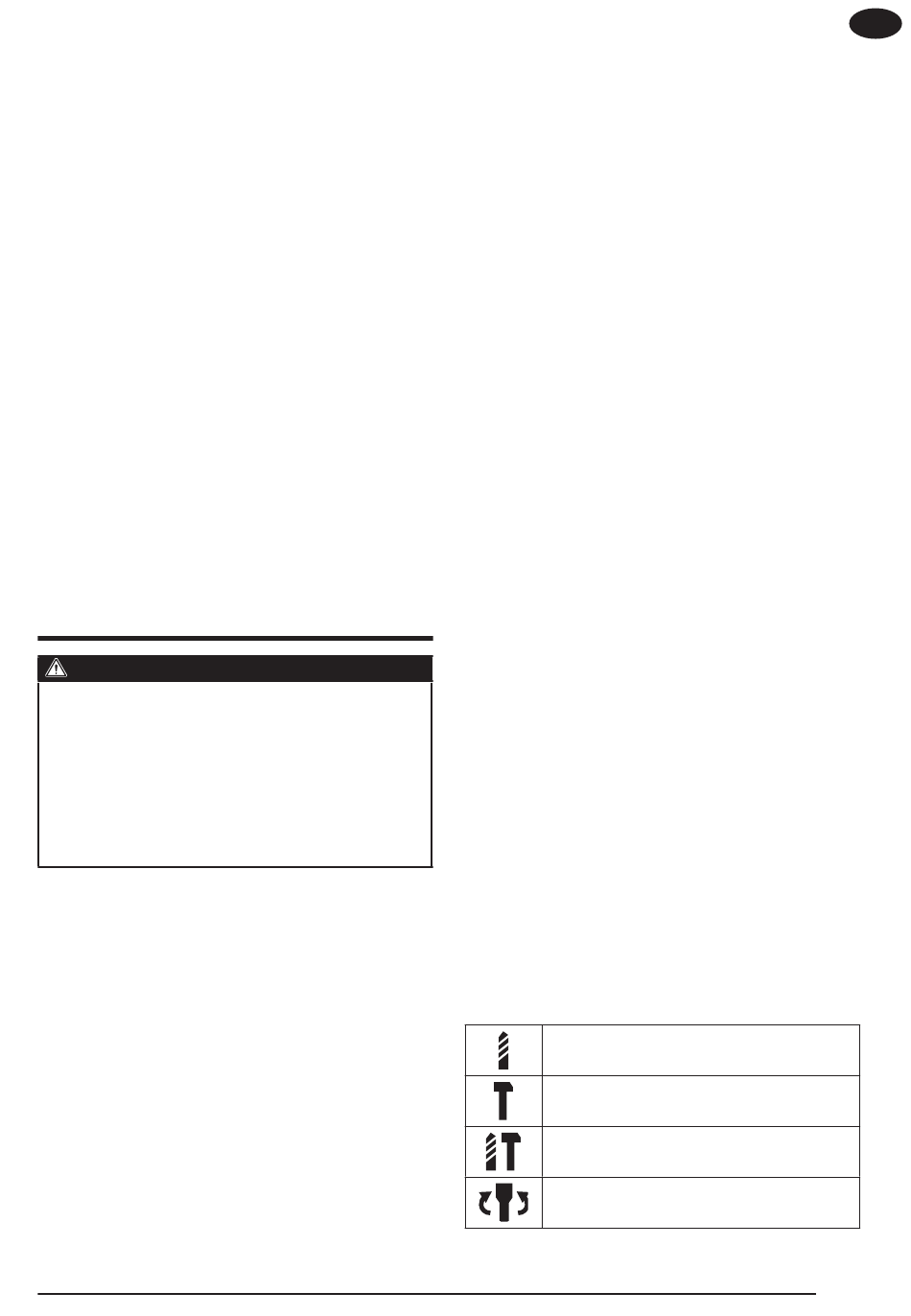

The switch has four positions:
Drilling Mode
Chiseling Mode
Hammer Drilling Mode
Adjustment of chisel position
