Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Please read this manual BEFORE installing and
operating this fireplace.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

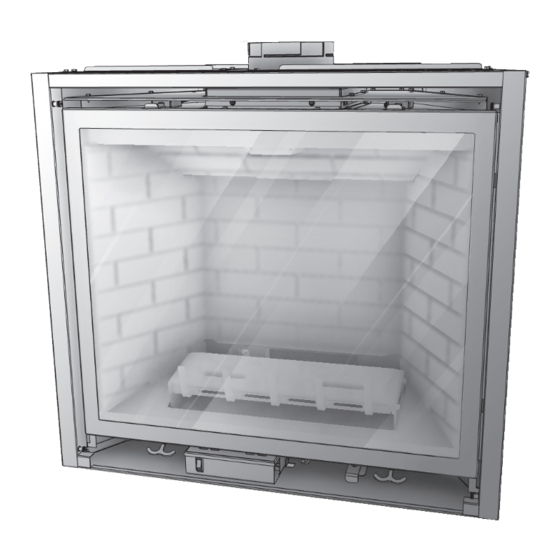

Model BH3024FP
WARNING:
FIRE OR EXPLOSION HAZARD
Ce produit peut vous exposer à des agents chimiques, y compris au monoxyde de
carbone, lesquels sont reconnus dans l'État de la Californie comme causant le cancer et
des malformations congénitales ou autres dommages au fœtus. Pour obtenir plus de
This product can expose you to chemicals including carbon monoxide, which
is known to the State of California to cause cancer, birth defects and/or other
reproductive harm. For more information, go to www.P65warnings.ca.gov
227 Industrial Park Rd. • South Pittsburg, TN 37380 •
Phone: 423-403-4031 • Web: www.breckwell.com
renseignements, veuillez consulter le site www.P65warnings.ca.gov
CALIFORNIA PROPOSITION 65 WARNING:
Report # F18-426R1
853785C-1004N
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Breckwell BH3024FP
Summary of Contents for Breckwell BH3024FP
- Page 1 State of California to cause cancer, birth defects and/or other CONSUMER: Retain this manual for future reference. reproductive harm. For more information, go to www.P65warnings.ca.gov Report # F18-426R1 227 Industrial Park Rd. • South Pittsburg, TN 37380 • 853785C-1004N Phone: 423-403-4031 • Web: www.breckwell.com...
- Page 2 Bottom To Electrical Access Gas Line Access Electrical Access Note: Register your product by using your smart phone with the QR code. Save your receipts with your records for any warranty claims. You can also register your product online at www.breckwell.com/product-registration...
-
Page 3: Safety Label
Safety Label NOTE: This image is only an example. The label on the actual unit will vary slightly. FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. -
Page 4: Before You Start
APPROVED CARBON MONOXIDE DETECTORS Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified. SIGNAGE A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating the appliance or equipment. - Page 5 1. Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, burners, and circulating air passageways of the appliance be kept clean.
-
Page 6: Product Features
19. Do not obstruct the flow of combustion and ventilation air in any way. Provide adequate clearances around air openings into the combustion chamber along with adequate accessibility clearance for servicing and proper operation. 20. Do not use if any part has been under water. Immediately call a qualified service technician to inspect and if needed replace any part of the control system and any gas control which as been under water. -
Page 7: High Elevations
Gas Pressures Gas Specifications & Orifice Size Natural Propane (LP) Max. Input Min. Input Orifice Fuel BTU/h BTU/h Size Inlet Minimum 5.0" WC 12.0" WC Nat. 27,000 14,000 Inlet Maximum 10.5" WC 14.0" WC Natural Gas LP Gas 27,000 13,000 Manifold Pressure 3.8"... - Page 8 Venting REAR VENT APPLICATION There are outlets for both top and rear venting. The unused vent exit must have the cover plates in place, and the cover plates must be removed from the exit according to the instructions below to be used. When removing and refitting the plates be sure the associated gaskets are undamaged and refitted as required.
- Page 9 STEP 7 STEP 10 Attach the firebox exhaust cover to the firebox inside Attach the intake inner draft hood to the firebox back top using the previously removed six (6) machine using the previously removed six (6) machine screws. screws. STEP 11 Attach the draft hood collar to the intake chamber STEP 8...
-
Page 10: Approved Vent Systems
APPROVED VENT SYSTEMS 46DVA-VC – Low Profile Cap Vertical DuraVent (DirectVent Pro) 46 DVA-VCH – Hi Wind Cap Vertical 46 DVA-HC – Square High Wind Cap Horizontal VDV-VCH04 – Round High Wind Cap Vertical Olympia Chimney (Ventis) VDV-VCH4 – Round Cap Vertical VDV-HC04 –... -
Page 11: Wall Enclosure Rough Opening
Framing WARNING: The top stand-offs provide the minimum clearance to the header. Use only non-combustible material in this area for the entire width of the appliance. DO NOT use wood, sheet-rock, etcetera, in this zone. Top stand-off brackets must be formed and attached prior to positioning into framed opening. Attach the two stand-off assembles to the top of the unit using four 10-32 X 1/2 screws as shown. -
Page 12: Typical Horizontal Installation
TYPICAL HORIZONTAL INSTALLATION TYPICAL HORIZONTAL INSTALLATION REAR VENT TOP VENT 1” 1” (25mm) (25mm) 15 ” (394mm)* (394mm)* ¼ ¼ ” (920mm) (920mm) TYPICAL VERTICAL INSTALLATION TOP VENT 1” (25mm) (394mm)* ¼ (920mm) TYPICAL VERTICAL INSTALLATION TYPICAL CORNER INSTALLATION TOP VENT REAR VENT 1”... - Page 13 FLOOR SUPPORT AND PROTECTION WARNING: FIRE HAZARD: Do NOT install directly on carpeting, vinyl, or any other combustible material other than wood. • If installed directly on carpeting, tile, or other combustible material other than wood flooring, this appliance shall be installed on a metal or wood panel extending the full width and depth of the appliance. •...
- Page 14 MOUNTING BRACKET ASSEMBLY AND INSTALLATION WARNING: Never permanently remove these assemblies - they must be secured regardless of finish material used. 1. Bend mounting brackets up 90° at perforation as shown. Bend Here 90° 2. Depending on facing material, the lower half of the mounting bracket can be adjusted forward or backward 1/2”...
-
Page 15: Mantel And Finishing Requirements
Mantel And Finishing Requirements FINISHING RECOMMENDATIONS SINGLE VERTICAL The surface area above the appliance may be affected HEADER by emitted high temperatures. To help avoid or reduce the possibility of the sheetrock to crack the following MANTEL methods are recommended: •... -
Page 16: Vertical Vent Cap Termination
Termination Locations VERTICAL VENT CAP TERMINATION Vertical Vent Cap Clearance WARNING: This appliance must not LOWEST DISCHARGE share or be connected to a chimney OPENING flue serving a separate solid-fuel burning appliance. APPROVED CAP Minimum Height (H) From Roof MINIMUM Roof Pitch Feet Meters... -
Page 17: Minimum Termination Clearances
MINIMUM TERMINATION CLEARANCES AREA WHERE TERMINAL IS NOT PERMITTED Vent Cap Locations Canadian installations US installations Clearance above grade, veranda, porch, deck, or balcony 12 in (30 cm) 12 in (30 cm) Clearance to window or door that may be opened 12 in (30 cm) 9 in (23 cm) Clearance to permanently closed window (recommended to prevent condensation... -
Page 18: Restrictor Adjustment
Top Vent (Vertical Only) WARNING: Improper vent installation may cause the burner flames to lift or “ghost.” Perform a visual check on flame appearance after restrictor adjustment to ensure proper performance. RESTRICTOR ADJUSTMENT Adjust the restrictor to achieve the desired flame appearance on any top venting configuration with 6 ft (1.83 m) of vertical pipe or more. -
Page 19: Top Venting
Top Venting WARNING: Horizontal vent sections require 1/4” (6 mm) rise for every 12” (305 mm) of travel. VERTICAL TERMINATIONS TOP VENTING DIAGRAM (VERTICAL & HORIZONTAL TERMINATIONS) (A) Stand-o Brackets NG/LPG - Minimum / Maximum Vertical Terminations 90° Elbow Termination Cap Minimum Vertical Length Max Vertical Length NG/LPG - 6ft (1.83m) MIN / 40ft (12.2m) MAX... -
Page 20: Rear Venting
Rear Venting WARNING: Horizontal vent sections require 1/4” (6 mm) rise for every 12” (305 mm) of travel. NATURAL GAS INSTALLATIONS REAR VENTING DIAGRAM (VERTICAL & HORIZONTAL TERMINATIONS) (A) Stand-o Brackets NG - Minimum / Maximum Horizontal Venting 90° Elbow Termination Cap Minimum Horizontal Length Maximum Horizontal Length... - Page 21 LP GAS INSTALLATIONS WARNING: Horizontal vent sections require 1/4” (6 mm) rise for every 12” (305 mm) of travel. HORIZONTAL TERMINATIONS REAR VENTING DIAGRAM (VERTICAL & HORIZONTAL TERMINATIONS) LPG - Minimum / Maximum Horizontal Venting (A) S tand-o Brackets (E) Horizontal Vent Heat Shield (not applicable) (B) S tand-o Heat Shields Minimum Horizontal Length...
-
Page 22: Remove Glass Frame Assembly
Log And Liner Installation WARNING: Do not place logs directly over burner port holes. Improper log placement may affect flame appearance and cause excessive soot to build upon the logs and glass. • If converting to LP (propane) gas, complete the conversion before installing the log set. Follow the conversion instructions included with the kit. - Page 23 Liner Set Installation Instruction Sheet Your components may look slightly different than the 4. Place the back end of the top liner onto the top liner ones shown. bracket. Secure the top liner into place by tightening the 1. To insert the rear liner tilt the top towards the back of the two (2) top liner brackets.
- Page 24 Log Set Installation Instruction Sheet If converting to LP (propane) gas, complete the conversion before installing the log set. Follow the conversion instructions included with the kit. Your components may look slightly different than the ones shown. Ensure the brick panels are installed properly before installing the log set.
- Page 25 10. Place log (8) on top of log (6). The back of log (8) will rest in the rear left corner of the firebox. 9. Place log (7) onto log (1). Log (7) will rest on log (3) as shown. 11.
-
Page 26: Electrical Information
INSTALL GLASS FRAME ASSEMBLY 1. Align the slots on top of the glass assembly over the tabs at the top of the firebox while lowering the bottom of the glass assembly into position. NOTE: The glass may have to be tilted in order for the latches to properly hook onto the glass. - Page 27 Front Installation Instruction Sheet SAFETY BARRIER INFORMATION 2. Locate the top trim piece, align the top trim flush with the top of the unit. Use three (3)#10 X 1/2 self drilling screws WARNING: to secure into place. NOTE: The top trim piece is longer than the two side trim pieces.
- Page 28 4. Locate the four arms of the safety barrier as shown. 6. Rest the four arms of the safety barrier on the four shoulder bolts. Depending on the facing material the arm will rest in one of three positions. When placing the safety barrier onto the unit, make sure all four arms are resting in the same slot position.
- Page 29 Wiring Schematics -29-...
-
Page 30: Over Firing Of Burner
It is important to clean the flame sensor rod using emery cloth if flame rectification problems are encountered after use for a few months. Environmental factors beyond the control of Breckwell can cause flame rectification concerns. HOW TO ACCESS COMPONENTS The descriptions below show where the main components are located and how to access them for service. -
Page 31: Valve Assembly
VALVE ASSEMBLY Shutter Cable Tube Shutter Cable Bulk Head Pilot Top MTG Brkt Shutter Adjustment Sleeve Gas Pilot Pilot MTG Box Weldment Burner Orifice Burner Mount Plate Valve Assembly Mount Shutter Adj. Shutter Adj. Top Assembly Bottom Assembly Burner Accent Light Control Module Blower -31-... -
Page 32: Installation Checklist
Installation Checklist All items on the checklist must be completed. Co-axial vent rigid pipe, wall vent cap or roof vent cap is installed by an approved service person in accordance with instructions. All joints are secured, "twist-locked" and leak-proof. 1000°F sealant is used on the inner pipe joints of all DuraVent pipe sections. -
Page 33: Remote Control Functions
REMOTE CONTROL FUNCTIONS NOTE: You will hear a beep once every time a remote-control button is LCD Display pressed, signaling that the command has been received. Locate the four On/Off Button function buttons on the remote control: Thermostat 1. On/Off Button: This button turns the appliance on or off. When this Button button is depressed, and the system is off, the pilot will ignite. - Page 34 UNDERSTANDING YOUR REMOTE-CONTROL ICONS system will remember your selected fan speed until you manually change it. Your remote control displays and controls the following functions. See below for detailed control icon explanations. Child Lock Transmission Low Battery Room Thermostat Temperature Off/On/Smart Accent Light: This function controls the accent light CPI Mode...
-
Page 35: First-Time Lighting Instructions
First-Time Lighting Instructions WARNING: WHAT TO DO IF YOU SMELL GAS WARNING: If you do not follow these instructions • Do not light any appliance. exactly, a fire or explosion may result causing • Do not touch any light switch property damage, personal injury, and loss of life. -
Page 36: Where Can I Find The Model And Serial Numbers
États-Unis: 0 à 2000pieds (0 à 610m) Canada: 0 à 45000pieds (0 à 1372m) Report # F18-149 227 Industrial Park Road, South Pi�sburg, TN 37380 • Phone: (800) 750-2723 • Web: www.breckwell.com LP Gas / Gaz Propane Natural Gas / Gaz Naturel... - Page 37 Adhesives, glue, wall substrate, wall finish material, paints, and polishes are common materials that if used incorrectly will cause odor issues. Breckwell is not responsible for any odor issues caused by materials used. If you have any additional questions or concerns, contact your authorized dealer or email service at www.breckwelll.com.
-
Page 38: Burner Flame Appearance
IS MY FLAME APPEARANCE CORRECT? There are air shutters and media that can be adjusted depending on your fuel and venting configuration. These adjustments should be made by a qualified technician to achieve the best flame appearance. Contact your installer or authorized dealer if you feel it is not burning correctly. Improper setup and adjustment is not covered under warranty. -
Page 39: How Do I Set The Child-Lock Mode
2. Simultaneously, press both the mode button and the thermostat button. 3. Look at the LCD display to verify that your desired indicator (°F or °C) is being displayed. If not, repeat Step 2. HOW DO I SET THE CHILD-LOCK MODE? To prevent unsupervised children from operating, a child-lock function is provided with this remote-control system. -
Page 40: Burner Flame Adjustments
Adjustment PRESSURE TESTING NOTE: The appliance and its main gas valve must be disconnected from the gas supply piping system during any pressure testing of the system at test pressures in excess of 1/2 psi (3.5 kPa). WARNING: Pressure check taps for manifold (outgoing) and inlet (incoming) pressure have been incorporated into the valve. -
Page 41: Gas Flame Adjustment
GAS FLAME ADJUSTMENT WARNING: VENTURI ADJUSTMENT MUST BE DONE BY A QUALIFIED SERVICE TECHNICIAN. During the initial installation, the air shutter opening should be checked to be certain that the shutter is set correctly as specified in this manual. Adjustments should only be made by a qualified installer. NOTE: For altitudes above 5,000 ft., some variations may be required. - Page 42 No LP (propane) gas in tank Check LP (propane tank). Refill if necessary. Consult a plumber or a gas supplier. Low gas pressure Can be caused by situations such as a bent line, too narrow diameter or pipe, or a low line pressure. Verify the pilot flame envelopes the top of the flame Pilot will not stay lit Pilot flame not making contact with the...
-
Page 43: Burner And Pilot System
• Inspect the glass for cracks, scratches, and nicks. • Verify the glass assembly is properly intact and not damaged. • Replace the glass and the assembly as necessary. • Only Breckwell will supply the replacement of glass assembly as a complete unit. -43-... -
Page 44: Service Record
SERVICE RECORD It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. SERVICE PROVIDER Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. - Page 45 NOTES -45-...
