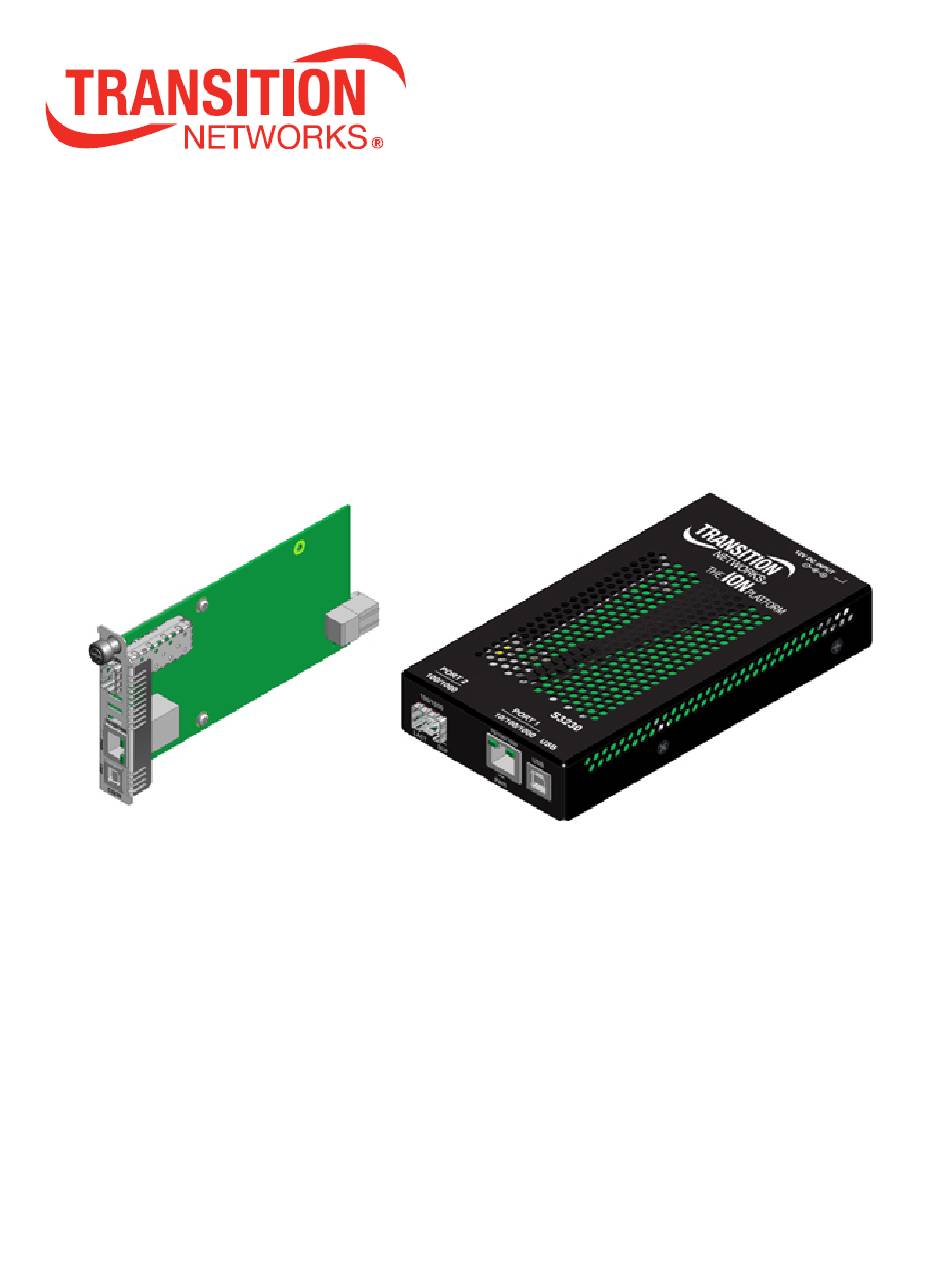

- Page 1 ION System x222x / x32xx Remotely Managed Network Interface Device (NID) Install Guide 33433 Rev. C...
- Page 2 All trademarks and registered trademarks are the property of their respective owners. Copyright Notice/Restrictions Copyright © 2010- 2016 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means (graphic, electronic or mechanical) without written permission from Transition Networks.
- Page 3 Transition Networks ION x222x / x32xx Install Guide Cautions and Warnings Definitions Cautions indicate that there is the possibility of poor equipment performance or potential damage to the equipment. Warnings indicate that there is the possibility of injury to person.
- Page 4 Transition Networks ION x222x / x32xx Install Guide Caution: Do not let optical fibers come into physical contact with any bare part of the body since they are fragile, and difficult to detect and remove from the body. Caution: Do not bend any part of an optical fiber/cable to a diameter that is smaller than the minimum permitted according to the manufacturer’s specification (usually about 65 mm or 2.5 in)!
-
Page 5: Table Of Contents
Transition Networks ION x222x / x32xx Install Guide Table of Contents Section 1: Introduction ..........................7 Document Overview ..........................7 Product Overview ............................. 7 NID Models ............................8 Standard Models and Single Fiber Models ..................8 Chassis Models (Cxxxx) and Standalone Models (Sxxxx) ..............8 Physical Specifications ........................... - Page 6 Transition Networks ION x222x / x32xx Install Guide Elektrische veiligheid .......................... 50 Sécurité électrique ..........................50 Sähköturvallisuus ..........................50 Sicurezza elettrica ..........................50 Elektrisk sikkerhet..........................50 Segurança eléctrica ..........................50 Seguridad eléctrica ..........................50 Elsäkerhet ............................50 List of Figures Figure 1: Chassis Installation ........................
-
Page 7: Section 1: Introduction
ION x222x / x32xx Install Guide Section 1: Introduction Document Overview The purpose of this manual is to provide the user with an understanding of the Transition Networks x222x / x32xx network interface devices (NIDs). This manual documents the following models: •... -
Page 8: Nid Models
ION Standalone models include remotely-managed NIDs (Network Interface Devices). An end-to-end fiber integration solution can be achieve by pairing the modules in a high density ION chassis with the ™ modules in another ION chassis, an ION stand-alone, or a Transition Networks’ Point System stand- alone device. -
Page 9: Table 1: Chassis Models (Cxxxx) And Descriptions
Transition Networks ION x222x / x32xx Install Guide Table 1: Chassis Models (Cxxxx) and Descriptions C2220 Series (10/100Base-TX to 100base-FX 802.3ah NIDs) # Product Number Port One Port Two C2220-1011-D 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] 100BASE-FX 1310nm TX/1310nm RX single fiber single mode (SC) C2220-1013 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] 100BASE-FX 1310nm multimode (ST) [2 km/1.2 mi.]... -
Page 10: Table 2: Standalone Models (Sxxxx) And Descriptions
Transition Networks ION x222x / x32xx Install Guide Table 2: Standalone Models (Sxxxx) and Descriptions S2220 Series (10/100Base-TX to 100base-FX 802.3ah NIDs) # Product Number Port One Port Two 34. S2220-1011 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] 100BASE-FX 1310nm multimode (ST) [2 km/1.2 mi.] 35. -
Page 11: Physical Specifications
Transition Networks ION x222x / x32xx Install Guide Physical Specifications The physical specifications for the chassis slide-in modules are described in Table 3 below. Table 3: Chassis Slide-in Module Specifications All Model x222x / x32xx Dimensions SIC: 3.4” x 0.86” x 6.5” (86 mm x 22 mm x 165 mm) Standalone: 3.25”... -
Page 12: Fiber Specifications
5.0 dBm -27.0 dBm -3.0 dBm 27.0 dB MTBF Specification The Transition Networks the x322x-10xx MTBF is provided below: With Power Supply: MTBF to be greater than 65,000 MIL-HDBK-217F Hours. MTBF to be greater than 178,000 Bellcore Hours. Without Power Supply: MTBF to greater than 250,000 MIL-HDBK-217F Hours. -
Page 13: Related Manuals And Online Helps
10. Release Notes (software version specific) 11. Product Documentation Postcard, 33504 This manual may provide links to third part web sites for which Transition Networks is not responsible. Information in this document is subject to change without notice. All information was deemed accurate and complete at the time of publication. -
Page 14: Section 2: Installation And System Setup
Installing the Chassis Model (C222x / C32xx) The Cx2xx NID is a slide-in module that can only be installed in a Transition Networks ION chassis (ION001-x and ION219-x). For a complete list of ION platform products, go to the Transit Networks website at: https://www.transition.com. -
Page 15: Installing The Standalone Model (S222X / S32Xx)
Wall mounted Rack Mount Installation The S222x / S32xx standalone module can be mounted into a Transition Networks E-MCR-05 media converter rack, which can be installed on a tabletop or in a standard site rack. For installation details, see the E-MCR-05 Media Converter Rack User Guide, 33297. -
Page 16: Tabletop Installation
Transition Networks ION x222x / x32xx Install Guide Tabletop Installation The S222x / S32xx is shipped with four rubber feet for optional installation on a table or other flat, stable surface in a well-ventilated area. 1. Remove the rubber feet from the card. -
Page 17: Wall Mount Installation
Transition Networks ION x222x / x32xx Install Guide Wall Mount Installation 1. Remove the four #4 Philips head screws securing the cover to the device and orient the device as shown in the figure below. Figure 3: Wall Mount Installation 2. -
Page 18: Connecting To Ac Power
Transition Networks ION x222x / x32xx Install Guide Connecting to AC Power After the standalone NID has been installed, connect it to the AC-DC power adapter. Use the AC power adapter shipped with the NID. Warning: Risk of electrical shock. -
Page 19: Connections And Leds
Transition Networks ION x222x / x32xx Install Guide Connections and LEDs The connections and LEDs resident on the various models are described on the following pages. Model x2220-1040 The x2220-1040 connectors and LEDs are shown in the two figures below, and described in Table 6. -
Page 20: Table 6: Model X2220-1040 Connectors And Led Descriptions
Transition Networks ION x222x / x32xx Install Guide The x2220-1040 connectors and LEDs are described in the table below. Table 6: Model x2220-1040 Connectors and LED Descriptions Connector/LED Description 100/1000 Lets you install a Small Form-Factor Pluggable (SFP) device of your choice in SFP port connector order to make a fiber connection. -
Page 21: Model X3221-1040
Transition Networks ION x222x / x32xx Install Guide Model x3221-1040 The x3221-1040 connectors and LEDs are shown in the two figures below, and described in Table 7. Figure 7: Model C3221-1040 Connectors and LEDs Figure 8: Model S3220-1040 Connectors and LEDs 33433 Rev. -
Page 22: Table 7: Model X3221-1040 Connectors And Led Descriptions
Transition Networks ION x222x / x32xx Install Guide The x3221-1040 connectors and LEDs are described in the table below. Table 7: Model x3221-1040 Connectors and LED Descriptions Connector/LED Description 100/1000 Lets you install a Small Form-Factor Pluggable (SFP) device of your SFP port connector choice in order to make a fiber connection. -
Page 23: Model X32X0-10Xx
Transition Networks ION x222x / x32xx Install Guide Model x32x0-10xx The x32x0-1040 connectors and LEDs are shown in the two figures below and described in Table 7. Figure 9: Model C32x0-10xx Connectors and LEDs Figure 10: Model S32x0-10xx Connectors and LEDs 33433 Rev. -
Page 24: Model S3221-1040-T
̊ C to +65 ̊ C. The bundled external AC/DC power supply adapter is also ”hardened” to meet the operating temperature range of the S3221-1040-T. SFPs used with the S3221-1040-T require an extended operating temperature range to match the S3221- 1040-T. See the Transition Networks SFP landing page for SFP details. -
Page 25: Installing The Usb Driver - Windows Xp
Transition Networks ION x222x / x32xx Install Guide Installing the USB Driver - Windows XP IMPORTANT The following driver installation instructions are for the Windows XP operating system only. Installing the USB driver using another operating system is similar, but not necessarily identical to the following procedure. -
Page 26: Installing The Usb Driver - Windows 8
Transition Networks ION x222x / x32xx Install Guide Installing the USB Driver - Windows 8 IMPORTANT The following driver installation instructions are for the Windows 8 operating system only. Installing the USB driver using another operating system is similar, but not necessarily identical to this procedure. - Page 27 Transition Networks ION x222x / x32xx Install Guide At the Troubleshoot screen choose “Advanced options”. In the Advanced options screen choose “Startup Settings”. A list of Windows Startu Settings displays; click the “Restart” button. Your PC will reboot. 33433 Rev. C https://www.transition.com...
- Page 28 Transition Networks ION x222x / x32xx Install Guide Your PC will boot into a Startup Settings screen. Select “7) Disable driver signature enforcement”. Your PC will reboot one more time and will not load normally. Plug the USB into the PC and IONMM card and have the USB driver saved locally to the PC.
- Page 29 Transition Networks ION x222x / x32xx Install Guide Configuring HyperTerminal After the USB driver has been installed, you must set up the terminal emulator software (e.g., HyperTerminal) to use the USB COM port. 1. On the desktop, right-click on My Computer.
- Page 30 Type private (all lower case) and press the Enter key. The ION system command prompt displays. For example: Hello, this is ION command line (version 1.00). Copyright 2009 Transition Networks. Agent III C1|S1|L1D> Continue by entering ION CLI commands to the right of the > symbol. Press the Enter key after each command.
- Page 31 Transition Networks ION x222x / x32xx Install Guide If the NID controlled by the IONMM, go to step 9. Otherwise continue with step 10. Enter a go command to change the location for the command prompt. The go command format go [c=<1-16>] [s=<1-32>] [l1ap=<1-15>] [l2ap=<1-15>] (l1p=<1-5>|l2p=<1-15>|l3p=<1-15>|l1d|l2d|l3d)
-
Page 32: Access Via An Ethernet Network
Transition Networks ION x222x / x32xx Install Guide Access via an Ethernet Network The NID can be managed remotely through the Ethernet network via either a Telnet session or the Web interface. Before this is possible, you must set up the IP configuration for the NID. - Page 33 Transition Networks ION x222x / x32xx Install Guide 10. If the NID is controlled by the ION Management Module, go to step 11. If the NID is not controlled by the ION Management Module, go to step 12. 11. Enter a go command to change the location for the command prompt. The go command format go [c=<1-16>] [s=<1-32>] [l1ap=<1-15>] [l2ap=<1-15>] (l1p=<1-5>|l2p=<1-15>|l3p=<1-15>|l1d|l2d|l3d)
-
Page 34: Initial Setup With A Static Ip Address Via The Cli
Transition Networks ION x222x / x32xx Install Guide Initial Setup with a Static IP Address via the CLI The x222x/x32xx supports IPv4-based application protocols. The x222x/x32xx can be assigned IP address statically or dynamically using DHCP. The x222x/x32xx supports DNS, which lets you assign it a hostname instead of an IP address. -
Page 35: Accessing The Nids
Transition Networks ION x222x / x32xx Install Guide ------------------------------------------------------------------------ IP management state: enable IP address: 192.168.1.10 IP subnet mask: 255.255.255.0 Gateway IP address: 192.168.0.1 IP address mode : Static IPv6 management configuration: ------------------------------------------------------------------------ Management State: disable Link Local Address: fe80::2c0:f2ff:fe21:177... -
Page 36: Access Via Local Serial Interface (Usb)
Transition Networks ION x222x / x32xx Install Guide Access via Local Serial Interface (USB) The x222x / x32xx NIDs can be connected to a local management station (PC) through a serial interface using a USB connection. The NID is controlled by entering command line interface (CLI) commands at the local management station. - Page 37 Transition Networks ION x222x / x32xx Install Guide To change the device switch mode to local, do the following: 1. Start a USB session (see “Starting a USB Session” on page 27). 2. At the command prompt type set switch mode=local.
-
Page 38: Section 3: Troubleshooting
Transition Networks ION x222x / x32xx Install Guide Section 3: Troubleshooting General This section provides basic and specific problem determination processes, and a description of problem conditions that may occur or messages that may be displayed. This section also documents ION system tests and x222x / x32xx and jumpers, and describes where and how to get technical support. -
Page 39: Error Indications And Recovery Procedures
Transition Networks ION x222x / x32xx Install Guide 8. Use the Web interface or command line interface (CLI) to obtain all possible operating status in- formation (log files, test results, show command outputs, counters, etc.) 9. If LOAM is configured, check the LOAM Event Log table parameters,. Print the output if possible. -
Page 40: Led Fault And Activity Displays
Transition Networks ION x222x / x32xx Install Guide LED Fault and Activity Displays Refer to this section if the LEDs indicate a problem. For any LED problem indication, review the “Front Panel Connections and LEDs” section, and then perform the following steps. -
Page 41: Jumper Settings
Transition Networks ION x222x / x32xx Install Guide Jumper Settings The x222x/x32xx NIDs have on-board components that can be used to configure device operation, typically at the direction of a TN technical support specialist. In most cases, the factory default settings provide optimal configuration settings;... -
Page 42: Contact Us
Transition Networks ION x222x / x32xx Install Guide J11 – Reset to Factory Defaults (N/F) Doing a Reset To Factory Config resets the NID configuration to the state it was in when it shipped from the factory. This permanently removes all current configuration details and loads the system configuration with the factory default settings. -
Page 43: Recording Model Information And System Information
Device Description: ___________________ IP Address Mode: ____________________ 4. Provide additional Model and System information to your Technical Support Specialist. See “Basic ION System Troubleshooting” on page 38. Your Transition Networks service contract number: ____________________________ 33433 Rev. C https://www.transition.com Page 43 of 51... - Page 44 A description of any action(s) already taken to resolve the problem (e.g., changing switch mode, rebooting, etc.): __________________________________________________________________ _________________________________________________________________________________ ________________________________________________________________________________ The serial and revision numbers of all involved Transition Networks products in the network: ________________________________________________________________________________ _________________________________________________________________________________ A description of your network environment (layout, cable type, etc.): _________________________...
-
Page 45: Appendix A: Warranty And Compliance Information
This warranty is your only remedy. No other warranties, such as fitness for a particular purpose, are expressed or implied. Transition Networks is not liable for any special, indirect, incidental or consequential damages or losses, including loss of data, arising from any cause or theory. Authorized resellers are not authorized to extend any different warranty on transition networks’... - Page 46 180-day limited warranty. All warranty claims are subject to the restrictions and conventions set forth by this document. Transition Networks reserves the right to charge for all testing and shipping incurred, if after testing, a return is classified as "No Problem Found."...
-
Page 47: Compliance Information
Non-warranted products repaired by Transition Networks for a fee will carry a 180-day limited warranty. All warranty claims are subject to the restrictions and conventions set forth by this document. Transition Networks reserves the right to charge for all testing and shipping incurred, if after testing, a return is classified as “No Problem Found.”... - Page 48 In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the ‘Contact Us’...
-
Page 49: Decclaration Of Conformity
Transition Networks ION x222x / x32xx Install Guide Decclaration of Conformity MEF Certifications TN has received MEF 9, 14, and 21 certification for the x2220, x3220, x3230 and S3240 products at the time of this publication. The MEF Carrier Ethernet Certification Program is designed to ensure that global equipment and services comply with MEF standards and pave the way for interoperability. -
Page 50: Electrical Safety Warnings
Transition Networks ION x222x / x32xx Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal 50nstallers i overensstemmelse med sikkerhedsadvarslerne. - Page 51 Minnetonka, MN 55343 USA tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com techsupport@transition.com customerservice@transition.com Copyright © 2010- 2016 Transition Networks. All rights reserved. Printed in the U.S.A. ION x222x / x32xx Remotely Managed NID Install Guide, 33433 Rev. C...
- Page 52 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Lantronix 25138...
