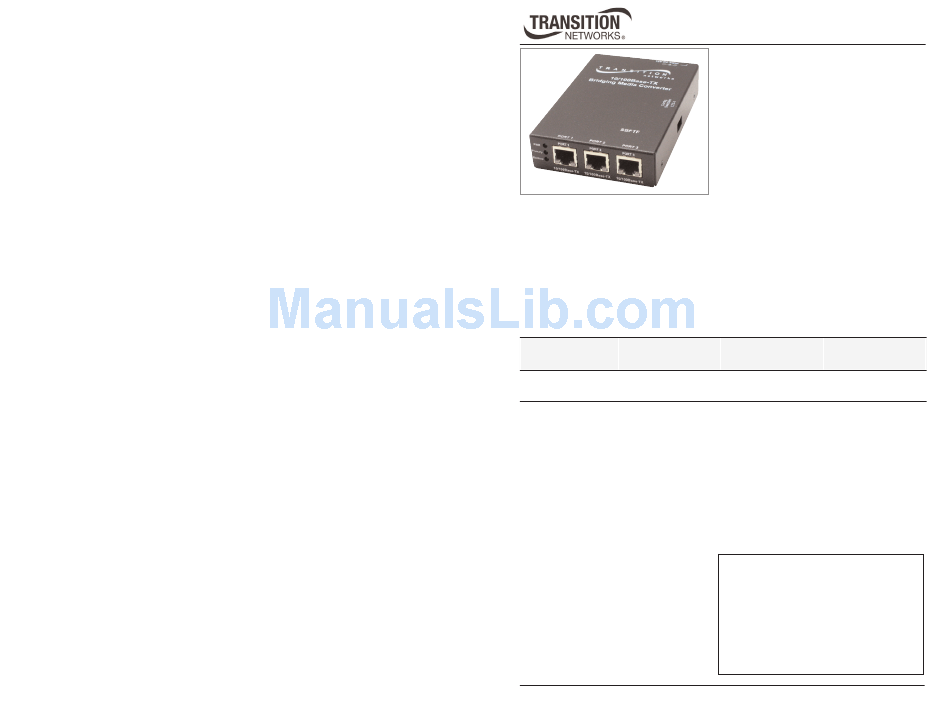

The SBFTF1010-130 is a fault-tolerant redundant link protector provides redundant
paths for fast Ethernet devices. It has three ports: main, primary, and backup. Typically,
the main port connects to a critical 10/100 fast Ethernet device. The primary port and the
backup port connect to two different switch ports or two different ports on separate
switches. When the unit powers up, it checks the primary port for a link signal; if the
signal is present, the main and primary ports connect and the signal from the backup port
is then disabled. Any device connected to the backup port will not detect a signal at this
time. However, if the device does not detect a signal on the primary port, then the main
port and backup port connect.
Part Number
Port One - Copper
10/100Base-T(x)
SBFTF1010-130
RJ-45 100 M
(328 ft*)
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of th network.
User's Guide
SBFTF1010-130
10/100 Fault-Tolerant Redundant Link
Protector
• 10/100 Base-T(x) to 10/100 Base-T(x)
• Ethernet/Fast Ethernet
Port Two Copper
Port Three - Copper
10/100Base-T(x)
10/100Base-T(x)
RJ-45 100 M
RJ-45 100 M
(328 ft*)
(328 ft*)
Product features . . . . . . . . . . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . . . .7
Cable Specifications . . . . . . . . . . . . .7
Troubleshooting . . . . . . . . . . . . . . . .8
Technical Specifications . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . . . .12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks SBFTF1010-130
Summary of Contents for Transition Networks SBFTF1010-130
- Page 1 • 10/100 Base-T(x) to 10/100 Base-T(x) • Ethernet/Fast Ethernet The SBFTF1010-130 is a fault-tolerant redundant link protector provides redundant paths for fast Ethernet devices. It has three ports: main, primary, and backup. Typically, the main port connects to a critical 10/100 fast Ethernet device. The primary port and the backup port connect to two different switch ports or two different ports on separate switches.
-
Page 2: Product Features
SBFTF1010-130 Product Features Front panel The SBFTF1010-130 bridging media converter has three 10/100Base-TX ports. Port 1 Port 2 Port 3 Primary Backup 10/100Base-TX 10/100Base-TX 10/100Base-TX Auto-Negotiation (selectable) The Auto-Negotiation feature automatically configures the bridging media converter to achieve the best possible mode of operation over a link. The bridging... -
Page 3: Installation
SBFTF1010-130 Installation CAUTION: Do Not install the SBFTF1010-130 fault-tolerant redundant link protector in location where it might be exposed to wetness. Failure to observe this caution could result in damage to the device. Jumper (shunt) The 3-pin header located on the inner surface of the board is used to select “redundancy.”... -
Page 4: Operation
SBFTF1010-130 Installation --continued Installing the twisted-pair copper cable 1. Locate or build an IEEE 802.3 compliant 10Base-T or 100Base-TX cables, with male RJ-45 connectors installed onto both ends. 2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the bridging media converter as shown below. -
Page 5: Troubleshooting
Note: A Fast Ethernet collision domain can have only “1” Class “I” repeater or “2” Class “II” repeaters. Troubleshooting If the SBFTF1010-130 fails or initially does not power up and function properly, ask the following questions and take the suggested corrective actions. Is the power LED on the bridging media converter ON? -
Page 6: Technical Specifications
1-800-260-1312 (24 hours) • International: 00-1-952-941-7600 (24 hours) Transition now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-based seminar Transition networks provides seminars via live, web-based training. Log onto www.transition.com and click the Learning Center link. -
Page 7: Compliance Information
All registered trademarks and trademarks are the property of their respective owners. Copyright restrictions © 2004-2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means—graphic, electronic or mechanical—without written permission from Transition Networks Printed in the U.S.A.
