Transition Networks CPSMM-200 User Manual

Dual-slot master management module, single-slot expansion management module
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Enlarged version

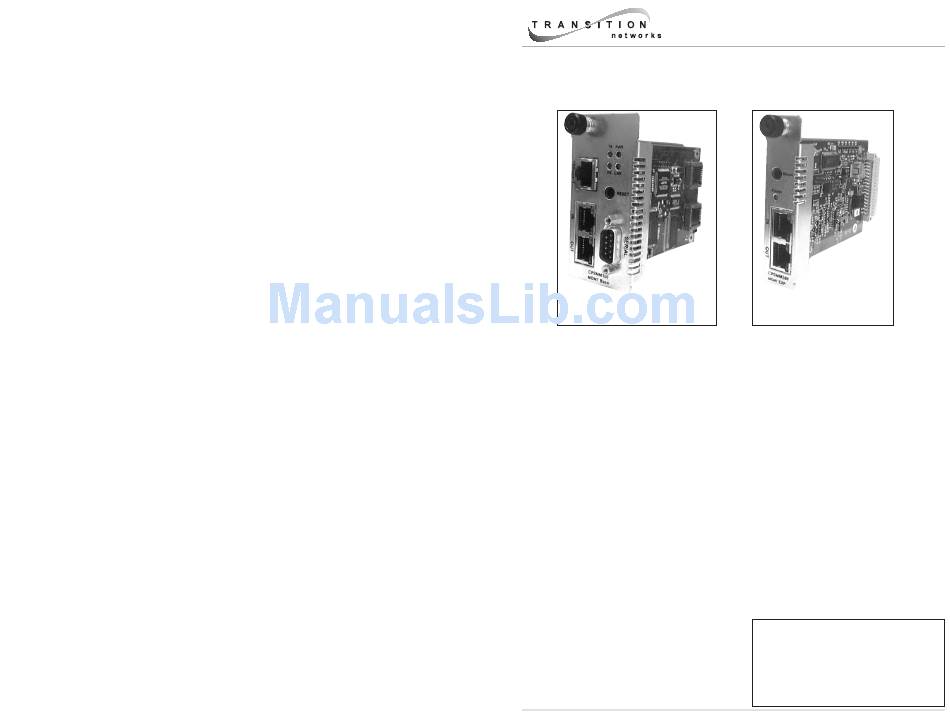

User's Guide
CPSMM-200
- Dual-Slot Master Management Module
CPSMM-210
- Single-Slot Expansion Management Module
CPSMM-200
Dual-Slot Master
Transition Networks CPSMM-200 Dual-Slot Master Management Module enables
network management of a single PointSystem™ chassis (CPSMC0800-100,
CPSMC13xx-100, CPSMC18xx-xxx, and CPSMC19xx-100) and any installed media
converter slide-in-modules.
The CPSMM-200 includes Transition Networks CPSMM100 Firmware embedded
in the module, which can be accessed via the DB-9 serial port or the 10Base-T RJ-
45 Ethernet port.
In addition, the CPSMM-200 has two RJ-45 ports ("in" and "out") to accommodate
stacking multiple PointSystem™ chassis. Multiple chassis can be "cascaded" in
this manner with a CPSMM-210 Single-Slot Expansion Management Module
installed in each subsequent chassis in the stack.
CPSMM-210
Single-Slot Expansion
Installation . . . . . . . . . . . . . . . . . .4
Network Management . . . . . . . . .6
Operation . . . . . . . . . . . . . . . . . . .7
Technical Specifications . . . . . . . .9
Troubleshooting . . . . . . . . . . . . .10
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPSMM-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks CPSMM-200

Summary of Contents for Transition Networks CPSMM-200

  • Page 1: Table Of Contents

    DB-9 serial port or the 10Base-T RJ- 45 Ethernet port. In addition, the CPSMM-200 has two RJ-45 ports (“in” and “out”) to accommodate stacking multiple PointSystem™ chassis. Multiple chassis can be “cascaded” in this manner with a CPSMM-210 Single-Slot Expansion Management Module installed in each subsequent chassis in the stack.
  • Page 2 CPSMM-200 / CPSMM-210 CPSMM-200 Dual-Slot Master Management Module The figure below illustrates the components of the CPSMM-200 management module: • A panel fastener screw that secures the management module to the Pointsystem™ chassis. • PWR (power), LNK (link), RX (receive) and TX (transmit) LED indicators.

  • Page 3: Installation

    If the primary module fails, the stand-by module automatically takes over and manages the network. The CPSMM-200 can be hot-swapped, that is, it can be replaced while the PointSystem™ chassis is powered. However, please note that: •...

  • Page 4: Network Management

    User’s Guide on the enclosed application CD. It can also be viewed on the Transition Networks website at: www.transition.com. Operation Reset Switch Both the CPSMM-200 and the CPSMM-210 have a reset switch which resets only the management module (not the entire chassis in which the module has been installed). 24-hour Technical Support: 1-800-260-1312...

  • Page 5: Led Indicators

    CPSMM-200 / CPSMM-210 Operation -- Continued LED Indicators Both the CPSMM-200 and CPSMM-210 have four LEDs embedded in the cascade ports. Reset LED 1 LED 2 LED 1 LED 2 CPSMM200 CPSMM-200 IN - LED 1 (amber) Flashes once when the management module is powered on and indicates that the BIA (burned in address) has gone through the read cycle.

  • Page 6: Troubleshooting

    CPSMM-200, CPSMM-210 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CPSMM-200 and CPSMM-210 to which this declaration refers are in conformity with the following standards. CISPR 22:1993; EN 55022:1994, A1:1995, A2:1997; Class A & B; FCC Part 15 Subpart B; EN 55024:1998; EN 61000-3-2:1995; EN 61000-3-3:1005 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

  • Page 7: Compliance Information

    Compliance Information CISPR22/EN55022 Class A & B + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A & B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
