IOT, industrial control, automation, green energy and artificial intelligence based on Raspberry Pi technology platform. You can contact us in the following ways: EDA Technology Co.,LTD Address: Building 29, No.1661 Jialuo Highway, Jiading District, Shanghai Mail: sales@edatec.cn...
Page 3

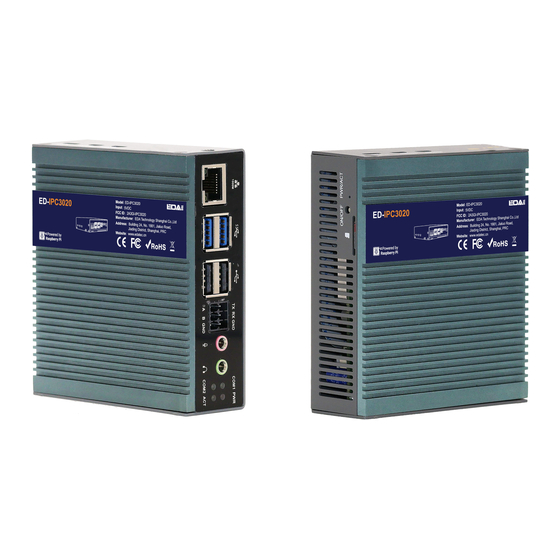

Copyright Statement ED-IPC3020 and its related intellectual property rights are owned by EDA Technology Co.,LTD. EDA Technology Co.,LTD owns the copyright of this document and reserves all rights. Without the written permission of EDA Technology Co.,LTD, no part of this document may be modified, distributed or copied in any way or form.
Page 4
EDA Technology Co.,LTD does not guarantee that the information in this manual is up to date, correct, complete or of high quality. EDA Technology Co.,LTD also does not guarantee the further use of this information. If the material or non-...
ED-IPC3020 to help users understand the overall system parameters of the products. This document introduces the appearance, installation, startup ED-IPC3020 User Manual and configuration of ED-IPC3020 to help users use the product better. This document introduces downloading OS file, flashing to SD ED-IPC3020 Application Guide card, Firmware Update, and Configuring booting from SSD of ED- IPC3020 to help users use the product better.
Related Agreement Symbolic Convention Symbolic Instruction Prompt symbols, indicating important features or operations. Notice symbols, which may cause personal injury, system damage, or signal interruption/loss. Warning symbols, which may cause great harm to people.
Safety Instructions This product should be used in an environment that meets the requirements of design specifications, otherwise it may cause failure, and functional abnormality or component damage caused by non-compliance with relevant regulations are not within the product quality assurance scope. ...
1 Installing OS 1 Installing OS This chapter introduces how to download OS file and flash to SD card. Downloading OS File Flashing to SD Card ED-IPC3020 Application Guide...
1 Installing OS 1.1 Downloading OS File If the operating system is damaged during use, you need to re-download the latest version of OS file and flash to SD card. The download path is: ED-IPC3020/raspios. ED-IPC3020 Application Guide...
1.2 Flashing to SD Card ED-IPC3020 starts the system from the SD card by default. If you want to use the latest OS, you need flash OS to the SD card. It is recommended to use the Raspberry Pi tool, and the download path is...
Page 12
According to the prompt, select the downloaded OS file under the user-defined path and return to the main page. Click "CHOOSE STORAGE", select the SD card of ED-IPC3020 in the "Storage" pane, and return to the main page. Click "WRITE" and select "Yes" in the pop-up prompt box to start writing the OS.
Page 13
After the file verification is completed, the prompt box "Write Successful" pops up, and click "CONTINUE" to finish flashing to SD card. Close Raspberry Pi Imager, remove the card reader. Insert the SD card into ED-IPC3020 (for detailed operations, please refer to Section 2.2 of “ED-IPC3020 User Manual”), and then power on again.
2 Firmware Update 2 Firmware Update After the system starting normally, you can execute the following commands in the command pane to upgrade the firmware and optimize the software functions. sudo apt update sudo apt upgrade ED-IPC3020 Application Guide...
3 Configuring booting from SSD (optional) 3 Configuring booting from SSD (optional) This chapter introduces the steps to configure booting from SSD. Flashing to SSD Setting BOOT_ORDER ED-IPC3020 Application Guide...
SSD before using. NOTE: If there is an SD card in ED-IPC3020, the system will boot from the SD card by default. 3.1.1 Flashing through an SSD box You can flash to SSD through an SSD box on a windows PC. It is recommended to use the Raspberry...
Page 17
4. According to the prompt, select the downloaded OS file under the user-defined path and return to the main page. 5. Click "CHOOSE STORAGE", select the SSD of ED-IPC3020 in the "Storage" pane, and return to the main page. 6. Click "WRITE" and select "Yes" in the pop-up prompt box to start writing the OS.
Page 18
8. After the file verification is completed, the prompt box "Write Successful" pops up, and click "CONTINUE" to finish flashing to SSD. 9. Close the Raspberry Pi Imager and remove the SSD box. 10. Remove the SSD from the SSD box, install the SSD to PCBA and close the device case (For ED-IPC3020 Application Guide...
Desktop\2024-01-10-ed-ipc3020_raspios-bookworm-arm64_stable.img: Indicating the storage path of “.img” file on windows PC. Pi: Indicating the storage path of “.img” file on ED-IPC3020 (the path where the “.img” file is stored after copying is completed). 192.168.168.219: The IP address of ED-IPC3020 ...
Page 20
4. Click the icon in the upper left corner of the desktop, select “Accessories→Imager” in the menu, and open the Raspberry Pi Imager tool. 5. Click “CHOOSE DEVICE”, select “Raspberry Pi 5” in the pop-up “Raspberry Pi Device” pane. ED-IPC3020 Application Guide...
Page 21
3 Configuring booting from SSD (optional) 6. Click “CHOOSE OS”, select "Use Custom " in the pop-up “Operating System” pane. 11. According to the prompt, select the downloaded OS file in “Select image” pane, and return to the main page. ED-IPC3020 Application Guide...
Page 22
3 Configuring booting from SSD (optional) 7. Click "CHOOSE STORAGE", select the SSD of ED-IPC3020 in the "Storage" pane, and return to the main page. 8. Click “NEXT”, and select “NO” in the pop-up “Use OS customization?”. 9. Select “YES” in the pop-up “Warning”.
Page 23
10. Enter password (raspberry) in the pop-up “Authenticate”, and then click “Authenticate” to start writing the OS. 11. After the OS writing is completed, the file will be verified. 12. After the verification is completed, input password (raspberry) in the pop-up “Authenticate”, and then click “Authenticate”. ED-IPC3020 Application Guide...
Page 24
3 Configuring booting from SSD (optional) 13. In the pop-up “Write Successful” prompt box, click “CONTINUE”, then close Raspberry Pi Imager. ED-IPC3020 Application Guide 3-10...
3 Configuring booting from SSD (optional) 3.2 Setting BOOT_ORDER If ED-IPC3020 contains an SD card, the system will boot from the SD card by default. If you want to set booting from SSD, you need to configure BOOT_ORDER property, which sets booting from SSD by default when no SD card is inserted).
Page 26
3. Input Ctrl+X to exit editing mode. 4. Input Y to save the file, then press Enter to exit to the main page of command pane. 5. Power off ED-IPC3020 and pull out the SD card. 6. Power on ED-IPC3020 to restart the device.
