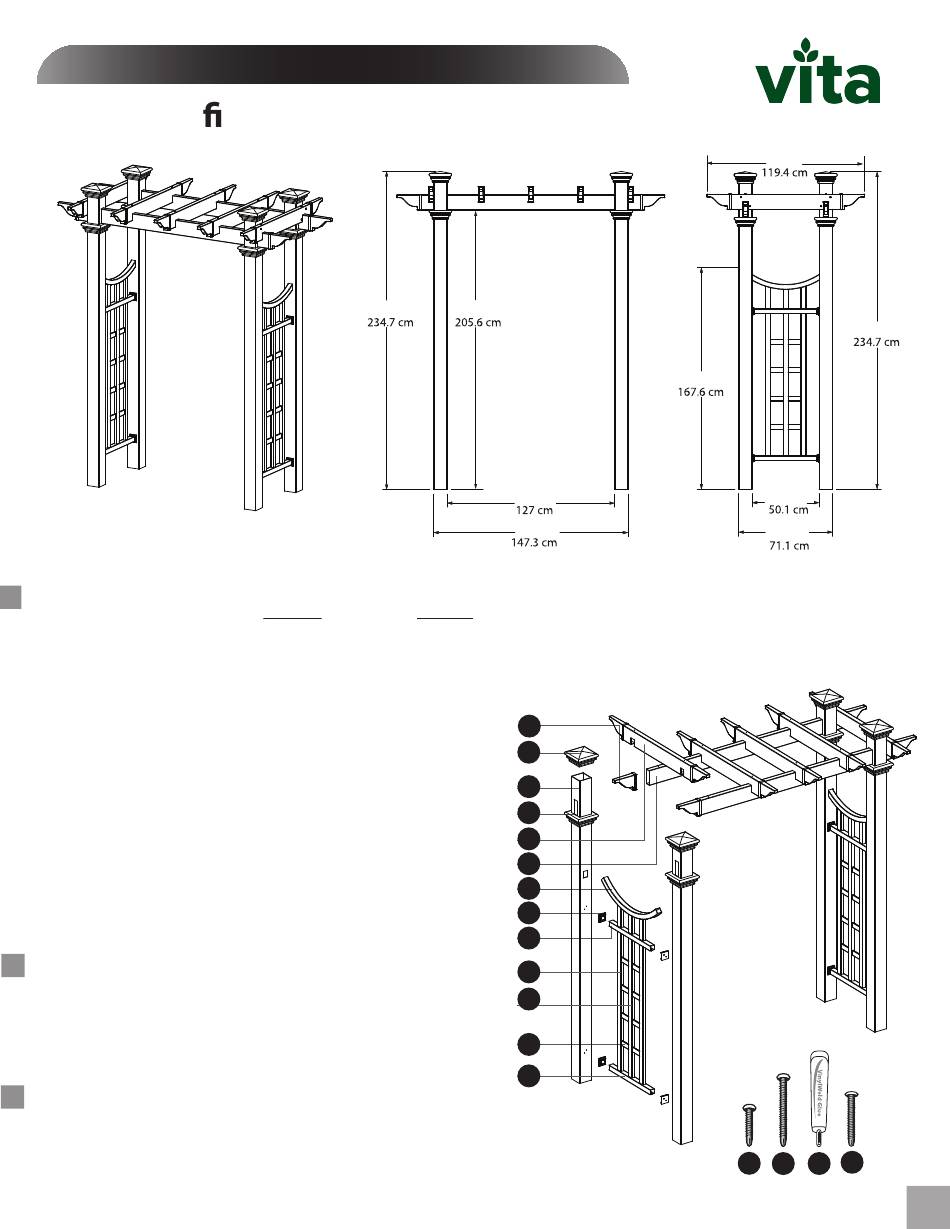

A S S E M B LY I N S T R U C T I O N S
The Fair eld Deluxe Arbor / Arch
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 5:00 PM EST) .
1. Pergola End Caps (14) - 10700-1
2. Post Caps (4) - 10735-1
3. Posts (4) - 4" x4" x 90.5" (10.2 x 10.2 x 230 cm) - 10736-1
4. Post Trims (4) - 10737-1
5. Rafters (5) - 33.5" (85 cm) - 10734-1
6. Carrying Beams (2) - 66.5" (169 cm) - 10739-1
7. Side Panel Curved Top-Rails (2) - 10740-1
8. Sur-Fit Bracket for Side Panel Horizontals (8) - 10730-1
9. Side Panel Horizontal Mid-Rails (2) - 19.75" (50.2 cm) - 10741-1
10. Side Panel Outside Vertical Spindles (Long) (4) - 52.75" (134 cm) - 10742-1
11. Side Panel Middle Vertical Spindles (Short) (2) - 52.125" (132.4 cm) -
10743-1
12. Side Panel Horizontal Short Spindles (8) - 11.85" (30 cm) - 10744-1
13. Side Panel Horizontal Bottom Rails (2) - 19.75" (50.2 cm) - 10745-1
14. 1 1/2 in. (3.8 cm) Stainless Steel Screws (for Sur-Fit Brackets) (24) - 20005
15. 3 in. (7.6 cm) Stainless Steel Screws (for Rafters) (18) - 20007
16. Tube of Vinyl Glue (1) - 20000
17. 2 1/2 in. (6.3 cm.) Stainless Steel Screws (for wood post to post
connection) (8) - 20009-1
92.4 in
81 in
50 in
58 in
1
2
3
4
5
6
7
8
9
10
11
12
13
www.wearevita.com
47 in
92.4 in
66 in
20 in
28 in
17
14
15
16
(Not to scale)
V5.1/10202023
1
Advertisement
Table of Contents
Related Manuals for vita Fairfield Deluxe
Summary of Contents for vita Fairfield Deluxe
- Page 1 A S S E M B LY I N S T R U C T I O N S The Fair eld Deluxe Arbor / Arch www.wearevita.com 47 in 92.4 in 81 in 92.4 in 66 in 20 in 50 in 58 in 28 in Please read through before starting assembly.
- Page 2 • is located on level ground Conside r Using: 4” EZ Mount Post (Package of 4) • Purchase from Vita, www.wearevita.com • Instructions are included with the kit Important Note for Option 1: If you are planning on installing your arbor into the ground using pressure treated wood posts, we recommend installing the wood into the posts at this stage prior to securing the Sur-Fit brackets.
- Page 3 Slide horizontal mid-rail over the vertical spindles as illustrated. Slide the horizontal curved rail down over the vertical spindles as illustrated to complete one side panel. Repeat for other side panel. Note: Middle Spindle is slightly shorter than Side Vertical Spindles. The Fairfield Deluxe Arbor / Arch...
- Page 4 You will need a helper at this stage. Layout the opposite post and insert the finished side panel with post connected as illustrated. Fasten horizontal rail into Sur-Fit Brackets using small screws. Repeat for other side panel. The Fairfield Deluxe Arbor / Arch...
- Page 5 Fasten into place both horizontally (2 locations) and vertically (1 location) using 3" (76 mm) screws as illustrated. The screws provided are self tapping and do not require pre-drilled holes. Place post caps on top of posts. The Fairfield Deluxe Arbor / Arch...
- Page 6 S T E P F I V E Secure the Arbor Into Earth with Concrete Footing (Option One) Arch must be well secured to prevent tipping over from wind load, etc. Move the arbor to it's final location (you will need a helper). When you have identified the location of each post, mark the positions on the ground and then move the arbor aside.
