- Page 1 Operating and installatiOn Manual dHW Heat puMp » accelera 300 STIEBEL ELTRON Inc. 17 West Street | West Hatfield MA 01088 Tel. 413-247-3380 | Fax 413-247-3369 Email info@stiebel-eltron-usa.com www.stiebel-eltron-usa.com...
-
Page 2: Supplemental Directives

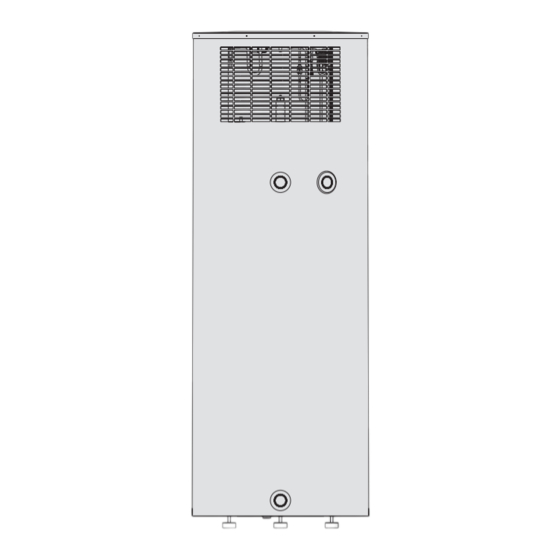

Copyright: These instructions describe the operation and installation of the Accelera 300 heat pump water heater. In the These operating and installation instructions are subject following, this heat pump water heater is described as to copyright. "appliance". Transferring these instructions to third parties, copying... -
Page 3: Table Of Contents
10.1. Installation location ���������������������������� 15 10.2. Shipping inspection ���������������������������� 15 10.3. Handling ����������������������������������������� 16 10.4. Storage ������������������������������������������� 16 10.5. Positioning the appliance ��������������������� 16 10.6. Unpacking the appliance ���������������������� 17 10.7. Water connection ������������������������������� 19 10.8. Power supply ����������������������������������� 20 WWW.stiebel-eltrOn-usa.cOM accelera 300 |... -
Page 4: Operation
Before any work on the appliance, disconnect all poles from the power supply. 1 Symbol (see chapter "Symbols") 2 Keyword (see chapter "Keywords") 3 Designations (see chapter "Symbols") 4 Information text | accelera 300 WWW.stiebel-eltrOn-usa.cOM... - Page 5 DIN ISO 16016 beachten. Änderungen von Seiten des Lieferanten bedürfen Gepr.: Datum: Maßstab Herausgabe Index: Hoersting 28.06.04 1 : 1 der vorherigen Genehmigung durch STIEBEL ELTRON K33631 Checked: Date: Measuring rod: Actual Index: For this drawing we reserve ourselves all rights to protection note Norm gepr.:...
- Page 6 No.: 8443 / 005204 DE: Enthält vom Kyoto - Protokoll erfasste fluorierte Treibhausgase - hermetisch geschlossenes System. Type: Accelera 300/WHP 300 Voltage / Frequency: Order-No.: 222423 Single phase 220-240 V, 50/60 Hz GB: Contains fluorinated greenhouse gases covered by the Kyoto Protocol - hermetically sealed.
- Page 7 OperatiOn general infOrMatiOn 9 Type plate 4 Information label "Hot water outlet" WW Austritt No.: xxxx / xxxxxx Type: Accelera 300/WHP 300 Order-No.: 222423 Voltage / Frequency: Single phase 220-240 V, 50/60 Hz Breaker: DHW outlet 15 amp. (rated power input):...
-
Page 8: Safety
"contractor". appliance operation. 3.5 Safety equipment Wear safety shoes/boots during the transportation and positioning of the appliance. Dry, this appliance weighs 130 kg. Safety shoes/boots reduce the risk of contusions. | accelera 300 WWW.stiebel-eltrOn-usa.cOM... -
Page 9: Particular Risks
(approx. supply during operation, the compressor will 27 gallon). only restart of the pressure inside the refrigerant circuit has been balanced. Pressure balance can only be created after three minutes. WWW.stiebel-eltrOn-usa.cOM accelera 300 |... -
Page 10: Operation
Alternatively, you can terminate the appliance operation by tripping the MCB. Observe that this MCB may protect other appliances too, which would then also be switched off. | accelera 300 WWW.stiebel-eltrOn-usa.cOM... -
Page 11: What To Do If
MCB trips again. » Ensure that the air intake and air discharge to/from the appliance is unobstructed. No.: xxxx / xxxxxx Type: Accelera 300/WHP 300 Order-No.: 222423 Voltage / Frequency: Single phase 220-240 V, 50/60 Hz Excessively high ambient temperature, excessively Breaker: 15 amp. -
Page 12: Safety
» During the appliance installation, wear safety goggles and gloves. WaRNING Injury moving parts represent a risk of injury. » Before opening the appliance, ensure that the fan, which may still be running, has come to a complete standstill. | accelera 300 WWW.stiebel-eltrOn-usa.cOM... -
Page 13: Qualification
In case of a fault, the safety equipment interrupts the 8.3.4 Customer service relevant power circuit. A service engineer is a contractor who was specially trained by us with regard to this appliance. WWW.stiebel-eltrOn-usa.cOM accelera 300 |... -
Page 14: Appliance Description
A sacrificial anode is inserted centrally from the top into the hot water tank of the appliance. Standard delivery - Accelera 300 heat pump water heater - Two adaptors from g 1 to ¾-14 NPTF - Two gaskets 30x20x3 - Two gaskets 30.0x20.0x4.0 EPDM - Adaptor from g ¾... -
Page 15: Installation
107 °F (42 °C). - To prevent nuisance through operating noise, never install the appliance in the vicinity of bedrooms. Prevent noise emissions towards a neighbor. - Allow adequate space around the appliance for installation, maintenance and cleaning tasks. WWW.stiebel-eltrOn-usa.cOM accelera 300 |... -
Page 16: Handling
(mm) 23.03 (585) clearance adjacent to the air grilles (see the following inch (mm) min. 15.75 (400) diagrams). inch (mm) 26.38 (670) inch (mm) min. 7.87 (200) » Level the appliance horizontally by adjusting the feet. | accelera 300 WWW.stiebel-eltrOn-usa.cOM... -
Page 17: Unpacking The Appliance
» Break out the free semi-shell of the lower section of the packaging. » Separate the lower packaging section at the dividing line. For this, make an incision of approx. 1.18 " (30 mm) into both sides of the dividing line. WWW.stiebel-eltrOn-usa.cOM accelera 300 |... - Page 18 Ensure that you do not set the appliance down in the area of the joint edge of the sheet steel jacket, but at least 5.9 " (150 mm) along. | accelera 300 WWW.stiebel-eltrOn-usa.cOM...
-
Page 19: Water Connection
» Connect the pipes. » After connecting the pipes, connect the protective caps so that the sheet steel casing of the appliance grips into the outer groove of the protective cap. WWW.stiebel-eltrOn-usa.cOM accelera 300 |... -
Page 20: Power Supply
0.12 " (3 mm) contact separation. For this, install contactors, circuit breakers or fuses. » Undo the screws from the appliance cover. For this, turn the eight screws anti-clockwise. » Remove the screws and remove the cover. | accelera 300 WWW.stiebel-eltrOn-usa.cOM... - Page 21 Risk of injury through inadequate earthing. » Ensure that the appliance is correctly earthed in accordance with the requirements at the place of installation. The earth conductor of the power cable must be connected to the terminal marked . WWW.stiebel-eltrOn-usa.cOM accelera 300 |...
-
Page 22: Commissioning
Once the appliance has been switched off following an interruption to its power supply, no special » Position the appliance cover and secure it with the recommissioning measures are required after the power screws. supply has been restored. | accelera 300 WWW.stiebel-eltrOn-usa.cOM... -
Page 23: Settings
107 °F (42 °C). The safety pressure limiter also responds if the heat pump thermostat fails. » After the cause of the fault has been removed, reset the safety pressure limiter by pressing the reset button. WWW.stiebel-eltrOn-usa.cOM accelera 300 |... -
Page 24: Troubleshooting
If no drain valve was installed, undo the fitting on the WaRNING Electric shock cold water supply of the appliance. maintenance work, such as checking the electrical safety, must only be carried out by an electrician. always disconnect the power supply before working on the appliance. | accelera 300 WWW.stiebel-eltrOn-usa.cOM... -
Page 25: Sacrificial Anode
15.5.2 Pressure reducing valve (on-site provision) » Check the on site pressure relief valve for perfect function. If required, replace the valve. WWW.stiebel-eltrOn-usa.cOM accelera 300 |... -
Page 26: Specification
D (height of the hot water connection from the appliance floor) inch (mm) 49.8 (1265) E (height of the cold water connection from the appliance floor) inch (mm) 2.28 (58) F (height of the leveling feet, adjustable) inch (mm) 0.87-2.36 (22-60) | accelera 300 WWW.stiebel-eltrOn-usa.cOM... -
Page 27: Wiring Diagram
High limit safety cut-out, booster heater Heat pump terminal Compressor motor protection (Klixon) Earthing, compressor Safety pressure limiter (high pressure) Earthing, booster heater M1 Compressor Capacitor M2 Fan Heat pump control thermostat Thermostat - booster heater Frost monitor WWW.stiebel-eltrOn-usa.cOM accelera 300 |... -
Page 28: Refrigerant Diagram
16.3 Refrigerant diagram >P Luft | accelera 300 WWW.stiebel-eltrOn-usa.cOM... -
Page 29: Data Table
Electrical fuse protection Rated power consumption, heat pump Rated power consumption HP (in accordance with DIN 8947, at 15 °C air temperature, 70% relative humidity and 45 °C water temperature) Power consumption, booster heater 1 690 WWW.stiebel-eltrOn-usa.cOM accelera 300 |... - Page 30 15 °C to 60 °C, in accordance with EN 255 T3, 240 V / 60 Hz) approx. 1.7 COP (t) (at 15 °C air temperature, 70% relative humidity, water heat-up from 15 °C to 60 °C, in accordance with EN 255 T3, 240 V / 60 Hz) 3.18 | accelera 300 WWW.stiebel-eltrOn-usa.cOM...
-
Page 31: Warranty
WarrantY | envirOnMent and recYcling Warranty information The warranty terms issued by the german companies that form the Stiebel Eltron group do not apply to appliances purchased outside germany. In countries, where subsidiaries of the Stiebel Eltron group exist, warranties can only be issued by those subsidiaries. - Page 32 Verkauf Tel. 0180 3 700705 | Fax 0180 3 702015 | info-center@stiebel-eltron.de 17 West Street | West Hatfield MA 01088 STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 0180 3 702020 | Fax 0180 3 702025 | kundendienst@stiebel-eltron.de Tel. 4 13-247-3380 | Fax 413-247-3369 Dr.-Stiebel-Straße | D-37603 Holzminden...
