  • Page 1 User Manual Model ID: COLORDASHBATTENH12XIP...
  • Page 2 Edition Notes The COLORdash Batten H12X IP User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the COLORdash Batten H12X IP as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and COLORdash are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    LED Frequency ......................16 Back Light ........................16 Key Lock ........................16 Information ........................16 Factory Reset......................... 16 System Update....................... 16 5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Contact Us......................Warranty & Returns....................COLORdash Batten H12X IP User Manual Rev. 1...

  • Page 4: Before You Begin

    LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. COLORdash Batten H12X IP User Manual Rev. 1...

  • Page 5: Safety Notes

    Manual will only apply to properly trained, certified technicians. Do not open the housing or attempt any repairs. All applicable local codes and regulations apply to proper installation of this product. If this Chauvet product requires service, contact Chauvet Technical Support. COLORdash Batten H12X IP User Manual Rev. 1...

  • Page 6: Introduction

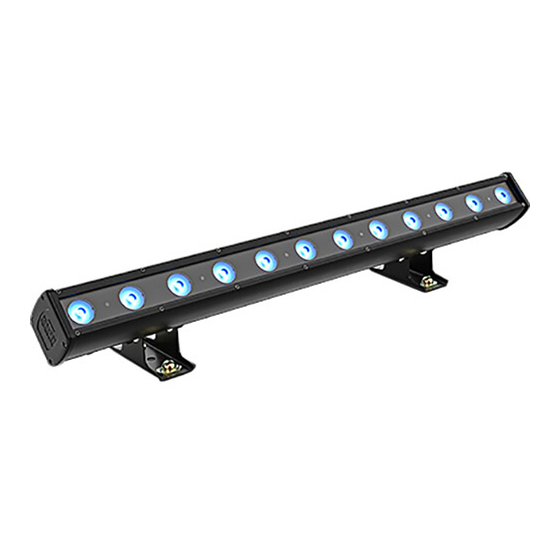

    Introduction 2. Introduction COLORdash Batten H12X IP is a 10W RGBAW LED batten that provides both indoor and outdoor usage. This versatile fixture functions at home or under any weather conditions with adjustable Pulse Width Modulation, Remote Device Management, and advanced optics. The COLORdash Batten H12X IP is also equipped with floor trunnions, omega brackets, and a touchscreen OLED display.

  • Page 7: Product Dimensions

    Introduction Product Dimensions 39.4 in 1000 mm 8.1 in 208 mm 3.8 in 96 mm COLORdash Batten H12X IP User Manual Rev. 1...

  • Page 8: Setup

    Green/Yellow Green/Yellow Green Power Linking It is possible to power link COLORdash Batten H12X IP products. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz 120 V, 60 Hz 208 V, 60 Hz...

  • Page 9: Master/Slave Connectivity

    COLORdash Batten H12X IP products (the slaves) without a DMX controller. One COLORdash Batten H12X IP becomes the master when running an auto program or by being in Static mode. Each slave’s control panel must be configured to operate in Slave mode. During Master/Slave operation, the slaves will operate in unison with the master.

  • Page 10: Operation

    <ENTER> Navigates downward through the menu list or decreases the numeric value when in a function Passcode When prompted, enter the following passcode: <UP>, <DOWN>, <UP>, <DOWN>, <ENTER>. This passcode cannot be changed. Menu Map Refer to the COLORdash Batten H12X IP product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels...
  • Page 11 Red/Blue/UV Red/Amber/White RAUV Red/Amber/UV RWUV Red/White/UV Green/Blue/Amber Green/Blue/White GBUV Green/Blue/UV Green/Amber/White GAUV Green/Amber/UV GWUV Green/White/UV Blue/Amber/White BAUV Blue/Amber/UV BWUV Blue/White/UV AWUV Amber/White/UV RGBA Red/Green/Blue/Amber RGBW Red/Green/Blue/White RGBUV Red/Green/Blue/UV RGAW Red/Green/Amber/White RGAUV Red/Green/Amber/UV COLORdash Batten H12X IP User Manual Rev. 1...
  • Page 12 Sets maximum blue value Balance Manual 125–255 Amber Sets maximum amber value White Sets maximum white value Sets maximum UV value 600Hz 1200Hz 2000Hz Sets the Pulse Width Modulation (PWM) frequency Frequency 4000Hz 6000Hz 25KHz COLORdash Batten H12X IP User Manual Rev. 1...
  • Page 13 Resets to factory default settings Factory Put the update file into the USB stick and connect it to the device System through an adapter cable. Update firmware via USB to DMX adapter cable Update COLORdash Batten H12X IP User Manual Rev. 1...

  • Page 14: Configuration (Dmx)

    The highest assignable starting address for 14CH is 499. • The highest assignable starting address for 42CH is 471. • The highest assignable starting address for 47CH is 466. • The highest assignable starting address for 59CH is 454. COLORdash Batten H12X IP User Manual Rev. 1...

  • Page 15: Control Channel Assignments And Values

    000  010 Open – – Strobe 9 011  255 Strobe, slow to fast Red 10 000  255 0–100% Green 10 000  255 0–100% Blue 10 000  255 0–100% COLORdash Batten H12X IP User Manual Rev. 1...
  • Page 16 000  051 Preset dimmer 052  101 Off – Dimmer speed 102  152 Dimmer speed 1 (Fast) 153  203 Dimmer speed 1 (Moderate) 204  255 Dimmer speed 1 (Slow) COLORdash Batten H12X IP User Manual Rev. 1...

  • Page 17: Dmx Mode 14Ch /13Ch / 9Ch / 8Ch / 6Ch

    0–100% 092  131 0–100% 100–0% 132  151 100–0% 0–100% 152  170 0–100% 100–0% 171  200 100% 100% 100% 100% 100% 201  255 0–100% 0–100% 0–100% 100–0% 0–100% COLORdash Batten H12X IP User Manual Rev. 1...

  • Page 18: Configuration (Standalone)

    The master should be the first product in the daisy chain. Dimmer Speed This setting determines how fast the output of the COLORdash Batten H12X IP changes when the user modifies the output value. This setting provides three different options to simulate the dimming curve of an incandescent lighting product.

  • Page 19: White Balance

    2. Follow the instructions (Put the update file into the USB stick and connect it to the device through an adapter cable). 3. Select NO (to cancel) or YES (to update the firmware). COLORdash Batten H12X IP User Manual Rev. 1...

  • Page 20: Maintenance

    6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. COLORdash Batten H12X IP User Manual Rev. 1...

  • Page 21: Technical Specifications

    6, 8, 9, 13, 14, 42, 47, or 59 channels Ordering Product Name Item Name Item Code UPC Number COLORdash Batten H12X IP COLORDASHBATTENH12XIP 10031868 781462222161 UL 1573 CSA C22.2 No. 166 E113093 COLORdash Batten H12X IP User Manual Rev. 1...

  • Page 22: Contact Us

    For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. COLORdash Batten H12X IP User Manual Rev. 1...
