- Page 1 Hall Technologies • 1234 Lakeshore Dr Suite #150 Coppell, TX 75019 • halltechav.com SW-HD-4A 4x1 HDMI Switch USER MANUAL August 9, 2023 Hall Technologies August 9, 2023 Page 1 of 16...
- Page 2 8. Protect the power cord from being walked on or pinched particularly at plugs. 9. Only use attachments / accessories specified by the manufacturer. Refer all servicing to qualified service personnel. Hall Technologies August 9, 2023 Page 2 of 16...
-
Page 3: Table Of Contents
Auto Switching ..........................12 Front Panel Lockout ........................12 Factory Default ..........................12 EDID Setting ..........................12 Troubleshooting ..........................13 Contacting Hall Technologies ......................14 Shipping and Packaging ......................... 14 Specifications ............................15 Hall Technologies August 9, 2023 Page 3 of 16... -
Page 4: Introduction

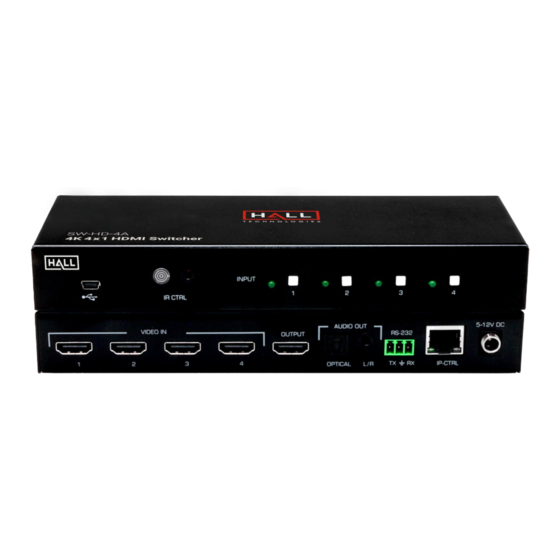

Introduction OVERVIEW The SW-HD-4A is a 4 input HDMI Switch with advanced switching technology enabling fast switching of four HDMI sources to a single HDMI output. The switcher supports resolutions up to 4K60 4:4:4 (UHD), 3D, and 36-bit deep color video. Switching can be controlled via front panel buttons, IR remote control, RS-232, Telnet, or a built-in Web GUI. -
Page 5: Package Contents
Package Contents GEM-EX-S 1x SW-HD-4A 1x Locking 12V DC Universal Power Supply 2x Mounting brackets. 4x Rubber Feet with adhesive 1x IR Remote Control 1x IR Remote Detector cable Installation Hall Technologies August 9, 2023... -
Page 6: Connectors And Indicators
Connectors & Indicators SW-HD-4A Name Description Firmware Upgrade Connect PC to USB Mini port to perform factory update. Port IR Senor Point included remote control at this sensor to control the switch. External IR Input Connect 3 party controller to IR port for IR control... - Page 7 • The IR remote control supplied with the unit can be used to select the desired HDMI INPUT, MUTE the HDMI OUTPUT audio or turn the system on or off (Unit will always be ON after a power cycle). Hall Technologies August 9, 2023...
-
Page 8: Rs-232 Control
• Unknown commands respond with “INVALID COMMAND” • All responses are terminated with <CR><LF> (0x0D, 0x0A) Command Response Function Query Device Name SW-HD-4A Switch to HDMI source Where: Where: n = HDMI Input[1 to 4] N = HDMI Input[1 to 4]... - Page 9 [IPv4 Address] xxx.xxx.xxx.xxx SN [IPv4 Address] Set Subnet [IPv4 Address] xxx.xxx.xxx.xxx Query subnet [IPv4 Address] xxx.xxx.xxx.xxx GW [IPv4 Address] Set Gateway [IPv4 Address] xxx.xxx.xxx.xxx Query Gateway [IPv4 Address] Query Firmware Version V1.0 Hall Technologies August 9, 2023 Page 9 of 16...
-
Page 10: Operation
Operation Web GUI Operation As shipped from the fctory (or after factory default reset), the SW-HD-4A IP address is set for a static IP address of 192.168.0.88 and a static GW (Gateway) address of 192.168.0.1. Use RS-232 terminal software to find the currently assigned IP and GW addresses (and to also set them as desired). -
Page 11: Input Channel Scanning
• Reboots the system. Input Channel Scanning The SW-HD-4A can automatically cycle through each of the connected HDMI Inputs. In this mode, each HDMI Input is displayed for 1 minute before changing to the next HDMI input. Auto-scan Mode can be enabled and disabled by external command (Web GUI), or via the front panel pushbuttons. -
Page 12: Auto Switching
Hold Input 3 button for 7 seconds to turn it off Front Panel Lockout Front panel buttons of SW-HD-4A can be locked via the Web GUI, RS-232, or Telnet to prevent users from switching or changing modes. When the front panel lock is enabled, attempts to change the input selection from the front panel will be ignored. - Page 13 720P@60 2 Built-In EDID with 8-bit color depth/ 2D3D/ PCM audio format/ 720p native resolution 720P@60 AC3 Built-In EDID with 8-bit color depth, 2D3D/ AC3 Digital audio format/ 720p native resolution Hall Technologies August 9, 2023 Page 13 of 16...
-
Page 14: Troubleshooting
There are no field serviceable parts or circuits in the device. Opening the unit will void the warranty. Contacting Hall Technologies If you determine that the SW-HD-4A is malfunctioning, do not attempt to repair the unit instead, contact Hall Research Technical Support at 800-959-6439 or support@haltechav.com. -
Page 15: Specifications
0x00, 0xBF, 0x02, 0xFD IR Input #1 0x00, 0xBF, 0x09, 0xF6 IR Input #2 0x00, 0xBF, 0x0D, 0xF2 IR Input #3 0x00, 0xBF, 0x11, 0xEE IR Input #4 0x00, 0xBF, 0x15, 0xEA Hall Technologies August 9, 2023 Page 15 of 16... - Page 16 © Copyright 2023. Hall Technologies All rights reserved. 1234 Lakeshore Drive, Coppell, TX 75019 halltechav.com / support@halltechav.com +1 (800)-959-6439 Hall Technologies August 9, 2023 Page 16 of 16...
