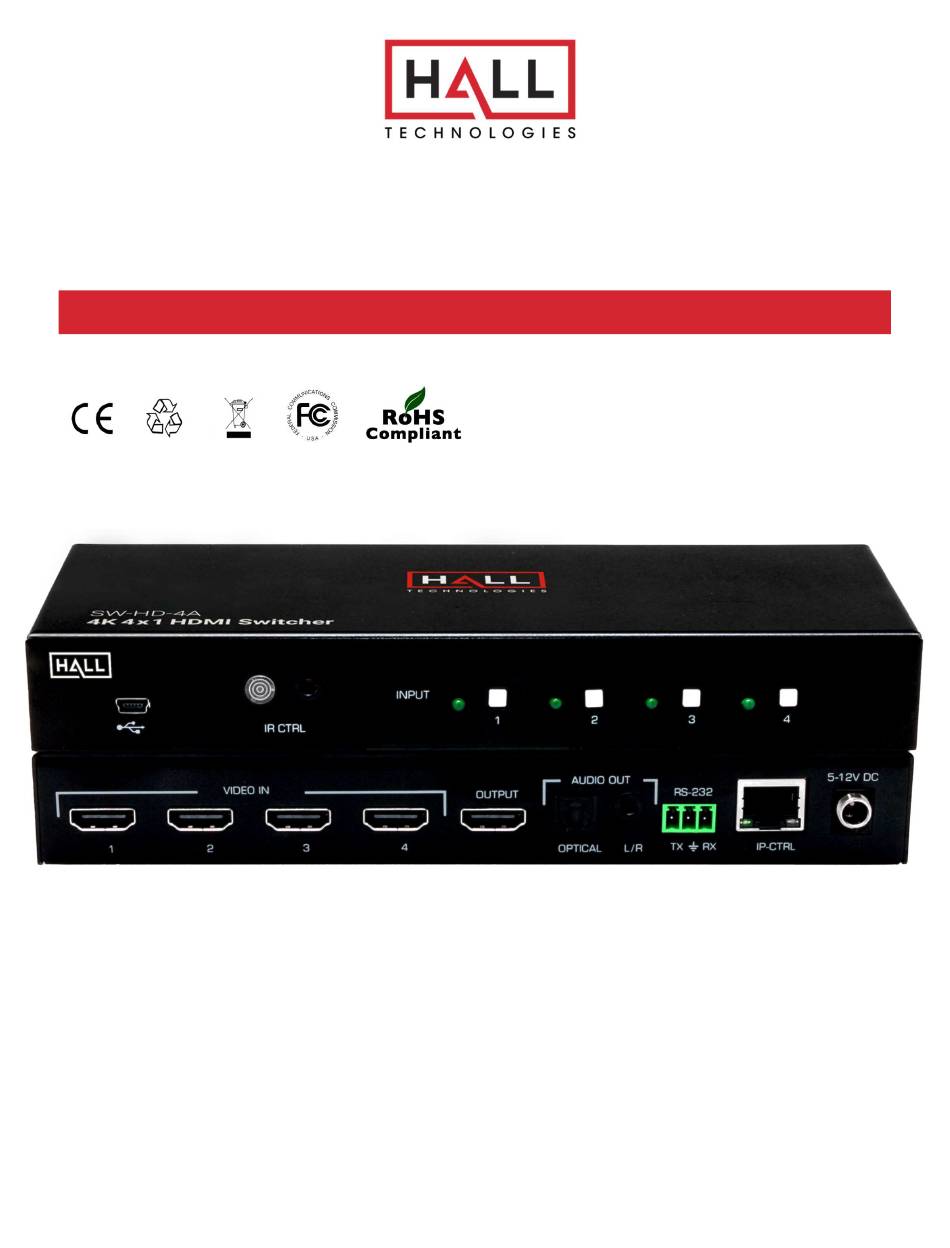

- Page 1 Hall Technologies • 1234 Lakeshore Dr Suite #150 Coppell, TX 75019 • halltechav.com SW-HD-4A 4x1 HDMI Switch USER MANUAL, v1.4 October 9, 2024 Hall Technologies October 10, 2024 Page 1 of 16...
-
Page 2: Important Safety Instructions
8. Protect the power cord from being walked on or pinched particularly at plugs. 9. Only use attachments / accessories specified by the manufacturer. Refer all servicing to qualified service personnel. Hall Technologies October 10, 2024 Page 2 of 16... -
Page 3: Table Of Contents
Web GUI Operation ........................10 Input Channel Scanning ........................ 11 Factory Default ..........................12 EDID Setting ..........................12 Troubleshooting ............................14 Contacting Hall Technologies ......................14 Shipping and Packaging ......................... 14 Specifications ............................15 Hall Technologies October 10, 2024 Page 3 of 16... -
Page 4: Introduction
Introduction OVERVIEW The SW-HD-4A is a 4 input HDMI Switch with advanced switching technology enabling fast switching of four HDMI sources to a single HDMI output. The switcher supports resolutions up to 4K60 4:4:4 (UHD), 3D, and 36-bit deep color video. Switching can be controlled via front panel buttons, IR remote control, RS-232, Telnet, or a built-in Web GUI. -
Page 5: Package Contents
Package Contents GEM-EX-S 1x SW-HD-4A 1x Locking 12V DC Universal Power Supply 2x Mounting brackets. 4x Rubber Feet with adhesive 1x IR Remote Control 1x IR Remote Detector cable Installation Hall Technologies October 10, 2024... -
Page 6: Configuration
SW-HD-4A Name Description Firmware USB Mini connection for updating firmware IR CTRL IR Receiver sensor for IR commands from the remote control IR CTRL IR Receiver port for adding an external IR sensor INPUT (buttons) Source selection buttons INPUT (LEDs) Source selection LEDs, showing the selected source HDMI inputs. -
Page 7: Operation
Unknown commands respond with “INVALID COMMAND” All responses are terminated with <CR><LF> (0x0D, 0x0A) Command Response Function Query Device Name SW-HD-4A Switch to HDMI source Where: Where: n = HDMI Input[1 to 4] N = HDMI Input[1 to 4]... - Page 8 = HDMI Input [1 to 4] Query HDMI Input Status m = HDMI State HDI? State THIS COMMAND NOT AVAILABLE IN Source not Connected TELNET SESSION State Unknown Source Connected HDCP1.4 Encrypted HDCP2.2 Encrypted Hall Technologies October 10, 2024 Page 8 of 16...
- Page 9 Query IP Address [IPv4 Address] xxx.xxx.xxx.xxx SN [IPv4 Address] Set Subnet [IPv4 Address] xxx.xxx.xxx.xxx Query subnet [IPv4 Address] xxx.xxx.xxx.xxx GW [IPv4 Address] Set Gateway [IPv4 Address] xxx.xxx.xxx.xxx Query Gateway [IPv4 Address] Hall Technologies October 10, 2024 Page 9 of 16...
- Page 10 Command Response Function Query Firmware Version V1.0 Factory Default Factory Default SW-HD-4A V1.0 REBOOT REBOOT Reboots the unit SW-HD-4A V1.0 Where: Simulates a power condition Where: n = 0 = Output Blanked, all LEDs off n = 0 = Output Blanked, all LEDs off...
-
Page 11: Web Gui Operation
Web GUI Operation As shipped from the fctory (or after factory default reset), the SW-HD-4A IP address is set for a static IP address of 192.168.0.88 and a static GW (Gateway) address of 192.168.0.1. Use RS-232 terminal software to find the currently assigned IP and GW addresses (and to also set them as desired). -
Page 12: Config Tab
Click this button to update the webpage settings. Apply Settings Click this button to apply any changes to the webpage settings. Reboot System Reboots the system. Hall Technologies October 10, 2024 Page 12 of 16... -
Page 13: Input Channel Scanning
“Apply Settings” in Config tab. 4.4 Front Panel Lock Front panel buttons of SW-HD-4A can be locked via the Web GUI, RS-232, or Telnet to prevent users from switching or changing modes. When the front panel lock is enabled, attempts to change the input selection from the front panel will be ignored. -
Page 14: Edid Setting
There are no field serviceable parts or circuits in the device. Opening the unit will void the warranty. Contacting Hall Technologies If you determine that the SW-HD-4A is malfunctioning, do not attempt to repair the unit instead, contact Hall Research Technical Support at 800-959-6439 or support@haltechav.com. -
Page 15: Specifications
0x00, 0xBF, 0x02, 0xFD IR Input #1 0x00, 0xBF, 0x09, 0xF6 IR Input #2 0x00, 0xBF, 0x0D, 0xF2 IR Input #3 0x00, 0xBF, 0x11, 0xEE IR Input #4 0x00, 0xBF, 0x15, 0xEA Hall Technologies October 10, 2024 Page 15 of 16... - Page 16 © Copyright 2023. Hall Technologies All rights reserved. 1234 Lakeshore Drive, Coppell, TX 75019 halltechav.com / support@halltechav.com +1 (800)-959-6439 Hall Technologies October 10, 2024 Page 16 of 16...
