Baxi Platinum 15 HE Installation & Servicing Instructions Manual

Wall mounted powered flue condensing boilers gas fired central heating units
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

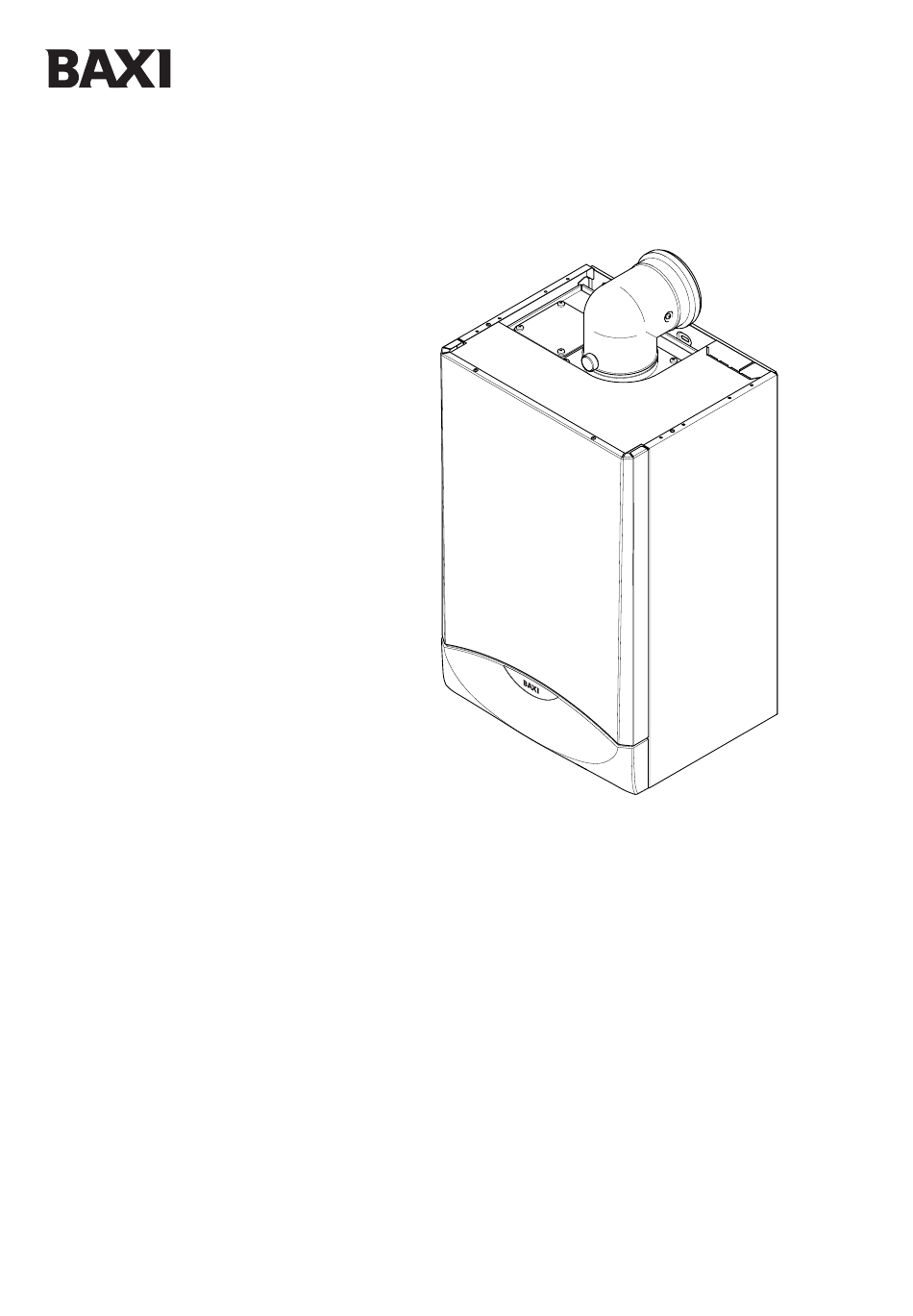

Installation & Servicing Instructions

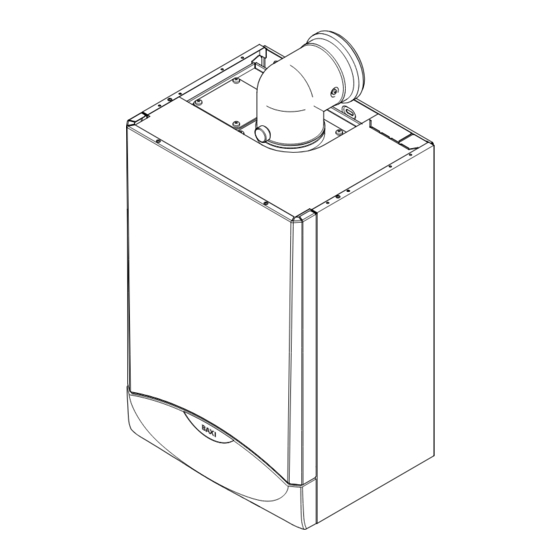

Baxi Platinum 15 HE
Baxi Platinum 24 HE
Wall Mounted Powered Flue Condensing Boilers
Gas Fired Central Heating Units
These instructions include the Benchmark Commissioning Checklist and
should be left with the User for sake keeping
© Baxi Heating UK Ltd 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Platinum 15 HE and is the answer not in the manual?

Questions and answers

Related Manuals for Baxi Platinum 15 HE

Summary of Contents for Baxi Platinum 15 HE

  • Page 1 Baxi Platinum 15 HE Baxi Platinum 24 HE Wall Mounted Powered Flue Condensing Boilers Gas Fired Central Heating Units These instructions include the Benchmark Commissioning Checklist and should be left with the User for sake keeping © Baxi Heating UK Ltd 2006...
  • Page 2 The flowchart opposite gives guidance for installers on the © Baxi Heating UK Ltd 2006 All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, or stored in any...
  • Page 3 CORGI is written onto the Benchmark Checklist CORGI will record the data and LABC will record the data will send a certificate of and will issue a compliance to the property certificate of compliance © Baxi Heating UK Ltd 2006...
  • Page 4 BS 7074 Expansion vessels and ancillary equipment for Notified Body 0087. sealed water systems. BS 7593 Treatment of water in domestic hot water central heating systems. Product/Production certified by: Notified Body 0086. For GB/IE only. © Baxi Heating UK Ltd 2006...
  • Page 5 If at any time when installing the boiler you feel that you may have injured yourself STOP !! DO NOT ‘work through’ the pain - you may cause further injury. IF IN ANY DOUBT DO NOT HANDLE OR LIFT THE BOILER - OBTAIN ADVICE OR ASSISTANCE BEFORE PROCEEDING !! © Baxi Heating UK Ltd 2006...

  • Page 6: Table Of Contents

    Dimensions and Fixings System Details Site Requirements Installation Electrical 10.0 Commissioning the Boiler 11.0 Fitting the Outer Case 12.0 Servicing the Boiler 13.0 Changing Components 14.0 Short Parts List 15.0 Fault Finding Benchmark Checklist © Baxi Heating UK Ltd 2006...

  • Page 7: Introduction

    1.0 Introduction Description 1. The Baxi Platinum 15 and 24 HE are gas fired room sealed fan assisted condensing central heating boilers. 2. The maximum output of the Baxi Platinum 15 HE is 52,000 Btu/hr. The maximum out put of the Baxi Platinum 24 HE is 75,000 Btu/hr.

  • Page 8: General Layout

    Reduce overall length of flue 241687 by 1m when fitting each bend) Horizontal Extended Flue (1.75M) 5111457 Plume Displacement 5117383 VERTICAL FLUE (110/70) Vertical Flue Terminal 242802 Vertical Flue Adaptor 5106888 Fig. 3 Fig. 4 Fig. 6 © Baxi Heating UK Ltd 2006...

  • Page 9: Appliance Operation

    ? 9. Ignition Lockout: The pump, fan, spark generator and gas valve are off. The boiler can only be reset by manually using the reset button. 1 minute Pump Overrun. 3 minute Anti-cycle. © Baxi Heating UK Ltd 2006...

  • Page 10: Technical Data

    This value is used in the UK Government’s Standard Assessment Procedure (SAP) for energy rating of dwellings. The test data from which it has been calculated has been certified by 0087. Water Flow Rate (litres/min) © Baxi Heating UK Ltd 2006...

  • Page 11: Dimensions And Fixings

    3° (1 in 20) fall in the flue from the terminal to the elbow. Flue length (Y) Clearance (X) up to 1m 55mm 1m - 2m 110mm 2m - 3m 165mm Fig. 8 © Baxi Heating UK Ltd 2006...

  • Page 12: System Details

    (Test kits are available from inhibitor stockists.) • For information or advice regarding any of the above contact Technical Enquiries. © Baxi Heating UK Ltd 2006...
  • Page 13 If Conditions Require, Fig. 11 This System Possible 22mm 200mm Feed & Vent Pipe Separator Boiler Pump Flow Return Alternative Low Head Installation Fig. 12 © Baxi Heating UK Ltd 2006...
  • Page 14 Pump must be run from Boiler P/F connection for Part L1 compliance By-pass not permitted (must be valved off) for Part L1 compliance By-pass not permitted (must be valved off) for Part L1 compliance © Baxi Heating UK Ltd 2006...
  • Page 15 All components used in the system must be suitable for operation at 110°C (230°F) and at the pressure allowed by the safety valve. Temporary Hose Mains Return Fig. 14 Inlet © Baxi Heating UK Ltd 2006...

  • Page 16: Site Requirements

    3. Any compartment should be large enough to house the boiler only. NOTE: The ventilation label on the front of the outer Fig. B case MUST NOT BE REMOVED when the appliance is In GB Only installed in a compartment or cupboard. © Baxi Heating UK Ltd 2006...
  • Page 17 3mm in all poles and servicing the boiler and system controls only. 320mm WARNING: The PCB Control and Fan Assembly are 325 Vdc. Isolate at supply In Operation Fig. 16 before access. © Baxi Heating UK Ltd 2006...
  • Page 18 & vent pipe ii) via an internal discharge branch (e.g. sink waste) 500mm min iii) to a drain or gully iv) to a purpose made soakaway Holes in the soak-away must face away from the building © Baxi Heating UK Ltd 2006...
  • Page 19 6. * Reduction to the boundary is possible down to 25mm but the flue deflector kit (part no. 248167) must be fitted. 7. If required a suitable terminal guard is available from Baxi for use with the flue deflector. Top View Rear Flue 8.
  • Page 20 Twin flue adaptor kit 242757 Vertical flue terminal 242802 Universal roof tile 25°/50° 243015 Roof cover plate kit 243131 Flat roof flashing 243016BAX Vertical flue adapter 5106888 Clamp 80mm 238684 Plume Displacement Kit 5117383 © Baxi Heating UK Ltd 2006...
  • Page 21 100mm from 70Ø Exhaust any opening windows or doors (see Section 7.9). Plume Displacement Kit Air Inlet Concentric 70/110 Flue (MUST be installed Opening Window horizontally) or Door 100mm Fig. 17b Fig. 17c MIN. © Baxi Heating UK Ltd 2006...
  • Page 22 7.12 Vertical Flue Fig. 18a 1. Only a flue approved with the Baxi Platinum 15 and Pictorial examples of flue runs where EQUIVALENT flue length equals 4m 24 HE can be used. 2. For information on vertical flues consult the Baxi Flue Guide Brochure or Notes for Guidance supplied with the vertical flue pack.

  • Page 23: Installation

    (Fig. 22). Centralising Screw 8. Loosely route the condensate discharge pipe to the lower left hand side of the wall plate. Wall Plate Fig. 22 © Baxi Heating UK Ltd 2006...
  • Page 24 2. Remove the internal packaging. Securing Screw 3. Hinge down the lower door panel and unscrew the securing screws. Lift the outercase upwards and remove (Fig. 23). Outercase Break Off Upper & Lower Pipe Run Options Fig. 23 © Baxi Heating UK Ltd 2006...
  • Page 25 - Carefully pour approximately 1 cupful (250ml) of water into the flue products exhaust, at the top of the heat exchanger (Fig. 25a) to ensure a seal is made in the trap. © Baxi Heating UK Ltd 2006...
  • Page 26 Deburr both tube ends. IMPORTANT: Check all measurements before cutting. NOTE: When cutting ensure the cut does not Fig. 27a interfere with the inner flue support bracket (Fig. 27a). © Baxi Heating UK Ltd 2006...
  • Page 27 13. If necessary fit a terminal guard (see Section 7.9). Gasket VERTICAL FLUEING 1. Only a flue approved with the Baxi Platinum 15 and 24 HE can be used. 2. For information on vertical flues consult the Baxi Flue Guide Brochure or Notes for Guidance supplied with the vertical flue pack.
  • Page 28 6. Check the electrical installation for; earth continuity, short circuits, resistance to earth, correct polarity and fuse failure. Fig. 31 Cable Clamp 4-way Terminal Block Optional Pump Feed Connection. Only required for fully TRV’d systems Fig. 33 © Baxi Heating UK Ltd 2006...

  • Page 29: Electrical

    Trap Key To Wiring Colours b - Blue r - Red bk - Black g - Green w - White g/y- Green/Yellow br - Brown op - Opaque gy - Grey y - Yellow © Baxi Heating UK Ltd 2006...
  • Page 30 Fan Overheat Thermostat Flow Overheat Thermostat Wiring Key - Blue bk - Black br - Brown - Red w - White g/y - Green/Yellow - Green gy - Grey op - Opaque - Yellow © Baxi Heating UK Ltd 2006...

  • Page 31: Commissioning The Boiler

    Section 4.0 Technical Data. WARNING: The PCB Control and Fan Assembly are 325 Vdc. Isolate at supply before access. DO NOT check gas pressure here Fig. 36 Inlet Gas Pressure Test Point © Baxi Heating UK Ltd 2006...

  • Page 32: Fitting The Outer Case

    10. Complete the label supplied with the inhibitor and stick to the inside of the boiler case. Detail of system Fig. 38 treatment must be recorded in the Benchmark Lower Door Panel Commissioning Checklist. © Baxi Heating UK Ltd 2006...

  • Page 33: Servicing The Boiler

    Hazardous materials are not used in the construction of Baxi products, however reasonable care during service is recommended. When replacing the combustion box door after servicing it is essential that the retaining screws are tightened fully.
  • Page 34 Securing Screws 13. Complete the relevant Service Interval Record Burner Securing section of the Benchmark Commissioning Checklist at Screws Fig. 44 the rear of this publication and then hand it back to the user. © Baxi Heating UK Ltd 2006...

  • Page 35: Changing Components

    Hazardous materials are not used in the construction of Baxi products, however reasonable care during service is recommended. When replacing the combustion box door after changing components, it is essential that the retaining screws are tightened fully.
  • Page 36 6. Remove the flowswitch. 7. Fit the new flowswitch and reassemble in reverse Flow Switch order. 8. Recommission the boiler and check the inhibitor Flow Pipe concentration (see Section 6.2 and 10.1). Fig. 47 Clip © Baxi Heating UK Ltd 2006...
  • Page 37 2. Lift Control PCB housing out of hinge housing of metal bracket. Fig. 48 PCB Housing Securing 3. Fit the new PCB Housing Assembly and reassemble Screw in reverse order. Hinge down PCB Housing Blue (CN11) Jumper Red (CN12) Jumper Fig. 49 © Baxi Heating UK Ltd 2006...
  • Page 38 6. Fit the new fan and reassemble in reverse order. Opening Screw Gasket The injector pipe, condensate trap and gas valve can be changed after the removal of the fan. Protection Sensor Venturi Electrical Connections Fig. 52 Electrical Connection Wing Nuts © Baxi Heating UK Ltd 2006...
  • Page 39 5. Disconnect the sensor leads. Service Drain 6. Fit the new condensate trap and reassemble in reverse Plug Condensate order. Drain Pipe Fig. 54 7. Prime the condensate trap (fill first chamber), check for leaks. © Baxi Heating UK Ltd 2006...
  • Page 40 6. Fit the new heat exchanger and reassemble in reverse Fig. 58 order. 7. Recommission the boiler and check the inhibitor Heat Exchanger concentration (see Section 6.2 and 10.1). Manifold Heat Exchanger Assembly Fig. 59 © Baxi Heating UK Ltd 2006...
  • Page 41 5. Remove the combustion box base. Combustion Box Base Securing Screws 6. Pull the central insulation panel down from the Burner Securing centre of the heat exchanger. Screws 7. Fit the new insulation pad and reassemble in reverse order. © Baxi Heating UK Ltd 2006...

  • Page 42: Short Parts List

    E06 060 Safety Thermostat (Black) 242235 5110991 5109925 Gas Valve 241900 E06 085 Viewing Window 242484 Condensate Trap 5111714 Electrodes Kit 5110992 Burner Assy 5107430 E06 097 Heat Exchanger Assy 242497 Control Knob 5109996 © Baxi Heating UK Ltd 2006...

  • Page 43: Fault Finding

    Lights On On Flash PCB Fault Replace PCB. Lights Go to Fan Lockout Flash Flash On section of the fault finding instructions. Lights Flash On On PCB Fault Replace PCB. © Baxi Heating UK Ltd 2006...
  • Page 44 Check wiring from 240V at B ? terminal block to PCB. Optional Pump Live Check for shorts on pump, fan & gas valve. PCB fuse OK ? Replace if shorted & replace fuse. Replace PCB. Fuse © Baxi Heating UK Ltd 2006...
  • Page 45 Pump Live Remove Is there a flow switch from boiler. Is there a physical blockage to Replace Flow Switch. blockage in the system ? the paddle within the flow switch ? Remove Blockage. Remove Blockage. © Baxi Heating UK Ltd 2006...
  • Page 46 3 and 4mm ? Is the wiring from PCB to spark probe & flame burner blocked or Replace PCB. detection probe OK ? damaged ? Clean burner or replace as Rectify wiring. necessary. © Baxi Heating UK Ltd 2006...
  • Page 47 (red sensor on flow pipe). Replace thermistor. Is resistance between 0.5kΩ & 20kΩ ? Replace combustion combustion chamber chamber door seal & trim door seal damaged or not in seal. place ? Replace PCB. © Baxi Heating UK Ltd 2006...
  • Page 48 6-way PCB connector. Is there Rectify wiring. continuity from R to S & from T to U & from V to W ? Viewed from Wire Entry end Replace fan. © Baxi Heating UK Ltd 2006...
  • Page 49 Replace thermistor. 0.5kΩ & 20kΩ ? Plug in thermistor, leave Wiring from PCB to 8-way connector unplugged. thermistor faulty. Viewed from Is resistance at D between 0.5kΩ & 20kΩ ? Wire Entry end Replace PCB. © Baxi Heating UK Ltd 2006...

  • Page 50: Benchmark Checklist

    5 1 1 6 8 3 7 BENCHMARK No. GAS BOILER COMMISSIONING CHECKLIST C O L L E C T I V E M A R K BOILER SERIAL No. NOTIFICATION No. CONTROLS To comply with the Building Regulations, each section must have a tick in one or other of the boxes TIME &...
  • Page 51 SERVICE INTERVAL RECORD It is recommended that your heating system is serviced regularly and that you complete the appropriate Service Interval Record Below. Service Provider. Before completing the appropriate Service Interval Record below, please ensure you have carried out the service as described in the boiler manufacturer’s instructions.
  • Page 52 A T r a d in g D i v i s i on of B a x i H eat i ng U K L td Brooks House, Coventry Road, Warwick. CV34 4 LL After Sales Service 08700 60 30 60 Technical Enquiries 08706 049 049 Website www.baxi.co.uk e&oe © Baxi Heating UK Ltd 2006 Comp N 5116837 - Iss 2 - 10/06...
