Select /
The
Select LED board is only suitable for installa-
tion in dry indoor rooms.
The
Select IP68 LED board is only suitable for
installation out of doors and in wet rooms.

Risk of electric shock!

Be sure to have a professional electrician complete instal-
lation. There is no warranty coverage for any lights instal-
led without observing European safety directives.
Caution!
Only connect the LED board to a suitable power supply
24 V DC.
Only operate when completely unrolled.
Connect LED boards in parallel.

Delivery includes

Select /
Select IP68
1 x 5 metres LED board
5 x supply connectors
1 x straight connectors
Select IP68
1 x silicon gel (88670)
2 x silicon end caps
2 x silicon caps for supply connectors
30 x fixing brackets

Technical data

Power supply
12 V power supply with
constant voltage output.
Power
48 W
Current strength
4 A
Radiation angle
120°
Quantity LED
600
Length
maximum 10 metres per connection
Dimensions
Select
5000 x 8 mm
Select IP68
5000 x 11 mm
Bending radius
Select IP68

Installation

Risk of electric shock
Switch off voltage prior to installation. Ensure that voltage
cannot be accidentally switched on again.
First connect the LED strip to a controller and then to the
power supply unit (not included in the scope of delivery).
Mounting
Caution!
On conducting surfaces, place an insulation layer between
the LED board and surface. Surfaces must be flat, free of
dust, grease and dry.
1. Prepare surface.
2. Shorten LED board if necessary (Fig. 2).
3. Peel off adhesive film and gently press on LED board, do not
press directly on the LEDs.
4. Connect LED board to power supply.
Mounting
1. Shorten LED board if necessary (Fig. 2).
2. Attach LED board with fixing brackets
(recommended spacing: every 15-20 cm).
20 mm
Safety class 3 - low voltage protection
Suitable for indoor unse only.
Select
Compliant with the applicable
European CE directives
Select
Select IP68
Figure 1

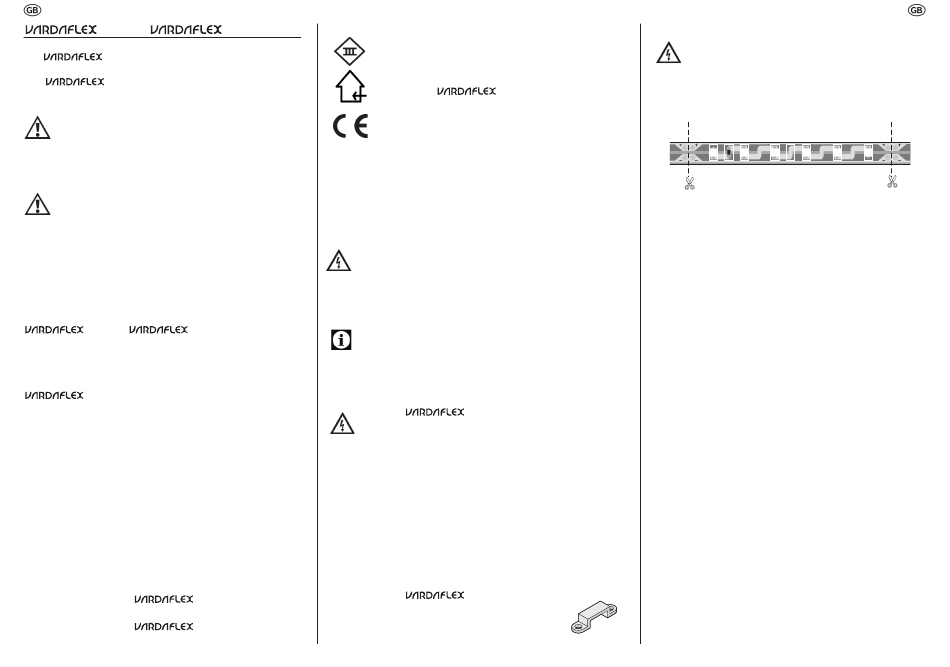

Shortening the LED board

Risk of electric shock!
Always disconnect the mains plug before shortening.
LED boards can be disconnected in each case after
six LEDs (Fig. 2).
1. Cut through the LED board at the marked position.
Figure 2
