BLINGRING 40T HD
UseR MANUAL
Doc-V2.2
lekkie Bling ring 40T hD user Manual
www.lekkie.Tech

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLINGRING 40T HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Lekkie BLINGRING 40T HD

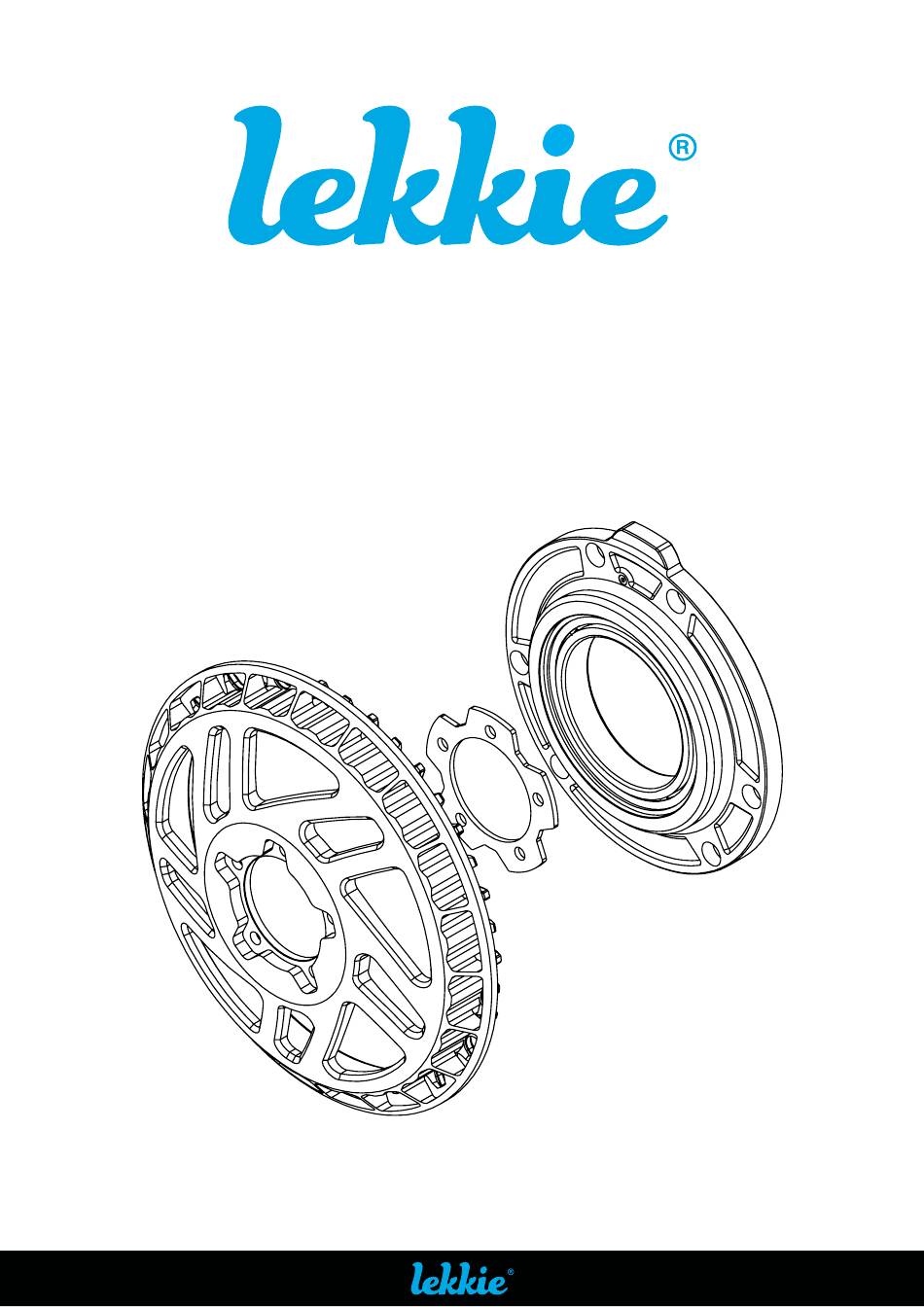

  • Page 1 BLINGRING 40T HD UseR MANUAL Doc-V2.2 lekkie Bling ring 40T hD user Manual www.lekkie.Tech...
  • Page 2: Parts List

    BLING RING 40T HD PAckAGe coMPATIBLe wITH BafaNG BBshd, M625, M325 INcLudes 1x LekkIe BLING RING 40T HD 1x 2MM BLING RING HD sPAceR (oR MULTI sPAceR foR V4) 1x DRIVe coVeR HD AsseMBLy lekkie Bling ring 40T hD user Manual www.lekkie.Tech...
  • Page 3: Tips And Tricks

    • Loctite 243 • Scribe/fine tip marker • Small metal file when installing the Lekkie Drive cover HD you will require some tools and some hands on experience with your motor. If you do not the have required tools, confidence or skills to install this take your motor to your local bike shop or engineering shop and they should be able to help you out.
  • Page 4 Before you can install the Lekkie Drive cover HD you need to remove the stock Bafang cover and bearing. This also gives you the opportunity to check the condition of your drive gear, pinion and bearings and replace any parts as needed. It is important to keep the internal components free from dirt/grit, so before opening the housing thoroughly wipe down external surfaces and keep a clean work area to ensure it all goes back together without contamination.
  • Page 5 Bling Ring*. This modification will require you to file a small amount of material off your motor. When completed correctly the performance and durability of the motor will not be effected. 1. Place the Lekkie Drive cover HD on the 2. Remove the Lekkie Drive cover HD. motor and mark the edge of the cover, Note the scribed mark showing material scribing onto the motor housing in the area requiring removal.
  • Page 6 Do not force any parts and if you are unsure, stop the assembly and contact us. 1. Press the main drive gear into the new 2. Insert the clutch assembly into the drive bearing in the Lekkie Drive cover HD. gear, making sure the pawls are engaging Note: Grease the inner edge of the bearing.
  • Page 7 To keep your motor running its best its important to regularly grease the main drive gear and pinion. we have added a grease port to the Lekkie Drive cover HD V2 to allow this. To do so simply remove the grease port screw and using a grease gun, squirt moly-grease in while slowly turning the motor.
  • Page 8 • Try to get the chainline to the centre of your cassette - see below for details. • clean and lubricate chain regularly. • Do NoT use half links in the chain. • Always grease axle before re-installing cranks. lekkie Bling ring 40T hD user Manual www.lekkie.Tech...
  • Page 9 73mm BB bike try installing without the spacer. There must be at least 1.5mm gap between the ring and chainstay. on full suspension mountain Bikes ensure adequate clearance at all stages of suspension travel lekkie Bling ring 40T hD user Manual www.lekkie.Tech...
  • Page 10 The Lekkie Bling Ring is compatible with most chains. If your chain is not sitting well on the chainring try using a shimano chain compatible with the number of gears. eG HG-x11 11 speed.
  • Page 11: Warranty

    Qc system and made it to your hands let us know and we will put it right. If one of our products fails we want to know so we can make our products better. If you destroy a lekkie product in extreme use tell us. we can learn from this and sell you something so suit your needs.
