Lekkie DRIVE COVER HD User Manual

Compatable with bafang bbshd motor

Download this manual

TIPS AND TRICKS

FOR LEKKIE DRIVE COVER HD

COMPATABLE WITH BAFANG BBSHD MOTOR

INCLUDES

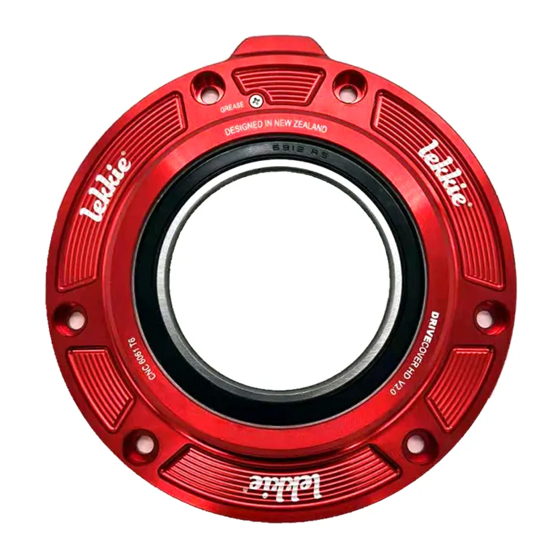

1X DRIVE COVER HD V2

1X MAIN BEARING

1X GREASE PORT SCREW

NOTE: FOR V2 OR NEWER

TOOLS REQUIRED

• 8mm hex key

• 4mm hex key

• Rubber mallet

• Bearing press

• Moly-grease

• All purpose lithium grease

• High viscosity cassette grease

• Loctite 243

When installing the Lekkie Drive Cover HD you will require some tools and some hands on experience with

your motor. If you do not the have required tools, confidence or skills to install this take your motor to your

local bike shop or engeering shop and they should be able to help you out.

INSTALL TIPS

Here are some tips to keep in mind while completing the install.

• Check paper gasket and replace if damaged.

• When the motor is open check all bearings and replace/re-grease if need be.

• To keep everything running smooth end easy to maintain make sure you grease all metal to metal

surfaces.

• Clean any excess grease out of the motor while it is open.

• Clean and grease the main gear and pinion.

• Always grease the axle taper before install cranks.

LEKKIE DRIVE COVER HD USER GUIDE V2

WWW.LEKKIE.TECH

Need help?

Do you have a question about the DRIVE COVER HD and is the answer not in the manual?

Page 1 • High viscosity cassette grease • Loctite 243 When installing the Lekkie Drive Cover HD you will require some tools and some hands on experience with your motor. If you do not the have required tools, confidence or skills to install this take your motor to your local bike shop or engeering shop and they should be able to help you out.
Page 2 DISASSEMBLY Before you can install the Lekkie Drive Cover HD you need to remove the stock Bafang cover and bearing. This also gives you the opportunity to check your drive gear, pinion and bearings and replace any parts as needed.
Page 3 If you are not comfortable doing this you will just need to use your the supplied spacer to clear the motor. 1. Place the Lekkie Drive Cover HD on the 2. Remove the Lekkie Drive Cover HD. Note motor and trace pinion cover edge.
Page 4 Do not force any parts and if you are unsure, stop the assembly and contact us. 1. Press the main drive gear into the new 2. Insert the clutch assembly into the drive bearing in the Lekkie Drive Cover HD. gear, making sure the pawls are engaging Note: Grease the inner edge of the bearing.
Page 5: Warranty
QC system and made it to your hands let us know and we will put it right. If one of our products fails we want to know so we can make our products better. If you destroy a lekkie product in extreme use tell us. We can learn from this and sell you something so suit your needs.
