Owner's Manual
4K HDMI Splitters
Este manual está disponible en español en la página de Eaton:
Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de Eaton :
Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar:
Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di Eaton:
Tripplite.Eaton.com/support
07-726-93363A-EN.indd 1
07-726-93363A-EN.indd 1
B118-002-UHD,
B118-002-UHDINT,
B118-004-UHD,
B118-004-UHDINT,
B118-008-UHD

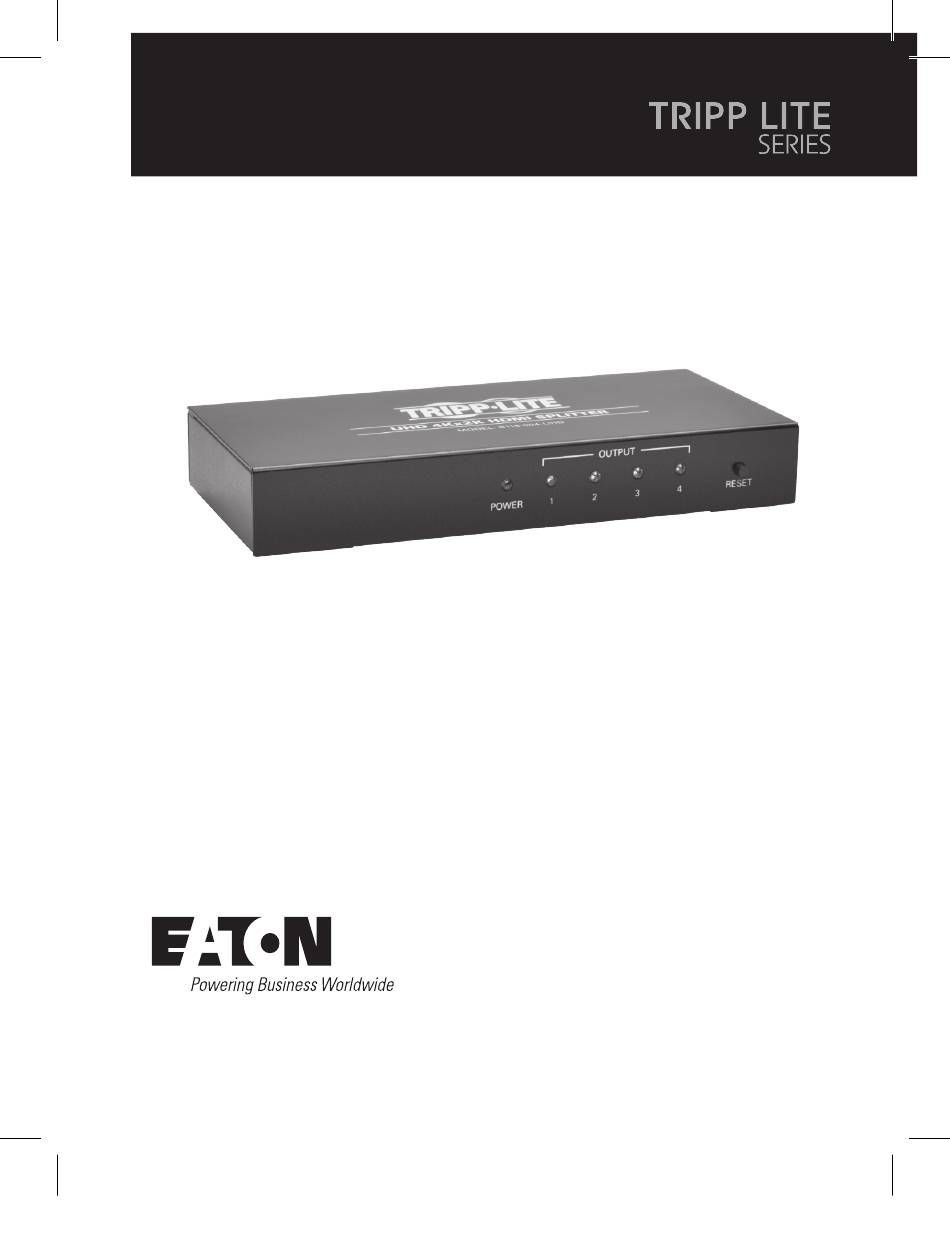

Purchased product
may differ from image.
1/19/2024 3:31:29 PM
1/19/2024 3:31:29 PM
1
Advertisement
Table of Contents
Related Manuals for Eaton TRIPP LITE B118-002-UHD
Summary of Contents for Eaton TRIPP LITE B118-002-UHD
- Page 1 Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support...
-
Page 2: Product Features
Product Features • Simultaneously transmit video and audio from an HDMI source to multiple HDMI monitors • Supports UHD 4K x 2K video resolutions up to 3840 x 2160 (24 Hz and 30 Hz) and 3D • Supports 36-bit Deep Color (12 bits per channel) •... -
Page 3: Package Contents
Package Contents • UHD 4K x 2K HDMI Splitter • External Power Supply • B118-002-UHD (Input: 100-240V, 50/60 Hz, 0.2A; Output: 5V 1A) • B118-002-UHDINT (Input: 100-240V, 50/60 Hz, 0.2A; Output: 5V 1A)* • B118-004-UHD (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A) •... -
Page 4: Installation
Installation Source B118-008-UHD Notes: • The maximum distances referenced in these instructions have been tested at a UHD 4K x 2K video resolution of 3840 x 2160 @ 24 Hz and 30 Hz with 36-bit (12 bits per channel) Deep Color using 28 AWG (0.08 mm2) HDMI cables. Longer distances between the splitter and connected monitors are achievable using 24 AWG (0.2 mm2) HDMI cables. - Page 5 Installation Connect an available Output port on the splitter to the HDMI input port of your display. Note: The length of the HDMI cable connecting the splitter to the display must not exceed 23 ft. (7 m). Repeat step 3 for the remaining Output ports on the splitter. Connect the included power supply to the splitter, then plug it into a Surge Protector, Power Distribution Unit (PDU), or Uninterruptible Power Supply (UPS).
-
Page 6: Troubleshooting
Troubleshooting If you are unable to obtain an acceptable image after following the installation instructions, try the troubleshooting tips below: Press the reset button on the splitter to reset the signal being sent to the connected displays. Note: The B118-002-UHD and B118-002-UHDINT do not include a reset button. Is the external power supply that came with the product connected and plugged into a working power source? For the product to function properly, it must be connected to and receiving power from the external... -
Page 7: Warranty
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Eaton could void the user’s authority to operate this equipment. 07-726-93363A-EN.indd 7 07-726-93363A-EN.indd 7... - Page 8 Eaton has a policy of continuous improvement. Specifications are subject to change without notice. Eaton 1000 Eaton Boulevard...
