- Page 1 AXIS Ex Series Installation Manual IM001...
-
Page 2: Version History

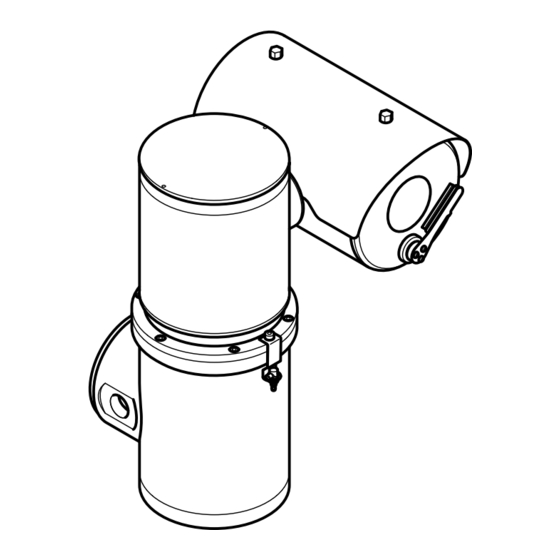

AXIS Ex Series Version history Version Date Details 2021-09-17 First release 2022-01-10 Added mining information 2023-05-12 Added information about type F31111 Updated document with new part number... - Page 3 AXIS Ex Series Housing The AXIS Ex camera series has four housings: two types with PTZ housings and two types with fixed housings, each with visual imaging options and thermal imaging options. The visual cameras include a wiper. Type Housing...
-
Page 4: Specific Conditions Of Use
AXIS Ex Series Specific conditions of use WARNING Always refer to the product certificates for any specific conditions of use. • Flameproof joints are not to be modified. • Cable temperature can exceed 60 °C. Use a suitable cable for the end application. -
Page 5: Installation
Fixing brackets must be tightened upon installation. Suitable screws must be used. See the product’s datasheet for information about the product weight. • Replacement parts may only be installed using component parts as specified by Axis Ex AB. • Distances between the flamepaths and sunshield and between the flamepaths and any... - Page 6 AXIS Ex Series and North American certifications and do not require any minimum clearance to be maintained for hazardous environment installation. Wiring WARNING The device must be electrically installed and serviced by skilled persons. • AC mains electrical supply should include circuit breaker rated maximum 20 A.
- Page 7 AXIS Ex Series Wiring of P21 and P23 Earth supplemental bonding TB1 auxiliary OUT Network connector RJ45 SFP cage TB2 supply IN Earth stud TB2 supply live TB2 supply neutral TB2 N/C 10 TB1 auxiliary OUT +48 V DC 14.4 W max 11 TB1 auxiliary OUT 0 V DC Connect the PTZ camera wiring to the connection chamber at the base of the device.
- Page 8 AXIS Ex Series 1. Remove the two locking grub screws. Use the included stainless steel bits. 2. Remove the threaded chamber cover. To avoid damaging the threads, use the included removal tool. 3. Route the cables through threaded entry points and suitably certified glands.
- Page 9 AXIS Ex Series Wiring of F31 and F33 Earth supplemental bonding Earth stud TB2 supply IN TB1 auxiliary OUT SFP cage Network connector RJ45 TB2 supply live TB2 supply neutral TB2 N/C 10 TB1 auxiliary OUT +48 V DC 14.4 W max...
- Page 10 AXIS Ex Series Wiring of F31111 Earth supplemental bonding Auxiliary OUT connector I/O connector Audio connectors AC mains IN connector Network connector RJ45 (PoE) SFP connector RS485 BA connector Internal wiring – Don’t modify! 10 Earth stud...
- Page 11 AXIS Ex Series 11 RS485 terminal Pin 1: A Pin 2: B 12 Auxiliary OUT terminal Pin +: Auxiliary OUT +48 V DC 14.4 W max Pin –: Auxiliary OUT 0 V DC 13 I/O terminal Pin 1: DC ground, 0 V DC Pin 2: DC output, 12 V, max load 50 mA Pin 3–4: Digital input or supervised input, 0 to max 30 V DC...
- Page 12 AXIS Ex Series WARNING The use of a fiber optic cable and internal connections shall comply with requirements of UL/IEC/EN 60079-14. When wiring is completed, fit the back cover. Tighten the 6 M5x12 A4 socket head screws to 6 Nm...
-
Page 13: Maintenance
CAUTION Do not replace the battery yourself. Contact Axis support if the log message requests a battery change. Lithium coin cell 3.0 V batteries contain 1,2-dimethoxyethane; ethylene glycol dimethyl ether... -
Page 14: Specifications
AXIS Ex Series Specifications Markings You can find the markings on the devices’ main body. Note Information below is only an example. For specific information, see the product’s datasheet. Manufacturer’s name and address Axis Ex AB Gränden 1 SE-223 69 LUND... - Page 15 AXIS Ex Series Ingress protection IP66/IP67/68, Type 4X Voltage PTZ: 100 - 240 V AC ±10% Fixed: 100 - 240 V AC ±10% POE 802.3bt Type 3 Power PTZ: 150 W Fixed: 56 W Frequency 50 - 60 Hz Entry thread size...
- Page 16 AXIS Ex Series Example of marking on type F31111. Certifications may vary between different models.
- Page 17 AXIS Ex Series Dimensions type P21 and P23...
- Page 18 AXIS Ex Series Dimensions type F31 and F33...
-
Page 19: Further Information
Further information • The user manual is available at axis.com • To check if there is updated firmware available for your device, see axis.com/support • For useful online trainings and webinars, see axis.com/academy Optional accessories For a complete list of available accessories for this product, go to the product’s page on axis.com and select Software &... -
Page 21: Safety Information
AXIS Ex Series Safety information Hazard levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. - Page 22 Installation Manual IM001 Ver. M3.4 AXIS Ex Series Date: May 2023 © 2021 - 2023 Axis Communications AB Part no. 2820140...
