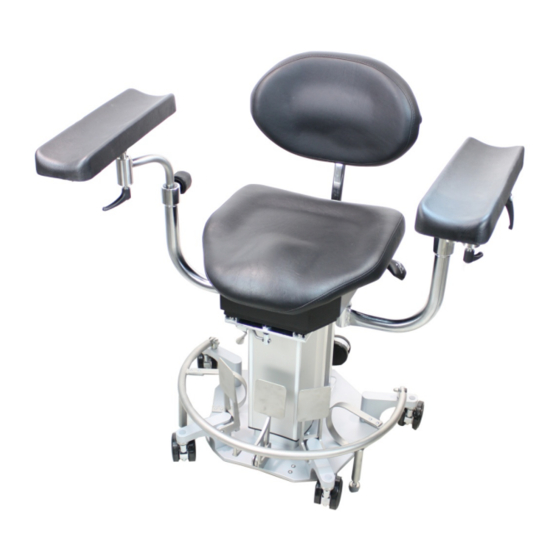

- Page 1 SURGEON CHAIR ak 480 Instructions for use 279g001d_ak480_rev10_EN_300124.docx 1 / 27 Rev10 / 2023-11-13...
-
Page 2: Table Of Contents
Description of the device ......................12 Battery ..........................12 Battery, recharge intervals ....................12 Battery charging station ....................12 Battery holder ........................13 Using the SURGEON CHAIR ak 480 ..................14 10.1 Ready for use ........................14 10.2 Motor operating time ......................14 10.3... - Page 3 Disposal ............................22 Technical data..........................23 Troubleshooting ........................24 Electromagnetic compatibility ....................25 Manufacturer ..........................26 Reporting incidents ........................26 CE marking ..........................26 Wiring diagram .......................... 27 279g001d_ak480_rev10_EN_300124.docx 3 / 27 Rev10 / 2023-11-13...
-
Page 4: General Information
General information IMPORTANT A thorough understanding of this IFU is essential for use of the SURGEON CHAIR ak 480. Please familiarise yourself with its contents, paying special attention to instructions on how to use the device safely. Please retain this IFU for future reference. -
Page 5: Symbols Used
Indicates an imminent hazardous situation. Unless avoided, it will result in death or serious injury. Indicates a required action. 1.4.2 Symbols used Nameplate for SURGEON CHAIR ak 480 Symbol Meaning Manufacturer Date of manufacture (YYYY-MM-DD) Catalogue number Serial number Label identifying the chair as a medical device Device identification (data matrix and plain text) 279g001d_ak480_rev10_EN_300124.docx... - Page 6 Symbol Meaning Indicates the maximum permitted weight the product can support. General warning sign Indicates that the product can only be used indoors Applied part type B, in accordance with IEC 60601-1 Indicates that the product can only be operated by direct current from the battery supplied S3 –...
- Page 7 Symbol Meaning Indicates permissible minimum and maximum relative humidity levels during transport and storage Indicates permissible minimum and maximum atmospheric pressure during transport and storage Fragile: handle with care This way up Do not stack Do not open with a sharp blade Electric shock 279g001d_ak480_rev10_EN_300124.docx 7 / 27...
-
Page 8: Requirements For Safe Operation
Requirements for safe operation Please familiarise yourself with the contents of this IFU before putting into service the device for the first time. HAZARD Please check that the product is working correctly before every use. WARNING The medical device may only be installed, operated and maintained by personnel who have received detailed training and have the necessary knowledge and experience. -
Page 9: Product Lifetime And Warranty
This product may only be operated in compliance with the specifications for its intended use. If the medical device shows signs of wear, contact the distributor to have it serviced. Contents at delivery The SURGEON CHAIR ak 480 is delivered with the following items: Item Number... -
Page 10: Intended Purpose
Intended purpose The SURGEON CHAIR ak 480 is a chair that provides support for medical work carried out while seated. This excludes surgical interventions in the field of cardiology. Intended use • Use in operating theatres • The product is suitable for use in immediate proximity to patients •... -
Page 11: Electrical Connections
WARNING Electric shock The user/third person must not touch patients while in contact with the connections for the SURGEON CHAIR ak 480. The medical device is only free from electric current when the battery is disconnected. CAUTION The exact position of the battery or the battery charging unit is described in the relevant sections of this IFU (see Sections 0 and 0). -
Page 12: Description Of The Device
Description of the device Battery The electric motor in the SURGEON CHAIR ak 480 is powered by a rechargeable battery. The battery has a capacity of approx. 40 operations per charging cycle when used with a typical load profile. CAUTION Keeping a spare, charged battery is recommended. -
Page 13: Battery Holder
(4) the battery is not fully charged after even a long charging time (> 4h). If any of the above occur, please replace the old battery with a new battery. Please contact your local Akrus authorised distributor. Battery holder The battery holder is easy to access on the back of the motor column. There is a recessed handle on the top of the battery. -
Page 14: Using The Surgeon Chair Ak 480
10 Using the SURGEON CHAIR ak 480 10.1 Ready for use The SURGEON CHAIR ak 480 is always ready for use with a charged battery. It does not have a main switch. See Section 10.3 Up/down foot-controlled switch. for how to use the foot-controlled switch. -
Page 15: Castors And Wheel Brake
SURGEON CHAIR ak 480 by its backrest. This reduces the risk of tipping. The SURGEON CHAIR ak 480 has one central brake. To apply the brake, gently depress the foot ring until the lock clicks into place. To release the brake, press heel gently against the centre foot plate. -
Page 16: Adjusting The Seat Tilt Angle
10.5.2 Adjusting the seat tilt angle The seat tilt can be adjusted by approx. 10°. The tilt lever is located under the seat. Release lever Seat horizontal and tilted by 10° 10.6 Backrest The backrest can be adjusted in three ways: Adjusting the tilt angle (Section 10.6.1) Adjusting the height (Section 10.6.2) Adjusting the lumbar support angle (Section 10.6.3) -
Page 17: Adjusting The Height
10.6.2 Adjusting the height Use the lever at the base of the backrest to adjust backrest height. • In horizontal position: backrest can be moved up and down • In vertical position: backrest is locked Release lever to adjust backrest height 10.6.3 Adjusting the lumbar support (optional function) To adjust the angle of the lumbar support, use the adjustment screws on the back of the backrest. -
Page 18: Armrests
10.7 Armrests The SURGEON CHAIR ak 480 can be fitted with different arm rests. They can be adjusted very precisely to meet the surgeon's ergonomic needs. The armrest support brackets can be swivelled and rotated. CAUTION Always lock the different armrests sufficiently tightly after making any adjustments to prevent them from moving accidentally. -
Page 19: Adjusting Longitudinal Armrest Position
10.7.3 Adjusting longitudinal armrest position The levers on the side of the armrests release the armrests so they can slide forwards or backwards by approx. 20 cm. Use the levers to lock the armrests in position. Release lever Sliding the armrest backwards and forwards 10.7.4 Tilting the armrest Use the lever under the ball head to tilt the arm rest up or down. -
Page 20: Equipment Care And Protection Against Contamination
It is not intended for storing instruments or other medical devices. 11.2 Processing restrictions The SURGEON CHAIR ak 480 must be cleaned at regular intervals in line with the surface disinfection hygiene plan. The chair must be prepared before each new use. -
Page 21: Processing Instructions
The battery must be removed before the chair is cleaned. The chair must be completely dry before the battery is reinserted. Preparations Remove the battery from the SURGEON CHAIR ak 480 before cleaning For manual cleaning, use ready-to-use “Cleanisept Wipes Maxi” by manufacturer Dr. -
Page 22: Maintenance And Repairs
Servicing and repairs to this product may only be carried out by personnel authorised by the manufacturer. No maintenance by the user is needed on the SURGEON CHAIR ak 480. The following spare parts can be replaced by the user or maintenance personnel if they show signs of wear: Description Order no. -
Page 23: Technical Data
10 to 95 700 – 1060 Air pressure Environmental conditions during Environmental temperature +10 - +40 °C Relative max. humidity 700 – 1060 Air pressure Weight depends on SURGEON CHAIR ak 480 configuration 279g001d_ak480_rev10_EN_300124.docx 23 / 27 Rev10 / 2023-11-13... -
Page 24: Troubleshooting
16 Troubleshooting Fault Possible cause Corrective action Does not work at all Battery empty Charge battery Battery seated incorrectly Check battery seated correctly (see Section 0) Phone the distributor’s service technician Does not work at all, charge Battery faulty battery Phone the distributor’s service technician Some functions fail e.g. -
Page 25: Electromagnetic Compatibility
17 Electromagnetic compatibility Like all electrical medical devices, the SURGEON CHAIR ak 480 is subject to particular precautionary measures regarding EMC (electromagnetic compatibility). The SURGEON CHAIR ak 480 is intended for use in an electromagnetic environment, as specified below. WARNING Avoid using this equipment in close proximity to other equipment or stacking it with other equipment as this could result in faulty operation. -
Page 26: Manufacturer
Akrus (info@akrus.com) or their local distributor. If a SURGEON CHAIR ak 480 has failed, and may have resulted in or contributed to serious injury to a surgeon, Akrus or the local distributor and the appropriate local authority should be notified immediately. -
Page 27: Wiring Diagram
21 Wiring diagram 279g001d_ak480_rev10_EN_300124.docx 27 / 27 Rev10 / 2023-11-13...
