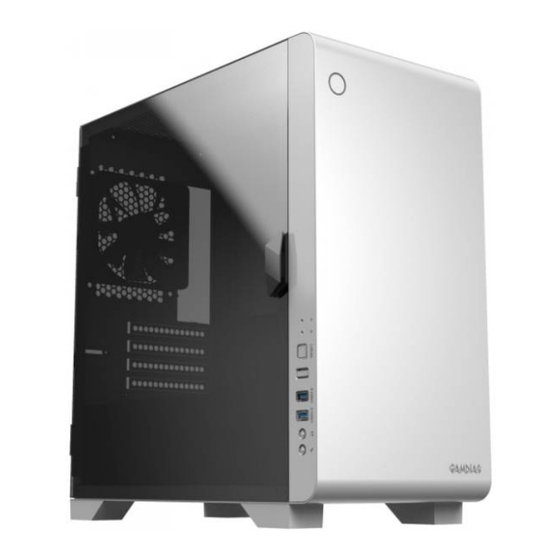

GAMDIAS kućište Mars E2
Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike,
potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji.
Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike
i konkurentne cene proizvoda.
Posetite nas i uživajte u ekskluzivnom iskustvu pametne kupovine klikom na link:
https://tehnoteka.rs/p/gamdias-kuciste-mars-e2-akcija-cena/
Advertisement
Table of Contents
Related Manuals for GAMDIAS Mars E2
Summary of Contents for GAMDIAS Mars E2
- Page 1 Uputstvo za upotrebu (EN) GAMDIAS kućište Mars E2 Tehnoteka je online destinacija za upoređivanje cena i karakteristika bele tehnike, potrošačke elektronike i IT uređaja kod trgovinskih lanaca i internet prodavnica u Srbiji. Naša stranica vam omogućava da istražite najnovije informacije, detaljne karakteristike i konkurentne cene proizvoda.
- Page 2 QUICK INSTALLATION GUIDE mARS M I C R O - T O W E R P C C A S E...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Specifications 2 Exploded View & Parts 3 Accessory 4 Side Panel Removal 5 Motherboard Installation 6 PSU Installation 7 3.5" & 2.5" HDD Installation 8 Air Cooling Compatibility 9 Radiator Compatibility 10 I/O Ports 11 I/O Connectors... -
Page 4: 1 Specifications
SPECIFICATIONS SERIES Aluminum/ Steel Series Product Name MARS E2 Case Type MICRO Tower Dimension (L x W x H) 397 x 210 x 425 mm 15.6 x 8.3 x 16.7 inch Chassis Dimension (L x W x H) 360 x 210 x 405 mm 14.2 x 8.3 x 15.9 inch... -
Page 5: 2 Exploded View & Parts
EXPLODED VIEW PARTS PARTS PARTS Chassis Body Steel Front Panel 120mm Fan Mesh Tempered Glass Side Panel IO Port Right Side Panel HDD Cage Top Dust Filters Rubber Foot ACCESSORY Parts Name Used for Figure Stand-off 4.75 x 6.5 x 10mm Motherboard Screw #6 x 6 mm Screw #6 x 5 mm... -
Page 6: 4 Side Panel Removal
SIDE PANEL REMOVAL English Português Remove the side panel Remova o painel lateral Español Русский Retire el panel lateral Снимите боковую панель Deutsch Türk dili Seitenblende entfernen Yan paneli çıkarın Polski 日本語 サイドパネルを取り外します Usuń panel boczny Français 한국어 Retirez le panneau latéral 사이드... -
Page 7: 5 Motherboard Installation
MOTHERBOARD INSTALLATION English Português Lay down the chassis Deite o chassi Install the motherboard in proper location Instale a placa-mãe no local correto e and secure it with screws prenda-a com parafusos Español Русский Tumbe el chasis Снимите подставку Instale la placa base en la posición adecuada Установите... -
Page 8: 6 Psu Installation
PSU INSTALLATION English Português Place the PSU in proper location Coloque a PSU no local adequado Español Русский Coloque la PSU en la posición adecuada Поместите блок питания в нужное место Deutsch Türk dili Netzteil an der richtigen Stelle platzieren PSU’yu uygun konuma yerleştirin Polski 日本語... - Page 9 3.5" 2.5" HDD INSTALLATION 3.5" HDD 2.5" SSD English Português A. 3.5" HDD A. HDD 3.5" Align the HDD into the mounting holes and screw in. Alinhe o HDD nos orifícios de montagem e aperte-o. B. 2.5" SSD B. HDD 2.5" Align the SSD into the mounting holes and screw in.
-
