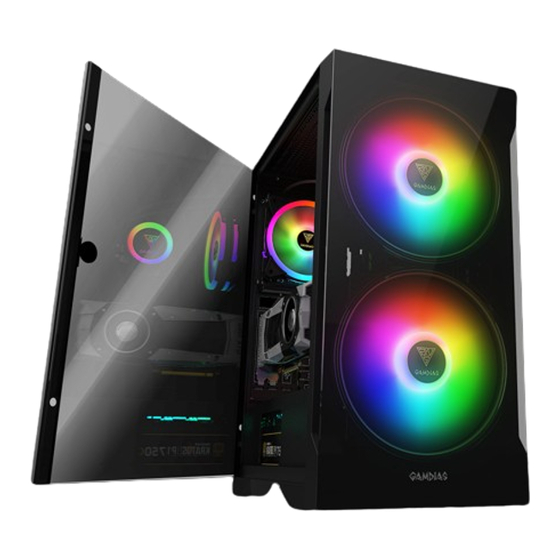

- Page 1 QUICK INSTALLATION GUIDE APOLLO M I D - T O W E R C A S E...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1 Specifications 2 Exploded View & Parts 3 Accessory 4 Side Panel Removal 5 Motherboard Installation 6 PSU Installation 7 3.5" & 2.5" HDD Installation 8 Air Cooling Compatibility 9 Radiator Compatibility 10 I/O Ports 11 I/O Connectors... -
Page 3: 1 Specifications
SPECIFICATIONS SERIES 20cm Fans Series Product Name APOLLO E2 Elite Case Type MID Tower Dimension (L x W x H) 392 x 230 x 467 mm 15.4 x 9 x 18.3 inch Chassis Dimension (L x W x H) 350 x 230 x 445 mm 13.7 x 9 x 17.5 inch... -
Page 4: 2 Exploded View & Parts
EXPLODED VIEW PARTS PARTS PARTS Chassis Body IO Port Tempered Glass Side Panel 20CM ARGB FAN Right Side Panel HDD Cage Top Dust Filters Rubber Foot Tempered Glass Front Panel 120 MM Fan ACCESSORY Parts Name Used for Figure Stand-off 4.75 x 9.5 x 6.5mm Motherboard Screw #6 x 6 mm Screw #6 x 5 mm... -
Page 5: 4 Side Panel Removal
SIDE PANEL REMOVAL English Português Remove the side panel Remova o painel lateral Русский Español Снимите боковую панель Retire el panel lateral Türk dili Deutsch Yan paneli çıkarın Seitenblende entfernen 日本語 Polski サイドパネルを取り外します Usuń panel boczny 한국어 Français Retirez le panneau latéral 사이드... -
Page 6: 5 Motherboard Installation
MOTHERBOARD INSTALLATION English Português Lay down the chassis Deite o chassi Install the motherboard in proper location Instale a placa-mãe no local correto e and secure it with screws prenda-a com parafusos Русский Español Tumbe el chasis Снимите подставку Instale la placa base en la posición adecuada Установите... -
Page 7: 6 Psu Installation
PSU INSTALLATION English Português Place the PSU in proper location Coloque a PSU no local adequado Русский Español Coloque la PSU en la posición adecuada Поместите блок питания в нужное место Deutsch Türk dili Netzteil an der richtigen Stelle platzieren PSU’yu uygun konuma yerleştirin Polski 日本語... - Page 8 3.5" 2.5" HDD INSTALLATION 3.5" HDD 2.5" SSD English Português A. 3.5" HDD A. HDD 3.5" Align the HDD into the mounting holes and screw in. Alinhe o HDD nos orifícios de montagem e aperte-o. B. 2.5" SSD B. HDD 2.5" Align the SSD into the mounting holes and screw in.
- Page 9 AIR COOLING COMPATIBILITY 日本語 English Svensk 上部 120 mm x 2 または140 mm x2 2 x 120mm or 2 x 140mm Ovansida 2 x 120mm eller 2 x 140mm 前部 120 mm x 3 または140 mm x2 Front 3 x 120mm or 2 x 140mm or Framsida 3 x 120mm eller 2 x 140mm eller または 200 mm x2 2 x 200mm 2 x 200mm...
-
Page 10: Radiator Compatibility
RADIATOR COMPATIBILITY English 日本語 Svensk 上部 280 mm または 240 mm 280 mm or 240 mm Ovansida 280 mm eller 240 mm Front 前部 360 mm または 280 mm 360 mm or 280 mm Framsida 360 mm eller 280 mm 140 mm or 120 mm Rear Baksida 140 mm eller 120 mm 後部 ... -
Page 11: O Ports
I/O PORTS Power Button Fan LED Control USB 2.0 USB 2.0 USB 3.0 Headphone Sync With Motherboard : Press and Hold the Fan LED Control Button for 3 Seconds. -
Page 12: O Connectors
