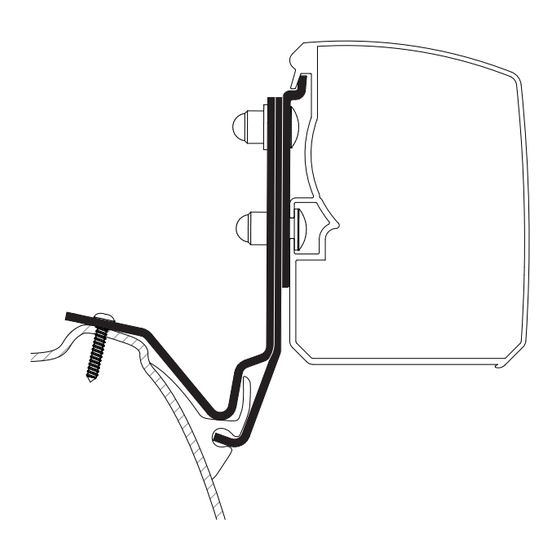

- Page 1 INSTRUCTIONS √ Instructions Thule Adapter Wall - Kepler One Five Six T3200 301979 Bring your life AD9007-00 | 3380073400 thule.com 2022-09-09...
- Page 3 Adapter - Bedienungsanleitung ADAPTER - USER INSTRUCTIONS Adapter - Gebruikershandleiding Adaptateur - Instructions d'utilisation Adattatore - Istruzioni per l'uso Safety Adaptador - Instrucciones de uso Adapter - Användarmanual Adapteri - Käyttöohje Adapter - Brugervejledning Adapter - Brukerinstruksjoner Adapter - Instrukcja dla użytkownika INSTALLATION WARNINGS &...
- Page 4 USER INSTALLATION 1 WARNINGS & INFO Instructions Safety Instructions Safety > 2 m AD9007-00...
- Page 5 USER 2 CONTENT M6 x 20 mm M6 x 25 mm Nut cap DIN 603 DIN 985 DIN 9021 DIN 603 4,2 x 25 mm DIN 7504N - TX20 3 TOOLS sika TX20 N° 10 Ø 3 mm AD9007-00...
- Page 6 INSTALLATION 4 FITGUIDE KEPLER AWNING LENGTH LENGTH X LENGTH Y LENGTH Z 2300 - 2365 mm 110 mm ± 20 mm 400 mm ± 20 mm Five 2,70 m 2100 - 2250 mm 180 mm ± 20 mm 110 mm ± 20 mm 2300 - 2365 mm 110 mm ±...
- Page 7 INSTALLATION Front Back AD9007-00...
- Page 8 INSTALLATION Front Back Ø 3 mm AD9007-00...
- Page 9 INSTALLATION sika sika Front Back AD9007-00...
- Page 10 INSTALLATION Front Back TX20 Front Back AD9007-00...
- Page 11 INSTALLATION Back M6x20 Front N° 10 6 Nm Front Back AD9007-00...
- Page 12 INSTALLATION AD9007-00...
- Page 13 INSTALLATION M6x25 N° 10 6 Nm AD9007-00...
- Page 16 Thule NV, Kortrijkstraat 343 – BE 8930 Menen, BELGIUM infoRV@thule.com www.thule.com Ad9007-00 © Thule Group 2020. All rights reserved.
