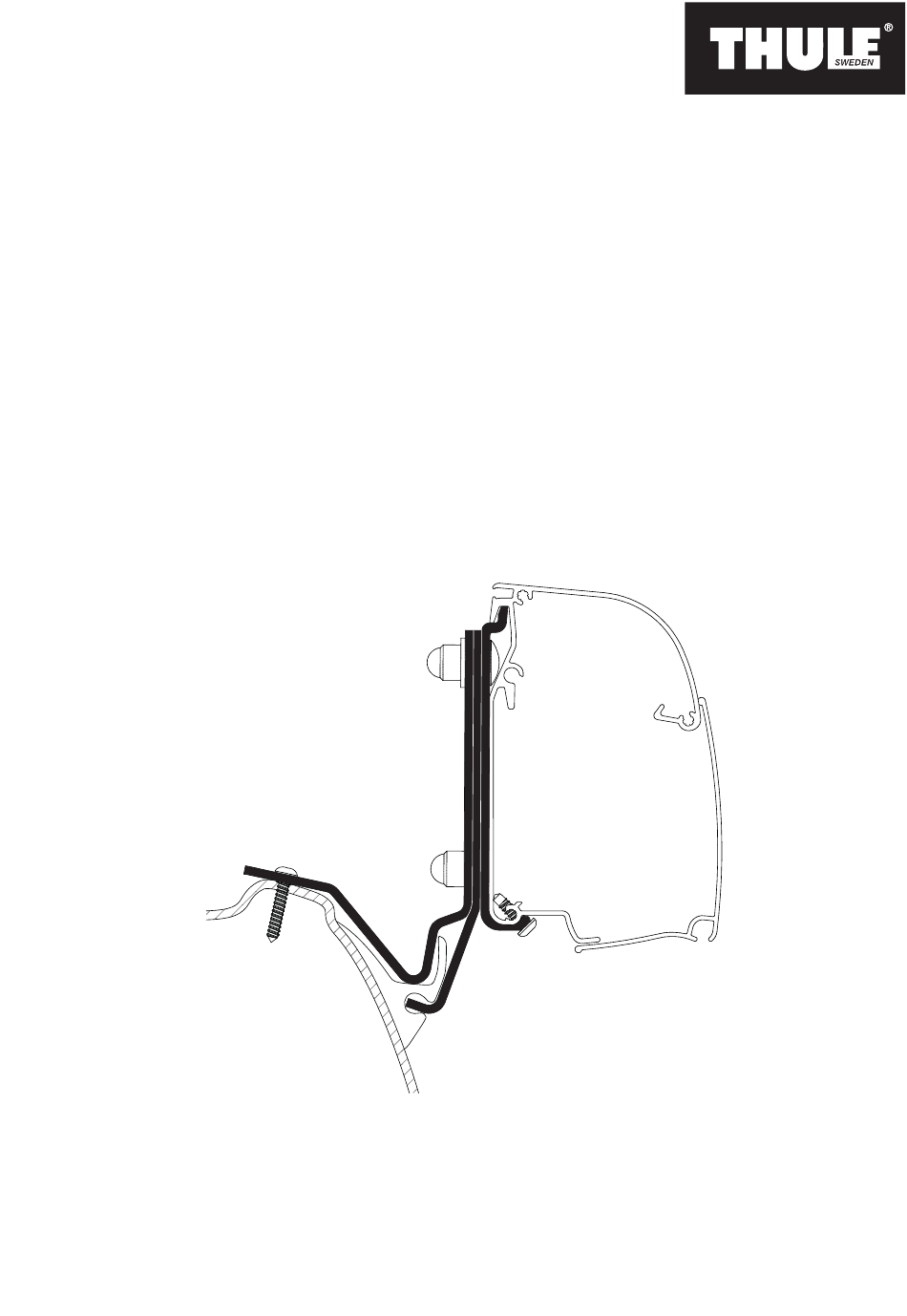

- Page 1 INSTRUCTIONS √ Instructions Thule Adapter Wall - Kepler One Five Six T4200 301980 Bring your life AD9008-00 | 3380073500 thule.com 2022-02-16...
- Page 3 Adapter - Bedienungsanleitung ADAPTER - USER INSTRUCTIONS Adapter - Gebruikershandleiding Adaptateur - Instructions d'utilisation Adattatore - Istruzioni per l'uso Safety Adaptador - Instrucciones de uso Adapter - Användarmanual Adapteri - Käyttöohje Adapter - Brugervejledning Adapter - Brukerinstruksjoner Adapter - Instrukcja dla użytkownika INSTALLATION WARNINGS &...
- Page 4 USER INSTALLATION 1 WARNINGS & INFO Instructions Safety Instructions Safety AD9008-00...
- Page 5 USER 2 CONTENT 4,2 x 16 mm DIN 7504M - TX20 M6 x 20 mm DIN 965 - TX30 DIN 985 DIN 9021 Nut cap M6 x 20 mm 4,2 x 25 mm DIN 603 DIN 7504N - TX20 3 TOOLS sika TX20 N°...
- Page 6 INSTALLATION 4 FITGUIDE KEPLER AWNING LENGTH LENGTH X LENGTH Y LENGTH Z 2300 - 2365 mm 110 mm ± 20 mm 400 mm ± 20 mm Five 2,70 m 2100 - 2250 mm 180 mm ± 20 mm 110 mm ± 20 mm 2300 - 2365 mm 110 mm ±...
- Page 7 INSTALLATION Front Back AD9008-00...
- Page 8 INSTALLATION Front Back Ø 3 mm AD9008-00...
- Page 9 INSTALLATION sika sika Front Back AD9008-00...
- Page 10 INSTALLATION Front Back 4,2x25 TX20 Front Back AD9008-00...
- Page 11 INSTALLATION Back Front TX30 N° 10 Awning T4200 2,60 m Front 6 Nm Back AD9008-00...
- Page 12 INSTALLATION Awning T4200 3 m Front 6 Nm Back AD9008-00...
- Page 13 INSTALLATION TX20 T4200 - 2,70 m T4200 - 3 m AD9008-00...
- Page 16 Thule NV, Kortrijkstraat 343 – BE 8930 Menen, BELGIUM infoRV@thule.com www.thule.com Ad9008-00 © Thule Group 2020. All rights reserved.
