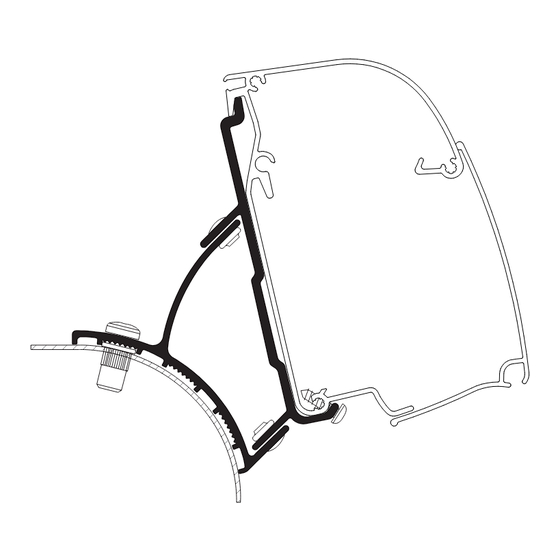

- Page 1 INSTALLATION √ Instructions Adapter VW T5/T6 Thule 4200 301984, 301985 Bring your life AD9001-01 | 3380072800 thule.com 2022-02-02...
- Page 3 Adapter - Bedienungsanleitung ADAPTER - USER INSTRUCTIONS Adapter - Gebruikershandleiding Adaptateur - Instructions d'utilisation Adattatore - Istruzioni per l'uso Safety Adaptador - Instrucciones de uso Adapter - Användarmanual Adapteri - Käyttöohje Adapter - Brugervejledning Adapter - Brukerinstruksjoner Adapter - Instrukcja dla użytkownika WARNINGS &...
- Page 4 1 WARNINGS & INFO Instructions Safety AD9001-01...
- Page 5 2 CONTENT 4,2 x 25 DIN 7982 - TX20 TO 4200 - 2m60 - 3m00 M6 x 16 mm DIN 7985 - TX30 4,2 x 16 mm DIN 7504 - TX20 Ø10 x 30 Blind Rivet 3 TOOLS ID 1...
- Page 6 4 FITGUIDE M6 x 16 mm DIN 7985 - TX30 4,2 x 16 mm DIN 7504 - TX20 ART.NR AWNING EU/UK FRONT BACK 301984 2m60 Ø10 x 30 Blind Rivet ID 1 ID 2 301984 3m00 301985 2m60 ID 3 ID 4 301985 3m00...
- Page 7 L1H1 LHD 2m60 ID 2 ID 1 3000 L2H1 LHD 3m00 ID 2 ID 1 3400 L1H1 RHD 2m60 ID 3 ID 4 3000 L2H1 RHD 3m00 L1H1 ID 3 ID 4 3400 AD9001-01...
- Page 8 5 INSTALLATION 2M60 189 cm 3M00 229 cm Roof Door AD9001-01...
- Page 9 Ø 3 mm Ø 9 mm Ø Ø AD9001-01...
- Page 10 Ø9mm sika sika AD9001-01...
- Page 11 TX30 AD9001-01...
- Page 12 Ø 3 mm AD9001-01...
- Page 13 TX20 AD9001-01...
- Page 16 Thule NV, Kortrijkstraat 343 – BE 8930 Menen, BELGIUM infoRV@thule.com www.thule.com AD9001-01 © Thule Group 2020. All rights reserved.
