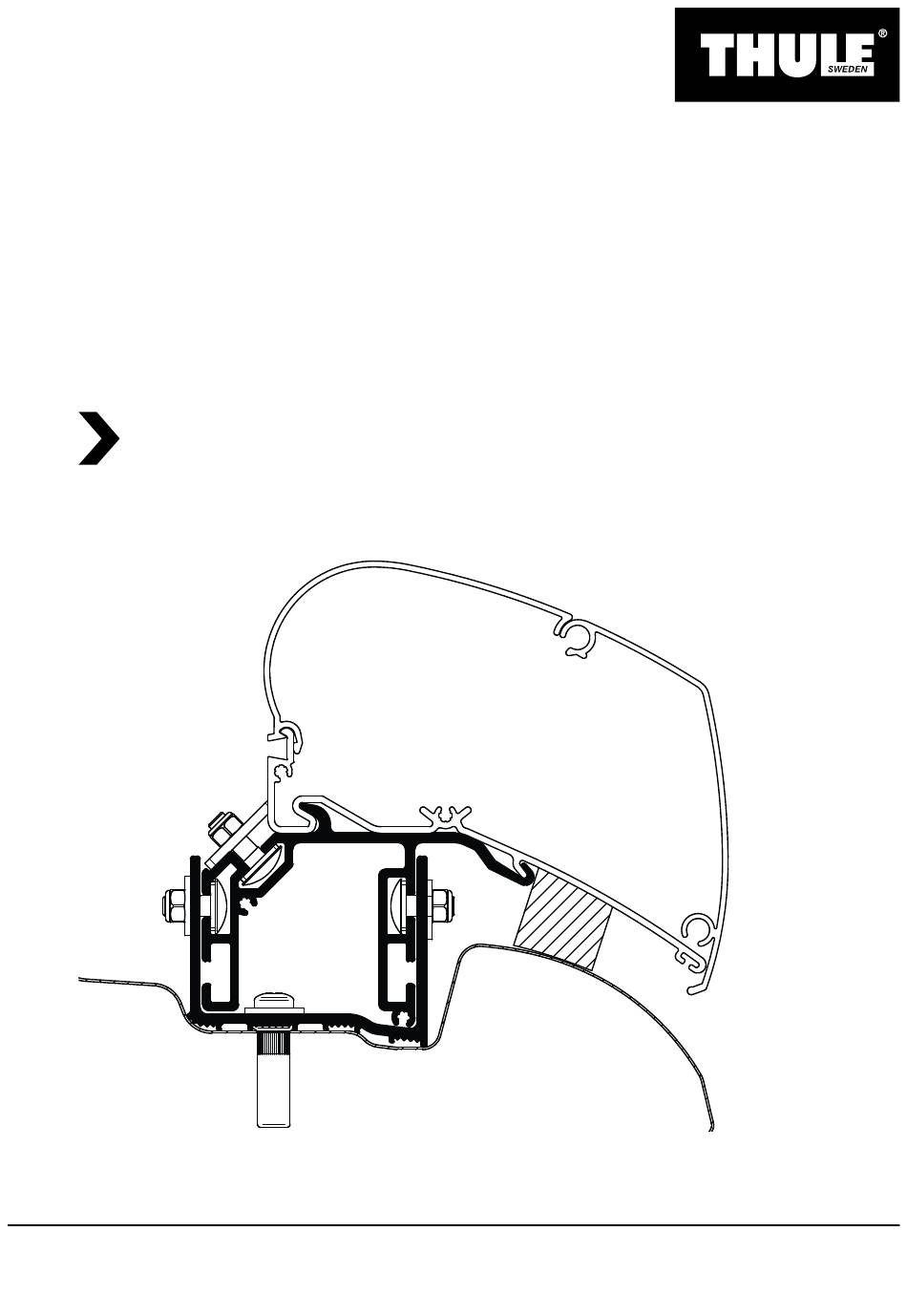

- Page 1 Adapter Roof VW Crafter 2017 Instructions Prod no.: 301768 / 301771 Bring your life thule.com Doc. no.: ADR912 -03 / 3380048800 Date: 12/11/2018...
- Page 2 Adapter Roof VW Crafter 2017 Instructions TX 20 TX 30 Prod no.: 301768 / 301771 Bring your life Doc. no.: ADR912-02 / 3380048800 thule.com Date: 25/06/2018 ± 870 mm 301768 301771 LEFT RIGHT LEFT RIGHT ± 990 mm ± 990 mm...
- Page 3 RIGHT HAND DRIVE (RHD) is MIRROR of LEFT HAND DRIVE (LHD) IN THIS MANUAL LEFT HAND DRIVE (LHD) IS SHOWN BY DEFAULT L3H3 Roof awning 3,25 m 5986 mm use 6/10 roof fixation points L4H3 Roof awning 4 m 6836 mm use 6/13 roof fixation points L5H3 Roof awning 4,50 m...
- Page 4 M6 x 16 M6 x 25 9.91 x 30 DIN 603 DIN 7985 TX30 A2 Blind rivet nut closed + PVC sealing x 12 DIN 985 DIN 9021 x 12 x 18 x 12 Remove protection of the 6 adapter fixation points RHD IS MIRROR OF LHD L4H3 Roof awning 4 m...
- Page 5 Degrease the roof Assemble the blind rivet nuts RHD IS MIRROR OF LHD ADR912-03...
- Page 6 Glue / Lijmen / Verklebung: SIKA 252 or Terostat MS937 Thule recommends / beveelt aan / empfehlt: Primern und Abdichtung nach Anweisung des Dichtmittelherstellers. 48 h Voorbehandeling en afdichting volgens de voorschriften van de lijmfabrikant. Preparation and sealing according to the prescripts of the glue supplier.
-
Page 7: Mounting The Adapter
Mounting the adapter RHD IS MIRROR OF LHD M6 x 16 DIN 603 DIN 985 DIN 9021 x 12 x 12 x 12 x 12 BACK FRONT BACK FRONT ADR912-03... - Page 8 BACK FRONT BACK FRONT N°10 N°10 N°10 4 Nm 4 Nm 4 Nm ADR912-03...
- Page 9 ± 870 mm ± 990 mm ± 990 mm Degrease the roof Cut the EPDM RHD IS MIRROR OF LHD 3170 mm L3H3 990 mm 870 mm 320 mm 990 mm 3930 mm L4H3 880 mm 870 mm 870 mm 320 mm 990 mm 4430 mm...
- Page 10 Applying the EPDM RHD IS MIRROR OF LHD L3H3 3170 mm 990 mm 870 mm 320 mm 990 mm BACK FRONT (45 mm) 85 mm START L4H3 3930 mm 880 mm 870 mm 870 mm 320 mm 990 mm BACK FRONT (155 mm) 85 mm...
- Page 11 LEFT RIGHT LEFT RIGHT 4.2 x 25 M6 x 20 DIN 7981 TX20 A2 DIN 603 DIN 985 TX 20 Place awning 65 mm Assemble 4 Nm N°10 ADR912-03...
- Page 12 Prepare sealing covers (left and right) RHD IS MIRROR OF LHD LEFT RIGHT TX 20 Assemble RHD IS MIRROR OF LHD LEFT + RIGHT N°10 4 Nm ADR912-03...
- Page 13 ADR912-03...
- Page 14 ADR912-03...
- Page 15 ADR912-03...
- Page 16 Thule NV, Kortrijkstraat 343 – BE 8930 Menen, BELGIUM www.thule.com infoRV thule.com...
