FONESTAR FO-22M44-CAT Instruction Manual

4 x 4 hdmi extension matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

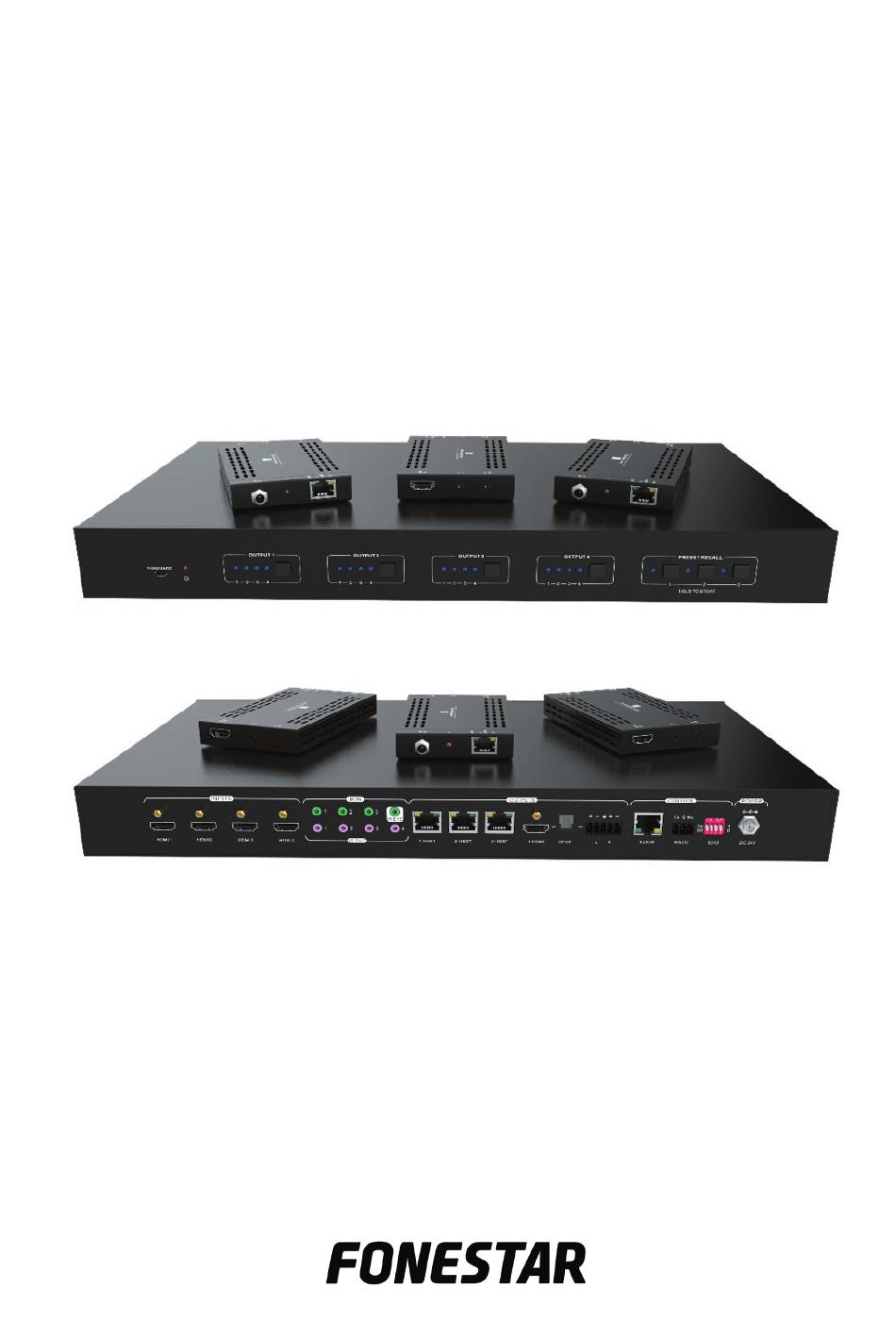

FO-22M44-CAT
4 X 4 HDMI EXTENSION MATRIX
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for FONESTAR FO-22M44-CAT

Summary of Contents for FONESTAR FO-22M44-CAT

  • Page 1 FO-22M44-CAT 4 X 4 HDMI EXTENSION MATRIX INSTRUCTION MANUAL...

  • Page 2: Controls And Functions

    CONTROLS AND FUNCTIONS MATRIX FRONT PANEL 1.- FIRMWARE: micro-USB port for fi rmware upgrade. 2.- Power LED: the LED illuminates red when power is applied. 3.- Signal Switching Zone: A. INPUT LEDs: a series of four LEDs, one of which illuminates blue to indicate which source is selected.

  • Page 3: System Connection

    RECEIVER FRONT AND REAR PANEL 1.- HDMI Out: terminals to connect the loudspeaker lines in zones 1 to 5. In order to activate/deactivate the zones use the front buttons. With the zone selection terminals only loudspeakers with100 V line transformers must be used. The total connected power in loudspeakers must not exceed the power of the amplifi er.

  • Page 4: Panel Control

    PANEL CONTROL SIGNAL SWITCHING Repeatedly press the OUTPUT button on front panel to cycle through the various inputs for the corres- ponding output. Press and hold PRESET RECALL button 1~3 to save the current switching status to the corresponding preset 1~3. Press the PRESET RECALL button 1~3 to recall the saved preset 1~3.

  • Page 5: Ir Pass-Through Control

    IR CONTROL IR REMOTE CONTROL Connect IR receiver to the IR EYE port, the matrix can be controlled by the below IR remote. 1.- Press the STANDBY (1) button to enter or exit standby mode. 2.- To switch the selected input for one or more of the outputs, fi rst press the number corresponding to the desired INPUT (2), then press one or more OUTPUTS (3) or the ALL (4) button, then press the ENTER (4) button to execute the change.

  • Page 6: Control Local Device Remotely

    CONTROL LOCAL DEVICE REMOTELY Connect IR receiver(s) to IR IN ports on far-end HDBT receiver(s), and IR emitter(s) to IR OUT ports of the matrix, and use the IR remote of local source to control the device remotely. One to One: Connect an IR receiver to IR IN port on far-end HDBaseT receiver, and an IR emitter to IR OUT 1 port of the matrix.

  • Page 7: Gui Control

    The IR signal can be sent by any three of IR remotes, then it is transferred to HDBaseT receiver, then to IR OUT 1 port and received by the local source device. Switching Operation: Sending command (reference to 8.2.2 Source Switching): Command Description IRFollowON.

  • Page 8: Audio Tab

    SWITCHING TAB Use the 4x4 button grid on the left side to set which inputs are directed to which outputs. For example, clicking the buttons on the Input 1 row and Output 1,2,3,4 column, directs input 1 to all outputs. Use the 6 numbered buttons on the right in conjunction with the Save and Recall buttons to save and load layout presets.

  • Page 9: Configuration Tab

    CONFIGURATION TAB PoC Setting - Turn on or turn off the analog audio output and digital audio output. EDID Copy - Copy the EDID of the selected output device to one or more input source device. - 9 -...
  • Page 10 EDID Setting Select the compatible built-in EDID for the selected input source. Upload user-defi ned EDID by the below steps: 1.- Prepare the EDID fi le (.bin) on the control PC. 2.- Select the User-defi ne. 3.- Click the box , and then select the EDID fi le (.bin) according the tooltip.

  • Page 11: Access Tab

    ACCESS TAB Modify the login password. Lock or unlock the front panel buttons. INTERFACE TAB Modify the title bar label. Modify the button labels. - 11 -...

  • Page 12: Network Tab

    NETWORK TAB Static IP or Dynamic Host Confi guration Protocol (DHCP).. Modify the static IP Address, Subnet Mask, and Gateway. GUI UPGRADE Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modifi ed password will be available only after rebooting) to login the confi guration interface.

  • Page 13: Rs232 Control Software

    RS232 CONTROL Connect the RS232 port to control device (e.g. PC) with RS232 cable. The matrix can be controlled by sen- ding RS232 commands. RS232 CONTROL SOFTWARE Installation: Copy the control software fi le to the control PC. Uninstallation: Delete all the control software fi les in corresponding fi le path. Basic Settings: Connect the matrix with all input devices and output devices needed, then to connect it with a PC which is installed with RS232 control software.
  • Page 14 Device Control Command Description Feedback Example PowerON. Power on system. Power ON! PowerOFF. System standby. Power OFF! /*Name. Report the system name. MUH44E-H2 /*Type. Report system model. 4x4 HDBT Matrix /^Version. Report firmware version. V1.0.0 STA. Report system status..STA_OUT.
  • Page 15 Preset Setting Command Description Feedback Example PresetSave[x]. Store the current switching status to Preset1 Save Success! preset [x]. x=1~ 6. PresetRecall[x]. Recall the preset [x]. x=1~ 6. Preset3 Recall: Output1 Switch To 03! Output2 Switch To 03! Output3 Switch To 03! Output4 Switch To 03! PresetSta[x]..
  • Page 16 EDID Management Command Description Feedback Example EDIDUpgrade[x]. Upgrade the EDID data of the input [x]. x=0~4, U. Definition Upgrade the EDID data of all HDMI input. Upgrade the EDID data of HDMI input 1~4. Upgrade the user-define EDID. Note that new EDID can not be automatically invoked.
  • Page 17 HDCP Management Command Description Feedback Example HDCP[xx]MAT. The HDCP content of output [xx] HDCP00MAT. follows the HDCP version of display device. OUT 01 HDCP MAT Display! OUT 02 HDCP MAT Display! Definition OUT 03 HDCP MAT Display! All output ports OUT 04 HDCP MAT Display! HDMI output 1 HDMI output 2...

  • Page 18: Panel Drawing

    PANEL DRAWING MUH44E-H2 HDBaseT Matrix TPUH-BYE20R HDBaseT Receiver - 18 -...

  • Page 19: Troubleshooting And Maintenance

    TROUBLESHOOTING AND MAINTENANCE Problems Potential Causes Solutions Color losing or no video The connecting cables may not be Check whether cables signal output connected correctly or it may be connected correctly and in working broken. condition. Fail or loose connection. Make sure the connection is good No output image when No signal at the input / output end.
  • Page 20 SPECIFICATION MUH44E-H2 HDBASET MATRIX Video Video Input (4) HDMI Video Input Connector (4) Type-A female HDMI Video input Video Resolution Up to 4K@60Hz 4:4:4 Video Output (3) HDBaseT, (1) HDMI Video Output Connector (3) RJ45, (1) Type-A Female HDMI, Video Output Connector HDMI: Up to 4K@60Hz 4:4:4 HDBaseT: Up to 4K@60Hz 4:4:4 HDMI Version...
  • Page 21 TPUH-BYE20R HDBASET RECEIVER Receiver Input (1) HDBT Input Connector (1) RJ45 Output (1) HDMI Output Connector (1) Female type-A HDMI Control (1) IR IN, (1) IR OUT Control Connector (2) 3.5mm mini jacks General Video Resolution Up to 4K@60Hz 4:4:4 Transmission Mode HDBaseT Transmission Distance...
  • Page 22 - 22 -...
  • Page 23 - 23 -...
  • Page 24 www.fonestar.com...
