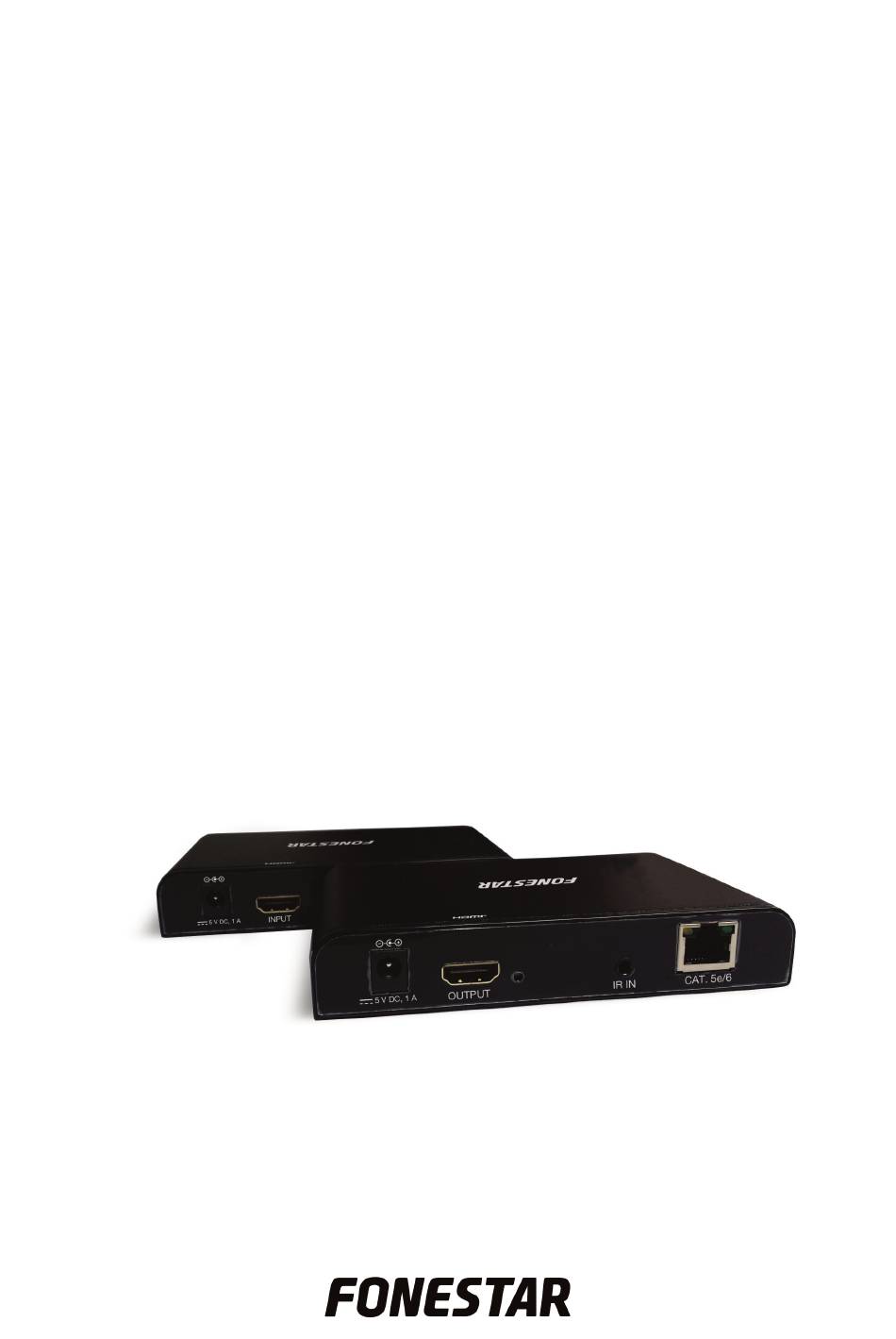

- Page 1 FO-455M, FO-456MR HDMI EXTENSION MATRIX VIA TCP/IP ETHERNET INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. - Page 4 IGMP function or direct connection with cat 5e/6 cable. FO-456MR HDMI matrix receiver through TCP/IP ethernet. For extension or replacement of mod. FO-455M. CONTROLS AND FUNCTIONS TRANSMITTER (mod. FO-455M) 1.- Power supply input for the mains adapter provided.
- Page 5 RECEIVER (mods. FO-455M and FO-456MR) 1.- Power supply input for the mains adapter provided. 2.- OUTPUT: A/V digital output, HDMI connector. 3.- Reset button. Press and hold this button for 5 seconds to restore the transmitter’s IP and MAC addresses to the factory settings.
- Page 6 1.- CHANGE THE COMPUTER’S IP ADDRESS In order to make any changes to the IP and MAC addresses of mods. FO-455M and FO-456MR, it is neccessary to assign the computer an IP address within the same range as the devices in the installation.
- Page 7 - In your computer click on Start/Control Panel/Network and shared resources centre. - Select the option Change configuration of the adapter and then select the ethernet network card. With the righthand button open the options menu and select Properties. - Select the option Internet Protocol version4 (TCP/IPv4). Click on the option Properties and then assign the IP address to the value 192.168.168.1 (for example) and the subnet mask to the value 255.255.255.0.
- Page 8 2.- CHANGE THE IP AND MAC ADDRESSES OF THE TRANSMITTERS AND RECEIVERS If several FO-455M transmitters and several FO-456MR receivers are connected through a switch, the IP and MAC addresses which are assigned by default to each device must be changed. These IP and MAC addresses must be different to each of the extra transmitters and receivers which are added to the installation.
-
Page 9: Technical Specifications
IP address assigned to this device must be entered in order to make any adjustments in your IP or MAC address. Step 3: return to the network configuration your computer had. TECHNICAL SPECIFICATIONS FO-455M CHARACTERISTICS HDMI extension matrix through TCP/IP ethernet (transmitter and receiver). - Page 10 FO-456MR CHARACTERISTICS HDMI matrix receiver through TCP/IP ethernet. For extension or replacement of FO-455M. Possibility of using up to 237 receivers through a switch with IGMP Snooping function. Remote control for channel selection. RECEIVER Input: 1 RJ-45 HDMI ethernet extension via cable Cat 5e/6...
-
Page 11: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los... - Page 12 www.fonestar.com...
