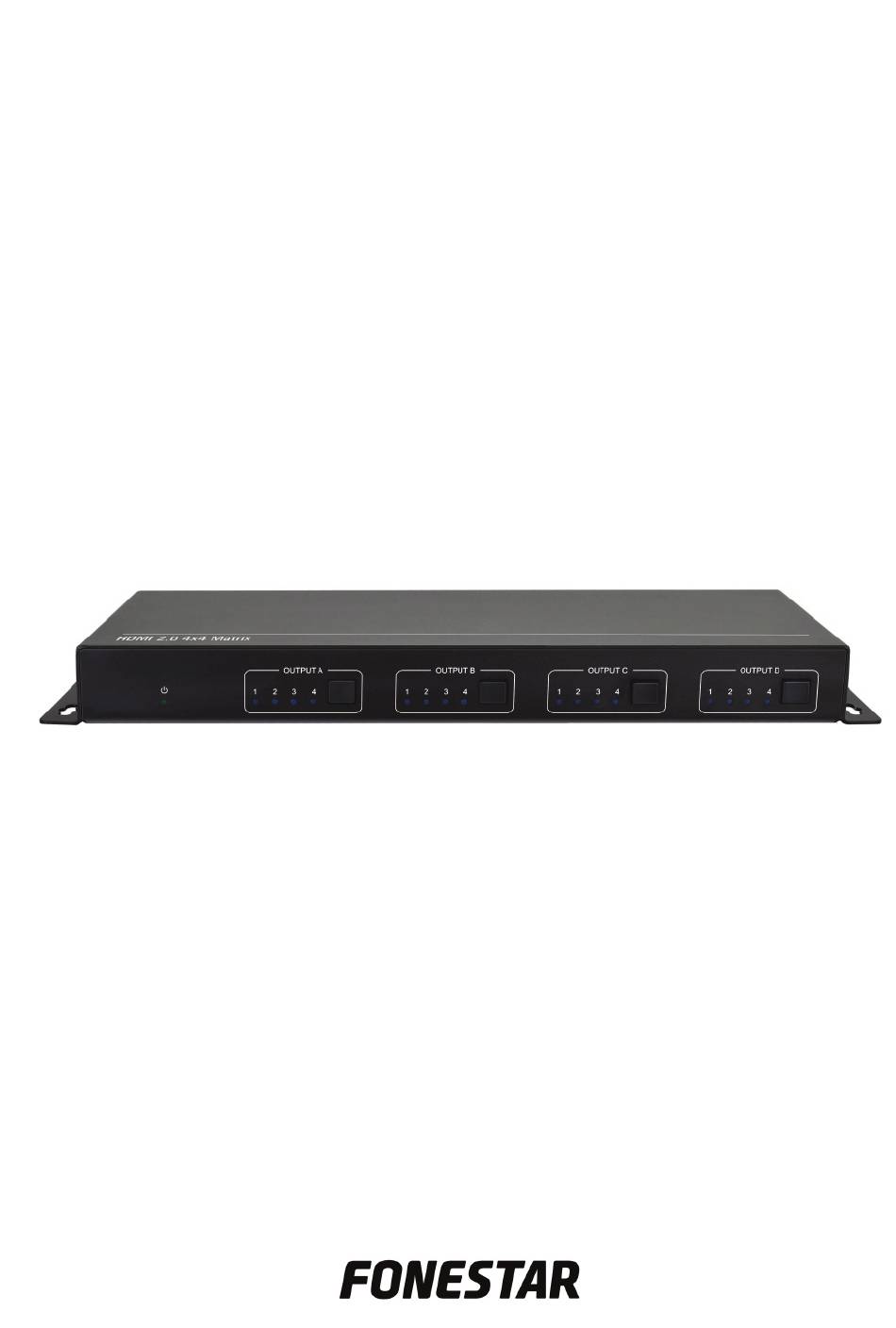

DESCRIPTION - 4 x 4 HDMI matrix - 4K@60Hz UHD resolution, (4:4:4) and 18 Gbps bandwidth. - HDR compatible - EDID function, selects manually optimal resolution for all TVs. - Communication protocol through RS-232 port. CONTROLS AND FUNCTIONS FRONT PANEL 1.- q: illuminates green when switcher is powered on.
REMOTE CONTROL 1.- q: button to enter or exit Standby mode. 2.- INPUTS: input channels 1-4. 3.- OUTPUTS: output channels 1-4. 4.- ENTER: confirm the operation. This button must be pressed when performing an operation with the remote control for the changes to be set.
SIGNAL SWITCHING Command Example and Command Description Response 4All. [x]All. Switch input [x] AV to all outputs. [x]=1~4. 04 To All. Switch all input signal to the corresponding All#. All Through. output channel. All$. Switch off all outputs. All Closed. [x]#.
PRESETS Command Example and Command Description Response Save3. Store the current switching status to present [y]. Save[y]. [y]=0~9. Save To F3 Recall9. Recall[y]. Recall present [y]. [y]=0~9. call From F9. Clear9. Clear[y]. Clear the present [y]. [y]=0~9. Clear F9 AUDIO SETTING Command Example and Command Description...
Page 7
EDIT Command Example and Command Description Response EDIDG4. Output 04 EDID Data: EDIDG[x]. Report the EDID data from output [x]. [x]=1~4. 00 FF FF FF FF FF FF 00 … EDIDMInit. Reset factory default EDID to all input ports. EDIDMInit. EDIDM1B4.
Page 8
HDCP Command Example and Command Description Response HDCP management of output [x]. [x]=1~4: HDMI /%O/ALL:1. output 1~4. [z]=0~1 is for HDCP mode. [z]=0: HDCP Bypass. The outputs automatically /%O/[x]:[z]. follow the HDCP content of HDMI input. [z]=1: HDCP 1.4. Whatever HDCP content in /%O/ALL:1 HDMI input, the HDCP content of output is HDCP 1.4.
TECHNICAL SPECIFICATIONS FO-22M44 CHARACTERISTICS 4 x 4 HDMI matrix Resolution UHD 4K @ 60Hz and lower Bandwidth 18 Gbps HDR compatible EDID function, automatically or manually select the optimal resolution for all DOWN-SCALING function to transform resolutions from 4K to Full HD 1080p...
DESCRIPCIÓN - Matriz HDMI 4 x 4 - Resolución 4K@60Hz UHD, (4:4:4) y ancho de banda 18 Gbps. - Compatible con HDR - Función EDID, selecciona manualmente la resolución más óptima para todos los TVs. - Protocolo de comunicación a través de puerto RS-232 CONTROLES Y FUNCIONES PANEL FRONTAL 1.- q: se ilumina en color verde cuando está...
MANDO A DISTANCIA 1.- Botón que permite encender/situar en StandBy la matriz. 2.- INPUTS: canales de entrada 1-4. 3.- OUTPUTS: canales de salida 1-4. 4.- ENTER: confirma la operación. Hay que pulsar este botón cuando se realice una operación con el mando a distancia para que se establezcan los cambios.
Page 12
- Baud rate: 9600 - Bits de datos:: 8 - Paridad: ninguna - Bits de parada: 1 COMANDO Descripción Ejemplo de respuesta al comando Modelo del sistema FO-22M44 /*Type; Bloqueo de botones frontales System Locked! /%Lock Desbloqueo de botones frontales. System UnLock! /%Unlock;...
Page 13
CONMUTACIÓN DE SEÑALES Ejemplo de respuesta al Comando Descripción comando 4All. [x]All. Enviar entrada AV [x] a todas las salidas. [x]=1~4. 04 To All. Enviar todas las entradas a las salidas All#. All Through. correspondiente. All$. Apagar todas las salidas. All Closed.
PRESETS Ejemplo de respuesta al Comandos Descripción comando Save3. Guardar los direccionamientos de entradas y Save[y]. salidas en el PRESET [y]. [y]=0~9. Save To F3 Recall9. Recall[y]. Cargar PRESET [y]. [y]=0~9. call From F9. Clear9. Clear[y]. Borrar PRESET [y]. [y]=0~9. Clear F9 AJUSTES DE AUDIO Ejemplo de respuesta al...
Page 15
EDIT Ejemplo de respuesta al Comando Descripción comando EDIDG4. Output 04 EDID Data: EDIDG[x]. Informe de datos EDID de la salida [x]. [x]=1~4. 00 FF FF FF FF FF FF 00 … EDIDMInit. Reset factory default EDID to all input ports. EDIDMInit.
Page 16
HDCP Ejemplo de respuesta al Comando Descripción comando Gestión HDCP de la salida [x]. [x]=1~4: HDMI salida 1~4. [z]=0~1modo HDCP. /%O/ALL:1. [z]=0: HDCP Bypass. Las salidas siguen automáticamente el contenido HDCP de la /%O/[x]:[z]. entrada HDMI [z]=1: HDCP 1.4. Whatever HDCP content in /%O/ALL:1 HDMI input, the HDCP content of output is HDCP 1.4.
ESPECIFICACIONES TÉCNICAS FO-22M44 CARACTERÍSTICAS Matriz HDMI 4 x 4 Resolución UHD 4K@60Hz y menores Ancho de banda 18 Gbps Compatible con HDR Función EDID, selecciona automática o manualmente la resolución óptima para todas las TV Función DOWN-SCALING para transformar resoluciones de 4K a Full HD 1080p Memoriza la última escena...
DESCRIPTION - Matrice HDMI 4 x 4 - Résolution 4K@60Hz UHD, (4:4:4) et bande passante18 Gbps. - Compatible avec HDR - Fonction EDID, sélectionne manuellement la résolution la plus optimale pour toutes les TVs. - Fonction DOWN-SCALING pour transformer les résolutions de 4K à Full HD 1080p - Protocole de communication avec port RS-232.
COMMANDE À DISTANCE 1.- Bouton pour activer/démarrer StandBy de la matrice. 2.- INPUT : canaux d'entrée 1-4 3.- OUTPUTS : canaux de sortie 1-4. 4.- ENTER : confirme l'opération. Ce bouton doit être enfoncé lors d'une opération avec la télécommande pour que les changements soient définis.
Page 20
- Vitesse de transmission: 9600 - Bits de données : 8 - Parité : aucune - Bits d'arrêt : 1 COMMANDE Description Exemple de réponse Modèle du sustème FO-22M44 /*Type; Bouton de verrouillage frontal System Locked! /%Lock Déclenchement du bouton frontal System UnLock! /%Unlock;...
Page 21
COMMUTATION DES SIGNAUX Commande Description Exemple de reponse 4All. Envoyez l'entrée AV [x] à toutes les sorties. [x]All. [x]=1~4. 04 To All. Envoyez toutes entrées sorties All#. All Through. correspondantes. All$. Éteindre toutes les sorties. All Closed. [x]#. Envoyez l'entrée [x] vers la sortie [x]. [x]=1~4. 02 Through.
PRESETS Commande Description Exemple de réponse Save3. Enregistrez les adresses d'entrée et de sortie Save[y]. dans PRESET [y]. [y]=0~9. Save To F3 Recall9. Recall[y]. télécharger PRESET [y]. [y]=0~9. call From F9. Clear9. Clear[y]. effacer PRESET [y]. [y]=0~9. Clear F9 RÉGLAGES AUDIO Commande Description Exemple de réponsee...
Page 23
EDIT Commande Description Exemple de reponse EDIDG4. Output 04 EDID Data: EDIDG[x]. rapport de données EDID de la sortie [x]. [x]=1~4. 00 FF FF FF FF FF FF 00 … EDIDMInit. Reset factory default EDID to all input ports. EDIDMInit. Envoyez les données EDID de l'entrée [y] à...
Page 24
HDCP Command Example and Command Description Response Gestion HDCP de la sortie [x]. [x] = 1 ~ 4: sortie /%O/ALL:1. HDMI 1 ~ 4. [z] = 0 ~ 1 est pour le mode HDCP. [z] = 0: contournement HDCP. Les sorties suivent /%O/[x]:[z].
SPECIFICATIONS TECHNIQUES FO-22M44 CARACTÉRISTIQUES Matrice HDMI 4 x 4 Résolution UHD 4k@60Hz HDMI 2.0 HDCP 2.2 Bande passante 18 Gbps Compatible avec HDR Fonction EDID, sélectionne manuellement la résolution optimale de toutes les TV Fonction DOWN-SCALING pour transformer les résolutions de 4K à Full HD 1080p Prolongation de la commande à...
DESCRIÇÃO - Matriz HDMI 4 x 4 - Resolução 4K@60Hz UHD, (4:4:4) e largura de banda 18 Gbps - Compatível com HDR - Função EDID, seleciona manualmente a resolução ideal para todas las TVs - Protocolo de comunicação por porta RS-232 CONTROLOS E FUNÇÕES PAINEL FRONTAL 1.- q: ilumina-se a verde quando está...
COMANDO À DISTÂNCIA 1.- Botão que permite ligar/colocar em StandBy a matriz. 2.- INPUTS: canais de entrada 1-4. 3.- OUTPUTS: canais de saída 1-4. 4.- ENTER: confirma a operação. Deve pressionar este botão sempre que efetuar uma operação com o comando à distância para confirmar as alterações.
Page 28
- Baud rate: 9600 - Bits de dados: 8 - Paridade: nenhuma - Bits de paragem: 1 COMANDO Descrição Exemplo de resposta ao comando Modelo do sistema FO-22M44 /*Type; Bloquear botões frontais System Locked! /%Lock Desbloquear botões frontais System UnLock! /%Unlock;...
Page 29
COMUTAÇÃO DE SINAIS Exemplo de resposta ao Comando Descriçãon comando 4All. [x]All. Enviar entrada AV [x] a todas as saídas. [x]=1~4. 04 To All. Enviar todas entradas às saídas All#. All Through. correspondentes All$. Apagar todas as saídas All Closed. [x]#.
PRESETS Exemplo de resposta ao Comando Descrição comando Save3. Guardar os reencaminhamentos de entradas e Save[y]. saídas no PRESET [y]. [y]=0~9. Save To F3 Recall9. Recall[y]. Carregar PRESET [y]. [y]=0~9. call From F9. Clear9. Clear[y]. Apagar PRESET [y]. [y]=0~9. Clear F9 AJUSTES DE ÁUDIO Exemplo de resposta ao Comando...
Page 31
EDIT Exemplo de resposta ao Comando Descrição comando EDIDG4. Output 04 EDID Data: EDIDG[x]. Relatório de dados EDID da saída [x]. [x]=1~4. 00 FF FF FF FF FF FF 00 … Reset a todas as entradas para valores EDID de EDIDMInit.
Page 32
HDCP Exemplo de resposta ao Comando Descrição comando Gestão HDCP da saída [x]. [x]=1~4: saída HDMI /%O/ALL:1. 1~4. [z]=0~1modo HDCP. [z]=0: HDCP Bypass. Saídas seguem o mesmo /%O/[x]:[z]. HDCP da entrada. /%O/ALL:1 [z]=1: HDCP 1.4. Qualquer que seja o conteúdo HDCP na entrada HDMI, o conteúdo HDCP de saída é...
ESPECIFICAÇÕES TÉCNICAS FO-22M44 CARACTERÍSTICAS Matriz HDMI 4 x 4 Resolução UHD 4K a 60 Hz e inferior Largura de banda 18 Gbps Compatível com HDR. Função EDID, seleciona automaticamente ou manualmente a resolução ideal para todas as TVs Função DOWN-SCALING para transformar resoluções de 4K para Full HD 1080p Memorize a última cena...
