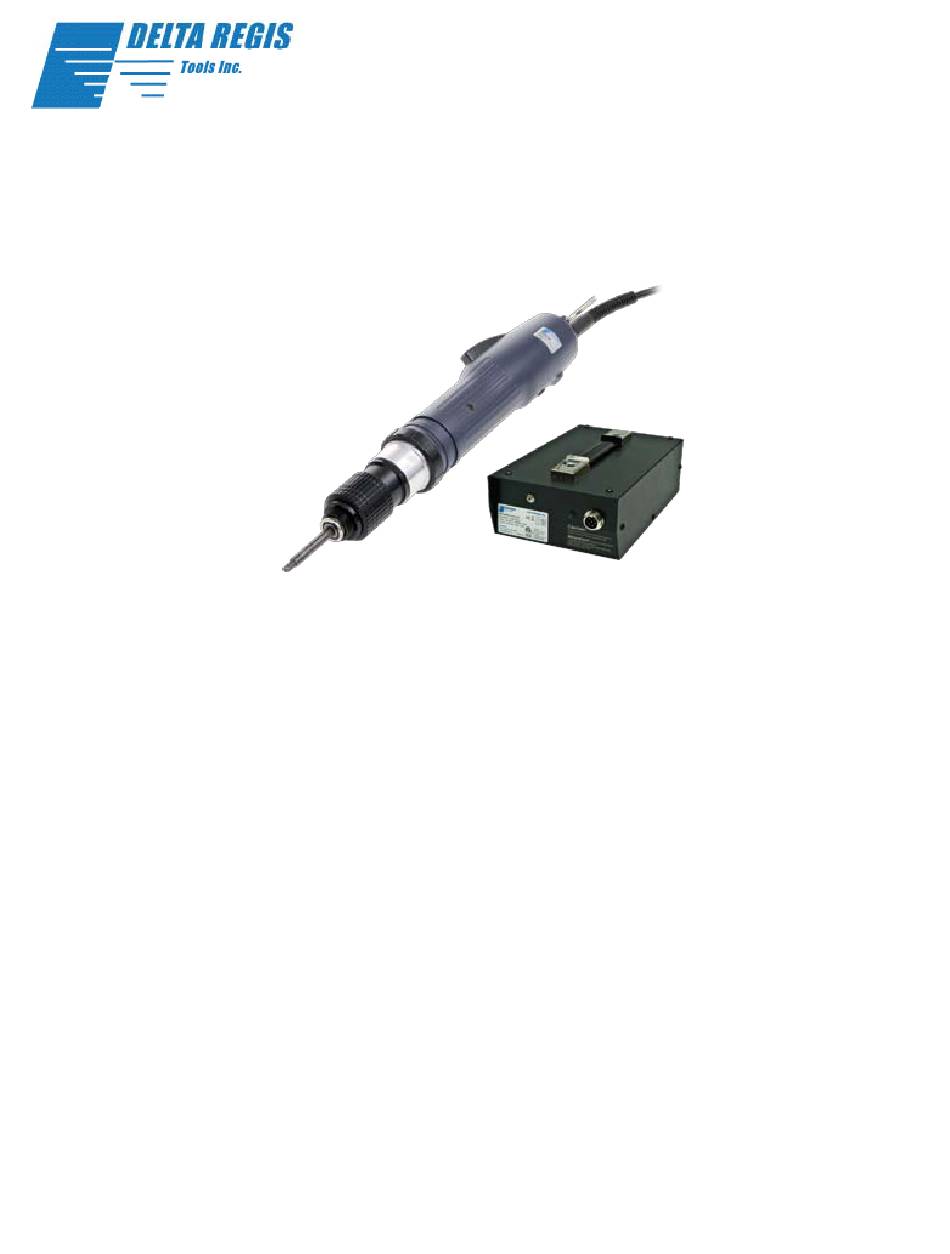

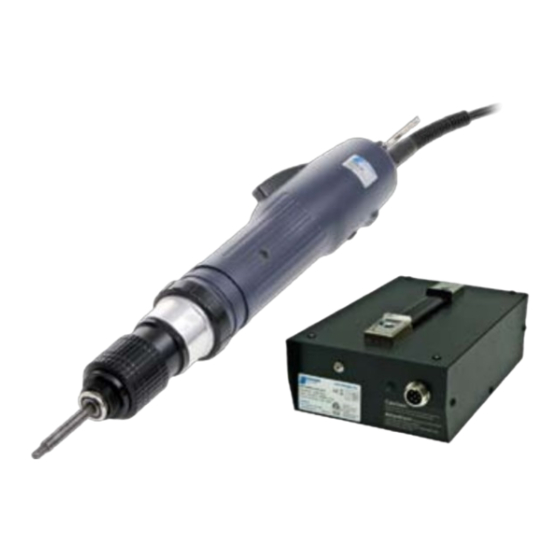

32V and 40VDC CESL(T)8 and CESL(T)9 Series Brushless
Screwdrivers and Controllers - Operation Manual
Applies to the following Delta Regis products:
32VDC Screwdriver Models:
40VDC Screwdriver Models:
32VDC Controller Models:
40VDC Controller Models:
CAUTION - Please read, understand, and follow all operating and safety instructions in this manual before using
the tools and controllers.
The CESL8 and CESL9 Series Brushless tools are designed for exclusive use with specific Delta Regis controllers
as defined in this manual. Do not attempt to use the tools and/or controllers with any products other than as
specified in this manual.
Delta Regis_CESL8&9/RA Series_M_R0.0
Copyright © 2015 Delta Regis Tools, Inc
CESL810(S)/811/812(-ESD), CESL823/824(F/P/PF)(-ESD)(/RA), CESL827 (B)(P)(-ESD)(/RA)
CESL828/829(F/P/PF)(-ESD)(/RA), CESL T 835M/845M/855M/865M(PM)(-ESD)(-SQ) (/RA)
CESL T875M(PM)(-SQ)(/RA)/885M/895M(PM)(-SQ)
CESP(T)835/845/855/865(-SQ)(-U)
CESLT935(F/P/PF)(-ESD)(-SQ), CESLT945/955(P)(-ESD)(-SQ)
BECT620N/820N (E)(UK)
BECT640NHL/940(N)HL (E)(UK)
If you have any questions or concerns,
please contact us at:
Delta Regis Tools, Inc.
7370 Commercial Circle
Fort Pierce, FL USA 34951
Ph +1-772-465-4302
Fx +1-772-465-4368
E-mail: sales@deltaregis.com
Advertisement
Related Manuals for Delta Regis CESLT9 Series
Summary of Contents for Delta Regis CESLT9 Series
- Page 1 The CESL8 and CESL9 Series Brushless tools are designed for exclusive use with specific Delta Regis controllers as defined in this manual. Do not attempt to use the tools and/or controllers with any products other than as specified in this manual.
- Page 2 Specific models of Delta Regis BECT series controller are designated for use with CESL8 and CESL9 series screwdrivers as specified on the following pages. Use of the controller (or screwdriver) with any other screwdriver (or controller) may result in malfunction, damage, or injury.
- Page 3 CESL8/9 Series Operation Manual Setting up your screwdriver and controller Unpack the tool and controller from their boxes and confirm that all items have been received and are in good condition. The controller is shipped with the appropriate grounded power cord for connection to the AC supply receptacle.
-
Page 4: Setting The Torque
CESL8/9 Series Operation Manual Before you turn on the controller 600 Series Insert the desired screwdriver bit into the quick change holder of the driver. For tools with 1/4” hex bit holders, insert the desired driver bit by pushing (or pulling, depending on the model) the outer sleeve of the bit holder to release the retainer. - Page 5 CESL8/9 Series Operation Manual Start Lever Torque Adjusting Nut Press to start the Turn CW to increase torque setting, CCW to decrease screwdriver and hold torque output. Higher values on scale indicate a until the driver shuts higher torque setting. off (CW tightening).
- Page 6 CESL8/9 Series Operation Manual Model Numbers and Specifications - 40VDC CESL8 Screwdrivers Start Range Range Drive Model Number Type (In.Lbs) (Nm) Speed (RPM) Type Inline Body Style, Handheld CESL828 Lever 8.9 - 26.0 0.98 - 2.94 1000 / 750 1/4” hex CESL828F Lever 8.9 - 26.0...
- Page 7 CESL8/9 Series Operation Manual Model Numbers and Specifications - 40VDC CESL9 Screwdrivers Start Range Range Drive Model Number Type (In.Lbs) (Nm) Speed (RPM) Type Inline Body Style, Handheld or Fixture Mount 3/8” SQUARE DRIVE CESLT935 Lever 18 - 53 2 - 6 1000 / 750 1/4”...
-
Page 8: Accessories And Parts
Delta Regis offers various accessories for use with the screwdrivers listed in this manual. Please contact us or visit our website for further details on available accessories. If you require a parts drawing or replacement spare parts for your Delta Regis product, please call us or send an e-mail request to sales@deltaregis.com. -
Page 9: Torque Adjustment
DELTA REGIS CESLT8_M/RAS ANGLE DRIVER Tools Inc. Torque Adjustment Overview Right angle screwdriver models CESLT835M/RAS - CESLT875M/RAS incorporate a torque adjustment nut which is protected by a metal cover. Two capscrews are installed into the adjustment nut to lock the setting and prevent the angle head from loosening off during use. - Page 10 DELTA REGIS CESLT8_M/RAS ANGLE DRIVER Tools Inc. Torque Adjustment Remove the locking screws and torque cover • Using the supplied hex key, remove the two locking cap screws (180 degrees apart) from the front of the torque adjusting nut. Once the cap screws are removed, unscrew the torque adjustment cover by hand and remove.
