DELTA REGIS
Tools Inc.

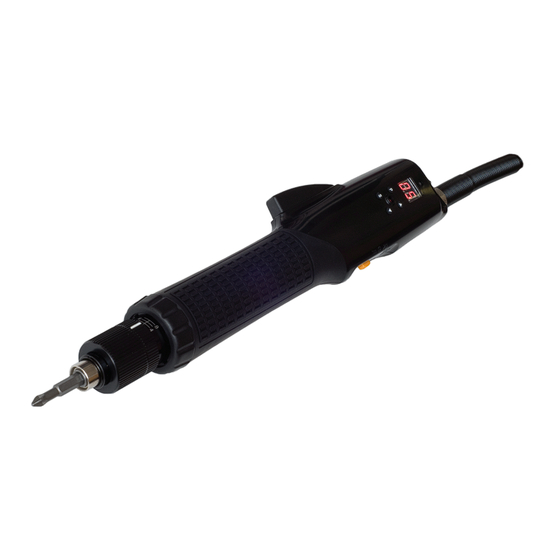

ICESL6 Screwdrivers with Internal Counter
CAUTION - Please read, understand, and follow all operating and safety instructions in
this manual before using the ICESL6 Series Screwdrivers and Controllers.
Applies to the following Screwdriver Models:
ICESL623, ICESL623P, ICESL623F, ICESL623PF, ICESL624, ICESL624P (-ESD)
ICESL628, ICESL628P, ICESL628F, ICESL628PF, ICESL629, ICESL629P (-ESD)
Applies to the following Controller Models:
BECT620C, BECT620IC, BECT640HL
Do not attempt to use these screwdrivers with power supplies/controllers other than as
specified in this manual.
If you have any questions or concerns, please contact us at:
Delta Regis Tools, Inc.
3315 Industrial 25th St.
Ft. Pierce FL 34946
USA
Doc. ICESL6_Manual_R0
Copyright © 2013 Delta Regis Tools, Inc
Operation Manual
Ph +1-772-465-4302
Fx +1-772-465-4368
E-mail: sales@deltaregis.com
Website: www.deltaregis.com
Advertisement
Table of Contents
Related Manuals for Delta Regis ICESL6
Summary of Contents for Delta Regis ICESL6
- Page 1 ICESL6 Screwdrivers with Internal Counter Operation Manual CAUTION - Please read, understand, and follow all operating and safety instructions in this manual before using the ICESL6 Series Screwdrivers and Controllers. Applies to the following Screwdriver Models: ICESL623, ICESL623P, ICESL623F, ICESL623PF, ICESL624, ICESL624P (-ESD)
- Page 2 The ‘BECT6’ series controllers are for use exclusively with Delta Regis brand screwdrivers as specified on the following pages. Use of the controller (or screwdriver) with any other screwdriver (or controller) may result in malfunction, damage, or injury.
- Page 3 DELTA REGIS ICESL623-629 Screwdriver Tools Inc. Operation Manual Model Numbers and Specifications ICESL6 Drivers with Internal Counter Speed (RPM) Length Grip Dia. Weight Use with Power Model Number Start Type Range In.Lbs Range Nm Hi / Lo in / mm...
-
Page 4: Getting Started
Getting Started Connect the 6-pin cable of the ICESL6 Series Screwdriver into a compatible Delta Regis controller. Please see the screwdriver model chart on the preceeding page for proper power supply/controller selection. Ensure that the cable is installed in the proper orientation (spring guard at tool end) and that the connectors are seated properly with the fastening rings secured. -
Page 5: Adjusting Torque
DELTA REGIS ICESL623-629 Screwdriver Tools Inc. Operation Manual Operating the Screwdriver Grip the screwdriver firmly and engage the screwdriver bit into the head of the fastener. Keeping the bit in-line with the fastener, apply an appropriate amount of downward force and start the screwdriver (lever or push). Hold the trigger until the fastener seats and the clutch automatically shuts off the driver. - Page 6 DELTA REGIS ICESL623-629 Screwdriver Tools Inc. Program Options and Editing SEQUENCE NUMBER (SL) There are 5 programmable screw fastening sequences (SL=’U1’ to ‘U5’) available. In many cases, only the first sequence (U1) will be needed. If the screwdriver is used to install a batch of fasteners with varying requirements, multiple sequences may be necessary.
- Page 7 DELTA REGIS EDIT PROGRAM SL = Sequence List Number Press and hold Tools Inc. Adjust value S button for 3 ICESL623-629 UP / DOWN seconds until ‘SL’ (U1 - U5, UU) displays. Release to view programmed NOTES / GUIDELINES: 5 available sequences, UU = looping function value.
- Page 8 DELTA REGIS ICESL623-629 Screwdriver Tools Inc. Operation Manual Audible Alarm Settings / OK and NG Lights Along with the two digit count display, the screwdriver also provides visual and audible indication of rundown OK, rundown NG, and batch complete. The multi-color LED above the display illuminates green for OK and red for NG (no good) to indicate whether the fastening cycle was acceptable based on the programmed parameters.
- Page 9 DELTA REGIS ICESL623-629 Screwdriver Tools Inc. Operation Manual Clear / Reset Batch Count While the screwdriver is in the normal operational mode, the batch count value can be reset to start a new batch by pressing and holding the ‘P’ button for 3 seconds. The software keypad lock must be off (Un) in order for the P button to function.
-
Page 10: Display Codes
Do not attempt to modify the tools or controllers. Warranty The ICESL6 Series Tools and Controllers are warranted for one year from the date of purchase against defects in material and workmanship. In addition, the brushless motor in the ICESL6 Series Screwdrivers is warranted for three years from the date of purchase against defects in material and workmanship.
