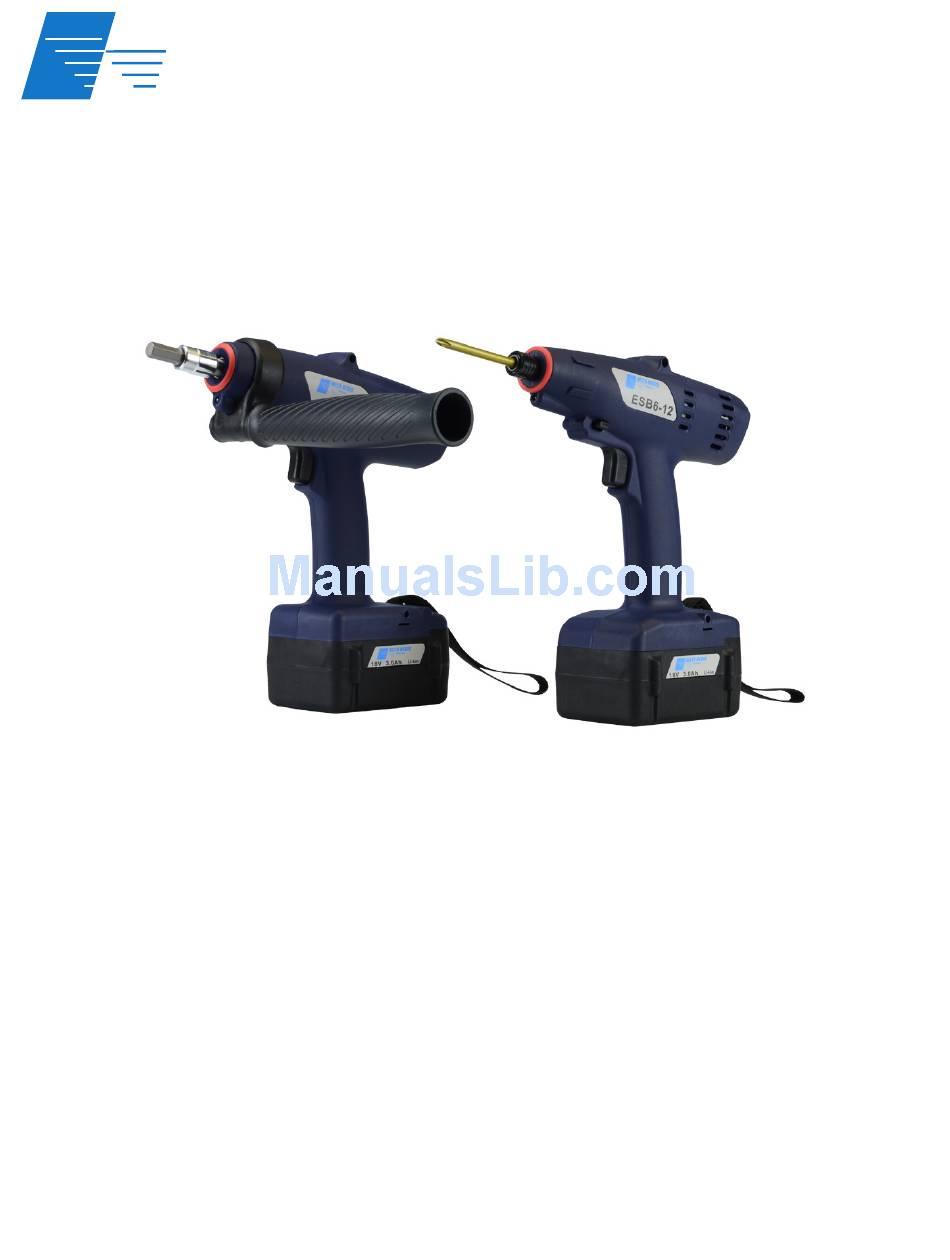

DELTA REGIS
Tools Inc.

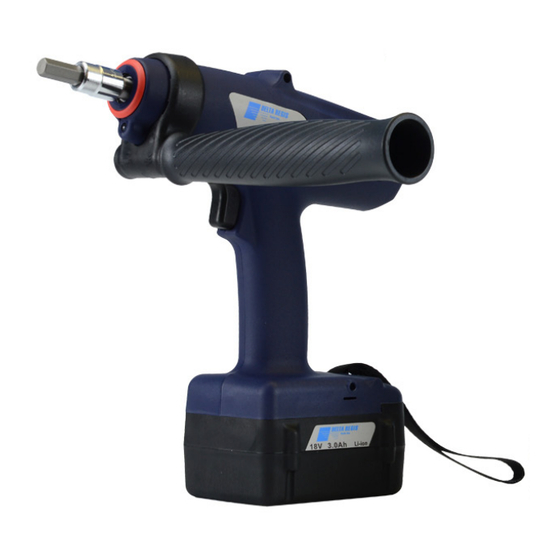

18VDC ESB6 Series
Cordless Screwdrivers
Operation Manual
Screwdriver Models :
CAUTION - Please read, understand, and follow all operating and safety instructions in
this manual before using the tools.
The 18VDC ESB6 Series Cordless Electric Screwdrivers are designed for exclusive use
with specific Delta Regis batteries and battery chargers as defined in this manual. Do not
attempt to use the tools, batteries and/or battery chargers with any products other than
as specified in this manual.
If you have any questions or concerns, please contact us at:
Delta Regis Tools, Inc.
3315 Industrial 25th St.
Ft. Pierce FL 34946
USA
Doc. 18V_ESB6_Series_Manual_R0
Copyright © 2014 Delta Regis Tools, Inc
ESB6-8, ESB6-12, ESB6-15, ESB6-22
Ph +1-772-465-4302
Fx +1-772-465-4368
E-mail: sales@deltaregis.com
Website: www.deltaregis.com
Advertisement
Table of Contents
Related Manuals for Delta Regis ESB6-8
Summary of Contents for Delta Regis ESB6-8
- Page 1 The 18VDC ESB6 Series Cordless Electric Screwdrivers are designed for exclusive use with specific Delta Regis batteries and battery chargers as defined in this manual. Do not attempt to use the tools, batteries and/or battery chargers with any products other than as specified in this manual.
- Page 2 9. The ‘ESB-CHG’ series battery chargers are for use exclusively with Delta Regis brand 18VDC ‘ESB-18VL’ series lithium-ion batteries as specified on the following pages. Use of the battery charger (or battery) with any product not specified in this manual may result in malfunction, damage, or injury.
-
Page 3: Battery Chargers
Models with internal torque adjustment ESB6-8 4 - 8 36 - 70 1200 / 750 Batteries (1.5 or 3Ah): 214 x 197 ESB-18VL1500 (ESB6-8,12) (less battery) (less battery) ESB6-12 6 - 12 53 - 106 720 / 500 ESB-18VL3000 (ESB6-8,12,15,22) -
Page 4: Setting The Torque
DELTA REGIS 18V ESB6 Series Tools Inc. Operation Manual Quick Set-up and Operation Overview Tool shown without side handle for clarity. 1. Fully charge the battery using the battery charger before first use to achieve On higher torque applications, always install maximum fastening cycles. -
Page 5: Features Overview
DELTA REGIS 18V ESB6 Series Tools Inc. Operation Manual Features Overview Torque ID Ring Colored ring to help visually indicate tools capacity or torque setting. Start Trigger FWD/REV Switch Bit / Socket Holder Select the desired direction of Pull sleeve to insert/remove Pull to start the screwdriver and bits. - Page 6 DELTA REGIS 18V ESB6 Series Tools Inc. Operation Manual Inserting / Removing Power Bits Insert the desired driver bit into the quick change chuck of the screwdriver by pulling the outer sleeve of the bit holder to release the retainer. Verify that the bit is locked properly in position after installing. Please note, only use 1/4”...
-
Page 7: Side Handle Installation
DELTA REGIS 18V ESB6 Series Tools Inc. Operation Manual LEDs / Buzzer Rundown Status Indicator When the driver reaches the set torque and clutches out it will emit a short beep and the green rundown LED will flash once indicating an OK rundown. If the driver does not clutch out before the operator releases the trigger the driver will emit a long beep and the red rundown LED will flash once indicating a NG rundown. -
Page 8: Parts And Accessories
Tools Inc. Operation Manual Parts and Accessories If you require parts or accessories for your Delta Regis product, please refer to our website or contact us for further information. Service The ESB6 Series cordless electric screwdrivers, batteries and battery chargers are not user serviceable. Any repairs must be performed by a Delta Regis authorized service center.
