DELTA REGIS
Tools Inc.

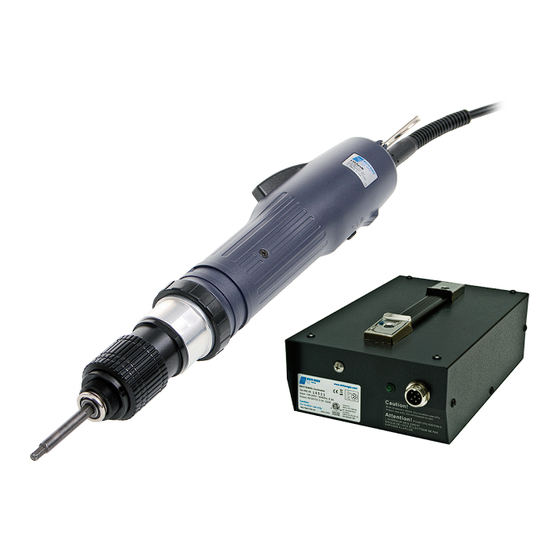

32V and 40VDC CESL8 and CESL9 Series Brushless
Screwdrivers and Controllers - Operation Manual
Applies to the following Delta Regis products:
32VDC Screwdriver Models:
40VDC Screwdriver Models:
32VDC Controller Models:
40VDC Controller Models:
CAUTION - Please read, understand, and follow all operating and safety instructions in this manual before using
the tools and controllers.
The CESL8 and CESL9 Series Brushless tools are designed for exclusive use with specific Delta Regis controllers
as defined in this manual. Do not attempt to use the tools and/or controllers with any products other than as
specified in this manual.
Doc. CESL8_Manual_R2
Copyright © 2023 Delta Regis Tools, Inc
CESL810(S)/811/812(P/S)(-ESD),
CESL823/824(F/P/PF/S)(-ESD), CESL827B(P)(-ESD)
CESL828/829(F/P/PF/S)(-ESD),
CESLT835M/845M/855M/865M/875M/885M/895M(PM)(-ESD)(-SQ)
CESP835/845/855/865(-SQ)(-U),
CESLT935(F/P/PF)(-ESD)(-SQ), CESLT945/955(P)(-ESD)(-SQ)
BECT620C/820
BECT640HL/940HL
If you have any questions or concerns,
please contact us at:
Delta Regis Tools, Inc.
7370 Commercial Circle
Fort Pierce, FL USA 34951
Ph +1-772-465-4302
Fx +1-772-465-4368
E-mail: sales@deltaregis.com
Advertisement
Related Manuals for Delta Regis CESL8 Series
Summary of Contents for Delta Regis CESL8 Series
- Page 1 The CESL8 and CESL9 Series Brushless tools are designed for exclusive use with specific Delta Regis controllers as defined in this manual. Do not attempt to use the tools and/or controllers with any products other than as specified in this manual.
- Page 2 10. Specific models of Delta Regis BECT series controller are designated for use with CESL8 and CESL9 series screwdrivers as specified on the following pages. Use of the controller (or screwdriver) with any other screwdriver (or controller) may result in malfunction, damage, or injury.
- Page 3 DELTA REGIS CESL8/9 Series Tools Inc. Operation Manual 20. We emphasize that the power supply should be placed on a flat surface and secured. The power supply label/ specifications are located on the bottom of the most models. Place on a flat surface and use a M4 x 20mm screw to align the anchor hole and secure it to the flat surface.
- Page 4 DELTA REGIS CESL8/9 Series Tools Inc. Operation Manual Setting up your screwdriver and controller Unpack the tool and controller from their boxes and confirm that all items have been received and are in good condition. The controller is shipped with the appropriate grounded power cord for connection to the AC supply receptacle.
-
Page 5: Setting The Torque
DELTA REGIS CESL8/9 Series Tools Inc. Operation Manual Before you turn on the controller 600 Series 600 Series Insert the desired screwdriver bit into the quick change holder of the driver. For tools with 1/4” hex bit holders, insert the desired driver bit by pushing (or pulling, depending on the model) the outer sleeve of the bit holder to release the retainer. - Page 6 DELTA REGIS CESL8/9 Series Tools Inc. Operation Manual Start Lever Torque Adjusting Nut Press to start the Turn CW to increase torque setting, CCW to decrease screwdriver and hold torque output. Higher values on scale indicate a until the driver shuts higher torque setting.
- Page 7 DELTA REGIS CESL8/9 Series Tools Inc. Operation Manual Model Numbers and Specifications - 40VDC CESL8 Screwdrivers Model Number Start Type Range (In.Lbs) Range (Nm) Speed (RPM) Drive Type Inline Body Style, Handheld CESL828 Lever 8.9 - 26.0 0.98 - 2.94 1000 / 750 1/4”...
- Page 8 DELTA REGIS CESL8/9 Series Tools Inc. Operation Manual Model Numbers and Specifications - 40VDC CESL9 Screwdrivers Start Range Range Drive Model Number Type (In.Lbs) (Nm) Speed (RPM) Type Inline Body Style, Handheld or Fixture Mount 3/8” SQUARE DRIVE CESLT935 Lever...
-
Page 9: Accessories And Parts
Delta Regis offers various accessories for use with the screwdrivers listed in this manual. Please contact us or visit our website for further details on available accessories. If you require a parts drawing or replacement spare parts for your Delta Regis product, please call us or send an e-mail request to sales@deltaregis.com.
